BR 53/40 99585

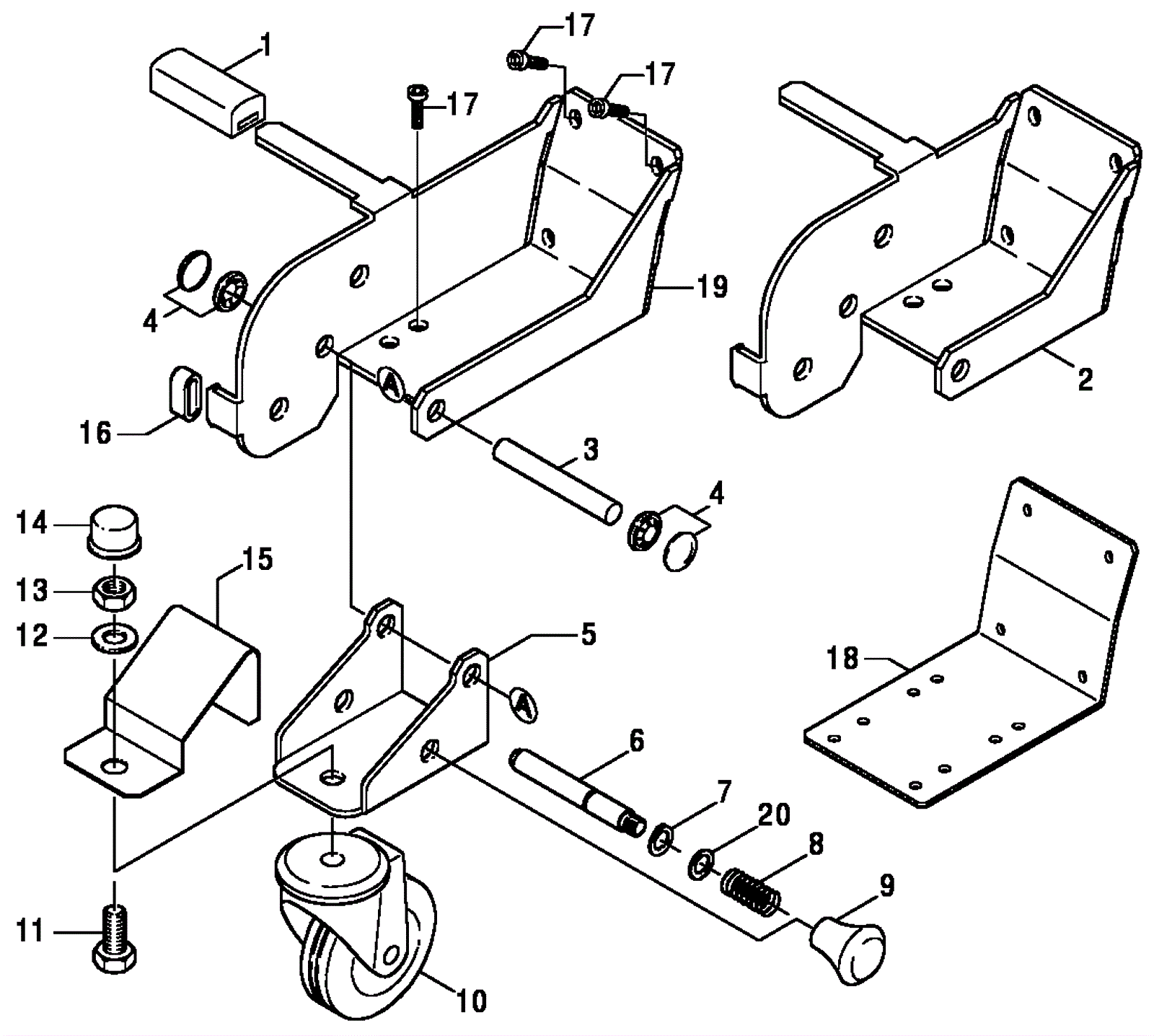

Front Caster Wheel Assembly - Disk
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
1
183-0460
Handle
$6.62
1
usually ships 9-20 days
2
183-0475
Bracket
$350.17
1
usually ships 9-20 days
3
183-0467
Axle
$23.76
1
usually ships 9-20 days
4
183-0457
Quick fastener
$1.23
2
usually ships 9-20 days
5
183-0461
Bracket
$19.48
1
usually ships 9-20 days
6
183-0468
Bolt
$19.76
1
usually ships 9-20 days
7
183-0196
Washer lock
$1.23
1
usually ships 1-5 days
8
183-7556
Helical spring
$4.58
1
usually ships 1-5 days
9
183-0456
Button (OBSOLETE)
Call for price
1
usually ships 9-20 days
10
183-4708
Caster
$19.92
1
usually ships 9-20 days
11
183-0476
Screw
$1.23
1
usually ships 9-20 days
12
183-0459
Washer
$1.23
1
usually ships 9-20 days
13
183-0463
Hex nut
$4.12
1
usually ships 9-20 days
14
183-0464
Cap
$2.52
1
usually ships 9-20 days
15
183-7557
Covering cap
$141.08
1
usually ships 1-5 days
16
183-0465
Tube
$24.08
1
usually ships 9-20 days
17
183-0477
Screw
$21.15
4
usually ships 9-20 days
18
183-0478
Template (OBSOLETE)
Call for price
1
usually ships 9-20 days
19
183-0479
Bracket (OBSOLETE)
Call for price
1
usually ships 9-20 days
20
183-7555
Joint ring
$1.23
1
usually ships 1-5 days
