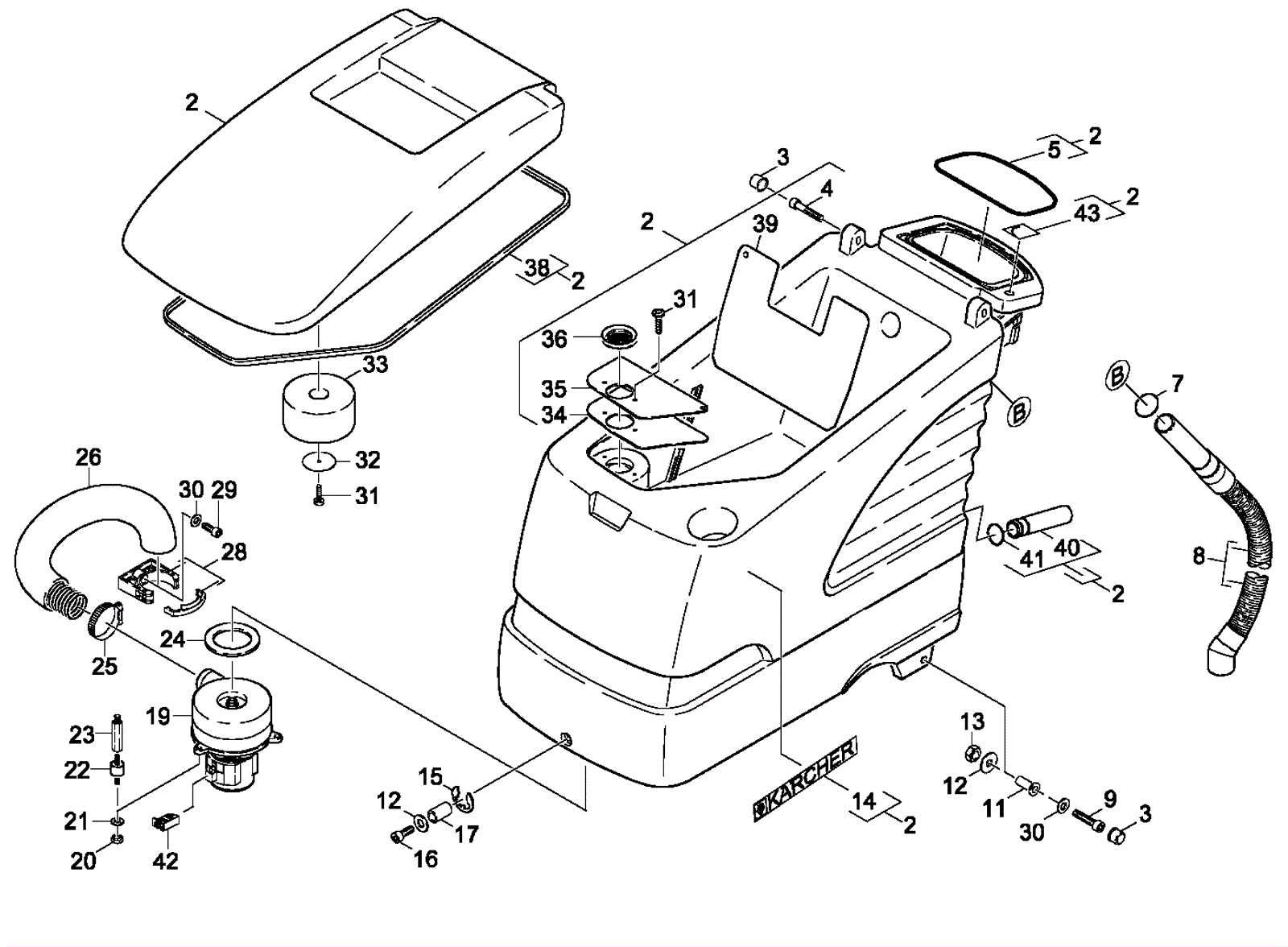

Recovery Tank Assembly

#PartDescription ReqNotesAvailability
2 183-0068 Housing with cover 1 (2 includes 2, 4, 5, 14, 31, 34, 35, 36, 38, 39, 40, 41, 43)
3 183-0087 Protecting cap 4
4 183-0085 Cheese head screw 2
5 183-0128 Cellular rubber cord 1
7 183-0094 Gasket 1
8 183-0086 Suction/squeegee hose assembly 1
9 183-0213 Cheese head screw 2
11 183-0217 Sleeve 2
13 183-0218 Hex nut 2
14 373-2088 Decal 2
15 183-0090 Washer lock 1
16 183-0084 Screw 1
17 183-0089 Sleeve 1
19 183-0080 24V vacuum motor (OBSOLETE) 1
20 183-0079 Hex nut 3
21 183-0091 Washer 3
22 183-0078 Rubber buffer 3
23 183-0077 Bolt 3
24 183-0474 Joint ring gasket 1
25 997-2006 Hose clamp 1
26 183-0082 Sound proof hose 1
28 183-0092 Pipe clip 1
29 183-0093 Screw M6-1 x 16mm 1
30 183-0099 Washer 4
31 183-0075 Screw 5-16 x 10.9mm 3
32 183-0074 Washer 1
33 183-0073 Float 1
34 183-0098 Seal 1
35 183-0097 Plate (OBSOLETE) 1
36 183-0072 Joint ring 1
38 183-0071 Sealing profile recovery tank seal (Sold by the inch) 2
39 183-0095 Plate 1
40 183-0101 Pipe 1
41 183-0100 Gasket 2
42 183-0103 Carbon brush set (Obsolete) 1
43 183-0113 Decal (Obsolete) 1
