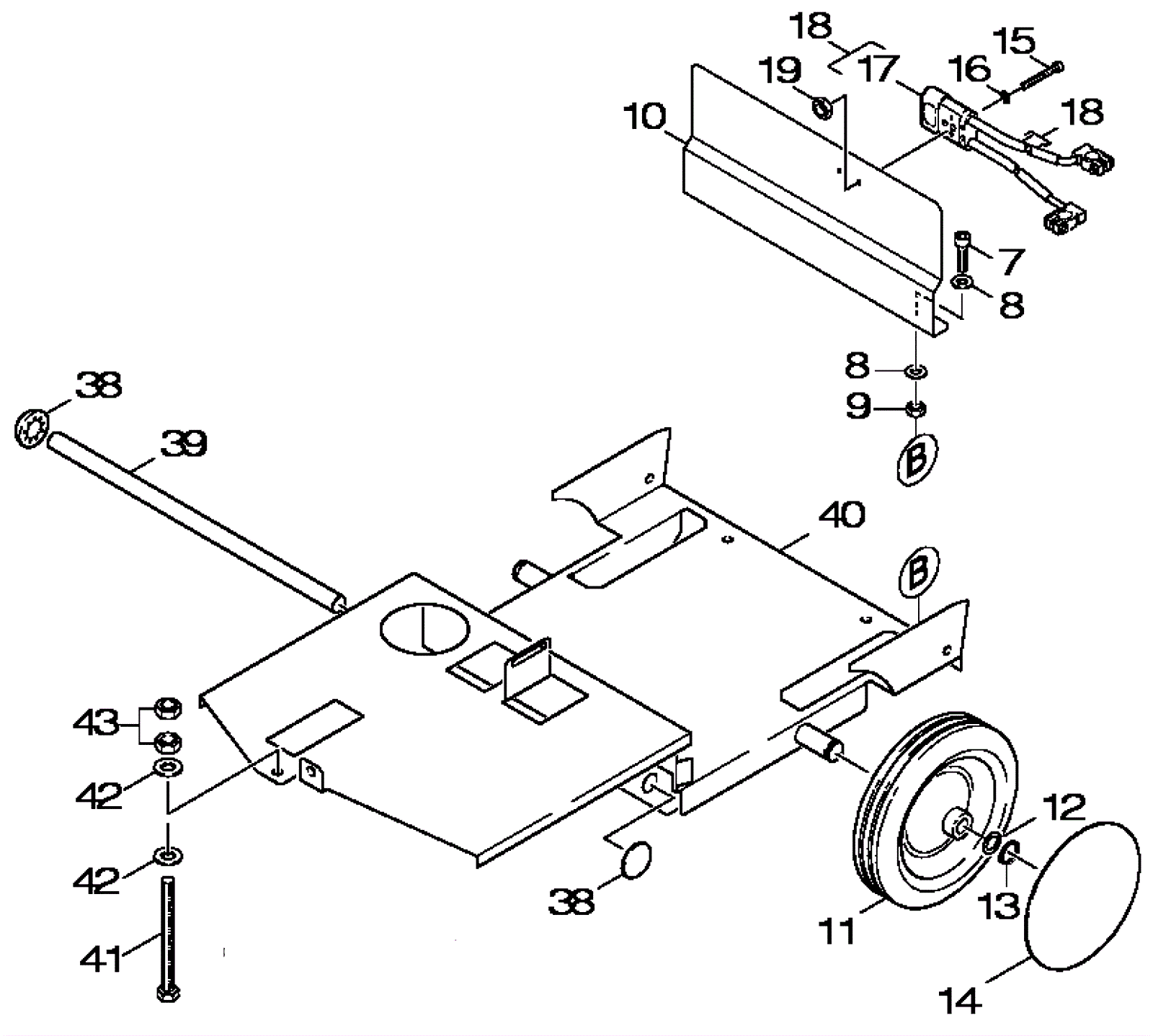

BR 53/40 99585 Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
7 183-0236 Screw $0.62 2 usually ships 8-21 days
8 183-0237 Washer $2.10 8 usually ships 1-5 days
9 183-0079 Hex nut $1.35 2 usually ships 1-5 days
10 183-0242 Angle $27.51 1 usually ships 1-5 days
11 183-0257 Wheel $50.59 2 usually ships 1-5 days
12 183-0256 Washer $11.29 2 usually ships 1-5 days
13 183-0258 Spring clip $1.35 2 usually ships 1-5 days
14 183-0229 Wheel cab $6.01 2 usually ships 1-5 days
15 183-0244 Screw $1.35 2 usually ships 1-5 days
16 183-0243 Washer $2.04 2 usually ships 1-5 days
17 183-0246 Plug $55.12 1 usually ships 1-5 days
18 183-0245 Charger plug and cable assembly (batteries to charger plug) $189.57 1 usually ships 1-5 days
19 183-0233 Hex nut $1.35 2 usually ships 1-5 days
38 183-0219 Washer lock $5.31 2 usually ships 1-5 days
39 183-0220 Axle (Obsolete) $11.40 1 usually ships 1-5 days
40 183-0234 Bracket (Obsolete) $478.71 1 usually ships 1-5 days
41 183-0406 Hex screw $4.03 1 usually ships 1-5 days
42 183-0099 Washer $1.35 2 usually ships 1-5 days
43 183-0469 Hex nut (OBSOLETE) Call for price 3 usually ships 8-21 days
