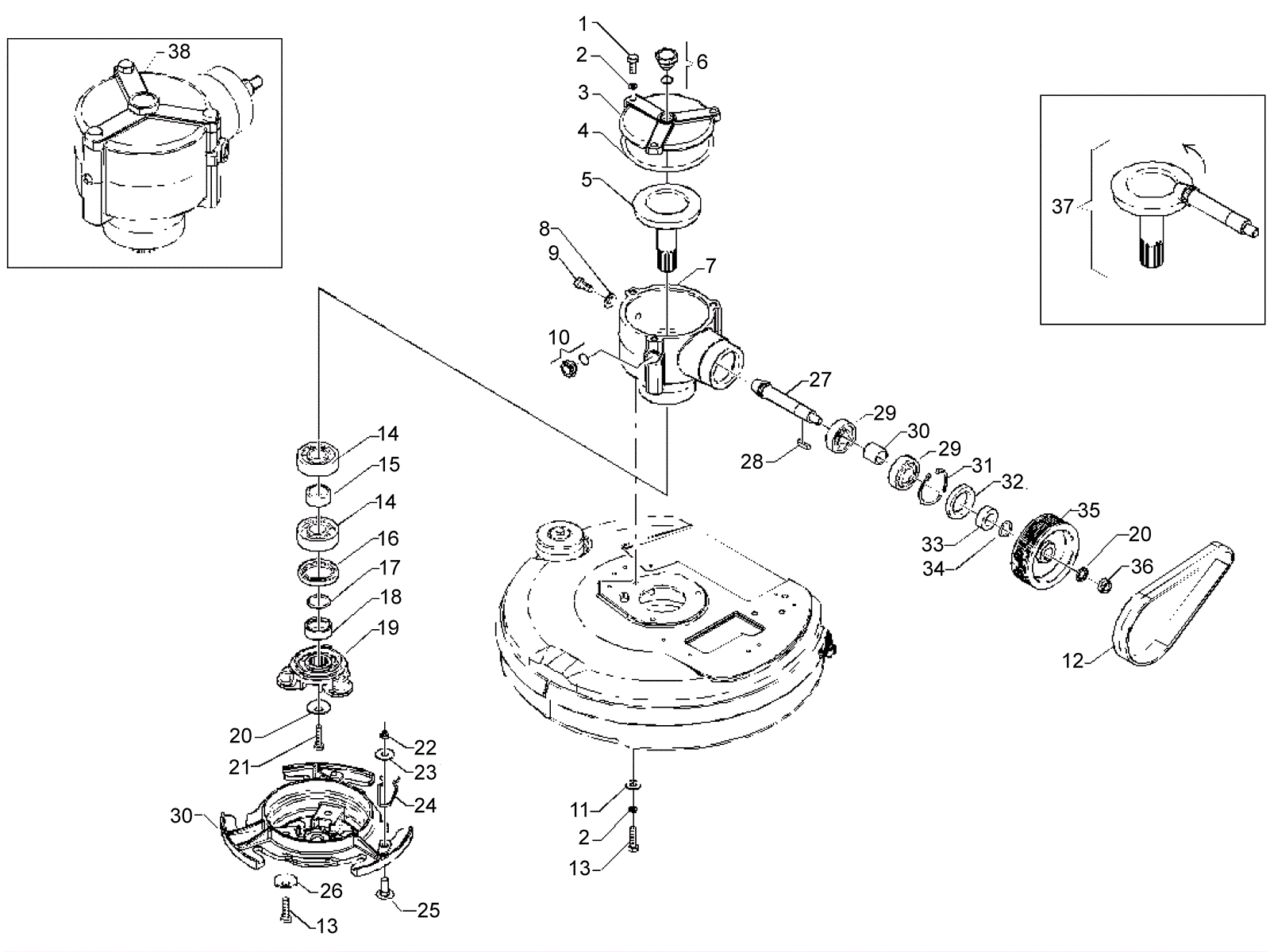

BD 20/11 Transmission Assembly before sn 1004125/ after 1999

#PartDescriptionPriceReqNotesAvailability
1 183-2473 Screw M8 x 20mm $1.54 1 usually ships 15-28 days
3 183-2474 Reduction gear box cover $25.17 1 usually ships 15-28 days
4 183-2475 O-ring $1.98 1 usually ships 15-28 days
5 183-2505 Crown gear (OBSOLETE) Call for price 1 usually ships 15-28 days
6 183-2476 Cap with breather $4.71 1 usually ships 15-28 days
7 183-2477 Reduction gear box $209.53 1 usually ships 15-28 days
8 183-2478 Washer aluminium $1.54 1 usually ships 15-28 days
9 183-2479 Screw M10 x 20mm $2.20 1 usually ships 15-28 days
10 183-2480 Oil level plug $4.92 1 usually ships 15-28 days
11 183-8294 Washer $1.54 1 usually ships 15-28 days
12 183-2481 Belt poly $56.80 1 usually ships 15-28 days
13 183-8300 Screw M8 x 25 $1.54 2 usually ships 15-28 days
14 183-2482 Bearing $20.70 2 usually ships 15-28 days
15 183-2483 Spacer $15.88 1 usually ships 15-28 days
16 183-2484 Oil seal $5.64 1 usually ships 15-28 days
17 183-2485 O-ring $1.54 1 usually ships 15-28 days
18 183-2486 Spacer $53.45 1 usually ships 15-28 days
19 183-2487 Reduction gear flange $30.39 1 usually ships 15-28 days
20 183-2488 Conical washer $1.54 2 usually ships 15-28 days
21 183-2489 Screw M10 x 20mm $1.54 1 usually ships 15-28 days
22 183-2506 Lock nut $0.99 1 usually ships 15-28 days
24a 183-2508 Brush block spring $6.37 1 usually ships 15-28 days
24b 183-2490 Brush block spring $6.48 1 usually ships 15-28 days
25 183-8254 Screw M6 x 16 $1.54 1 usually ships 15-28 days
26 183-8415 Conical washer $1.54 1 usually ships 15-28 days
27 183-2491 Pinion (OBSOLETE) Call for price 1 usually ships 15-28 days
28 183-8521 Key $4.61 1 usually ships 15-28 days
29 183-2492 Bearing $19.94 2 usually ships 15-28 days
30 183-2493 Spacer $11.13 1 usually ships 15-28 days
31 183-2494 Seeger ring $1.76 1 usually ships 15-28 days
32 183-2495 Oil seal $4.58 1 usually ships 15-28 days
33 183-2496 Spacer $38.30 1 usually ships 15-28 days
34 183-2497 O-ring $1.54 1 usually ships 15-28 days
35 183-2498 Driven pulley (OBSOLETE) Call for price 1 usually ships 15-28 days
36 183-2499 Lock nut $1.54 1 usually ships 15-28 days
37 183-2500 Bevel gear pair (OBSOLETE) Call for price 1 usually ships 15-28 days
38 183-2501 Reduction gear assembly (OBSOLETE) Call for price 1 usually ships 15-28 days
39 183-2507 Brushholder plate $62.37 1 usually ships 15-28 days
