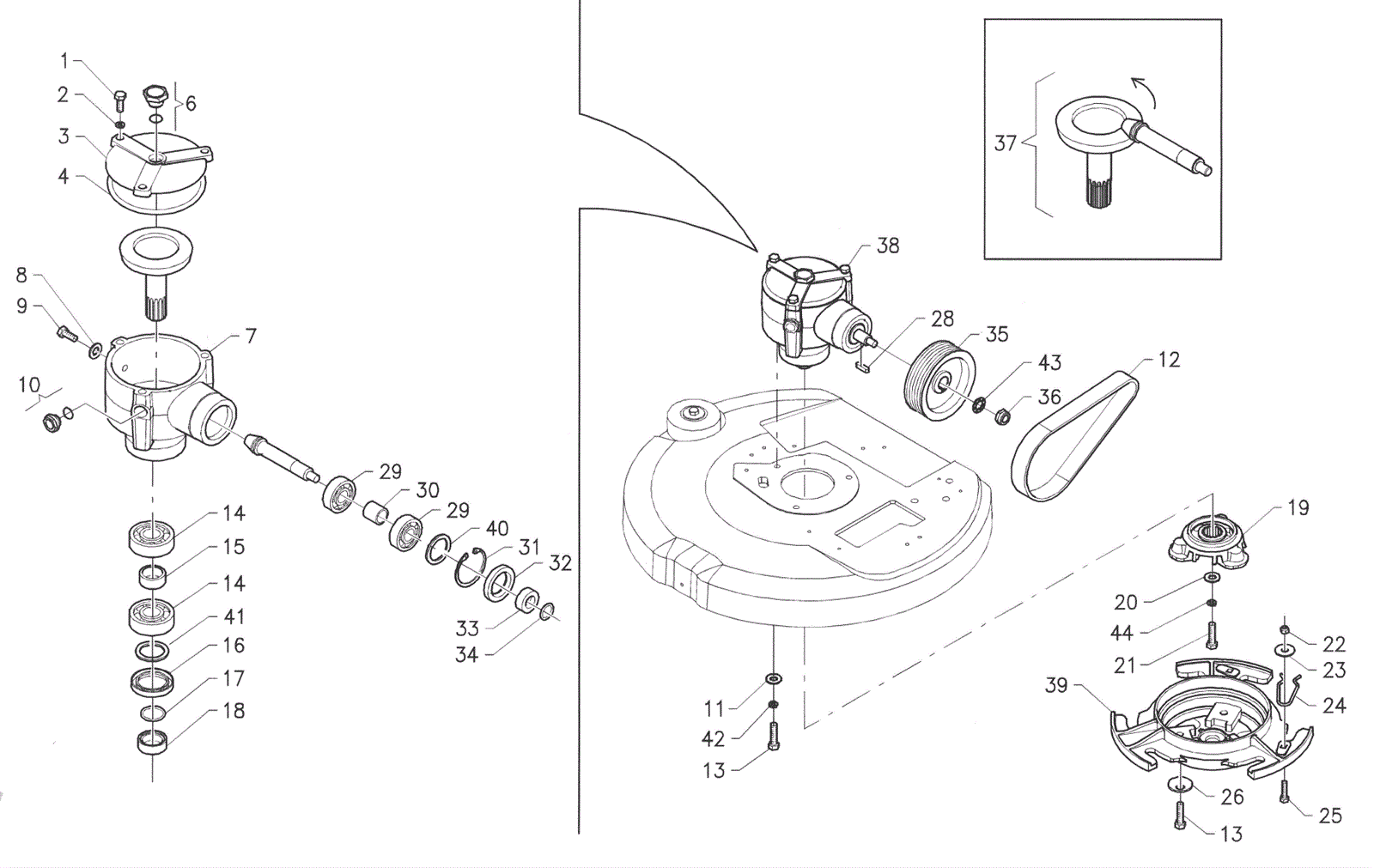

BD 20/11 Transmisson Assembly after sn 1004124/ after 1999

#PartDescriptionPriceReqNotesAvailability
1 183-2473 Screw M8 x 20mm $1.23 1 usually ships 8-21 days
3 183-2474 Reduction gear box cover $22.88 1 usually ships 8-21 days
4 183-2475 O-ring $1.75 1 usually ships 8-21 days
6 183-2476 Cap with breather $5.00 1 usually ships 8-21 days
7 183-2477 Reduction gear box $190.48 1 usually ships 8-21 days
8 183-2478 Washer aluminium $1.23 1 usually ships 8-21 days
9 183-2479 Screw M10 x 20mm $1.85 1 usually ships 8-21 days
10 183-2480 Oil level plug $5.00 1 usually ships 8-21 days
11 183-8294 Washer $1.23 1 usually ships 8-21 days
12 183-2481 Belt poly $51.64 1 usually ships 8-21 days
13 183-8300 Screw M8 x 25 $1.23 1 usually ships 8-21 days
14 183-2482 Bearing $18.82 2 usually ships 8-21 days
15 183-2483 Spacer $14.44 1 usually ships 8-21 days
16 183-2484 Oil seal $5.13 1 usually ships 8-21 days
17 183-2485 O-ring $1.23 1 usually ships 8-21 days
18 183-2486 Spacer $48.59 1 usually ships 8-21 days
19 183-2487 Reduction gear flange $27.63 1 usually ships 8-21 days
20 183-2488 Conical washer $1.23 1 usually ships 8-21 days
21 183-2489 Screw M10 x 20mm $1.23 1 usually ships 8-21 days
22 183-8256 Nut $1.23 1 usually ships 8-21 days
24 183-2490 Brush block spring $5.89 1 usually ships 8-21 days
25 183-8526 Screw M6 x 14 $1.23 1 ships same day
26 183-8415 Conical washer $1.23 1 usually ships 8-21 days
27 183-2491 Pinion (OBSOLETE) Call for price 1 usually ships 8-21 days
28 183-8521 Key $5.00 1 usually ships 8-21 days
29 183-2492 Bearing $18.13 2 usually ships 8-21 days
30 183-2493 Spacer $10.12 1 usually ships 8-21 days
31 183-2494 Seeger ring $1.44 1 usually ships 8-21 days
32 183-2495 Oil seal $4.99 1 usually ships 8-21 days
33 183-2496 Spacer $34.82 1 usually ships 8-21 days
34 183-2497 O-ring $1.23 1 usually ships 8-21 days
35 183-2498 Driven pulley (OBSOLETE) Call for price 1 usually ships 8-21 days
36 183-2499 Lock nut $1.23 1 usually ships 8-21 days
37 183-2500 Bevel gear pair (OBSOLETE) Call for price 1 usually ships 8-21 days
38 183-2501 Reduction gear assembly (OBSOLETE) Call for price 1 usually ships 8-21 days
39 183-4721 Clutch plate $32.00 1 usually ships 8-21 days
40 183-2502 Shim (OBSOLETE) Call for price 1 usually ships 8-21 days
41 183-2503 Shim (OBSOLETE) Call for price 1 usually ships 8-21 days
42 183-8286 Washer INOX $1.23 1 usually ships 8-21 days
43 183-2504 Washer $1.23 1 usually ships 8-21 days
44 183-2454 Lock washer inox $1.23 1 usually ships 8-21 days
