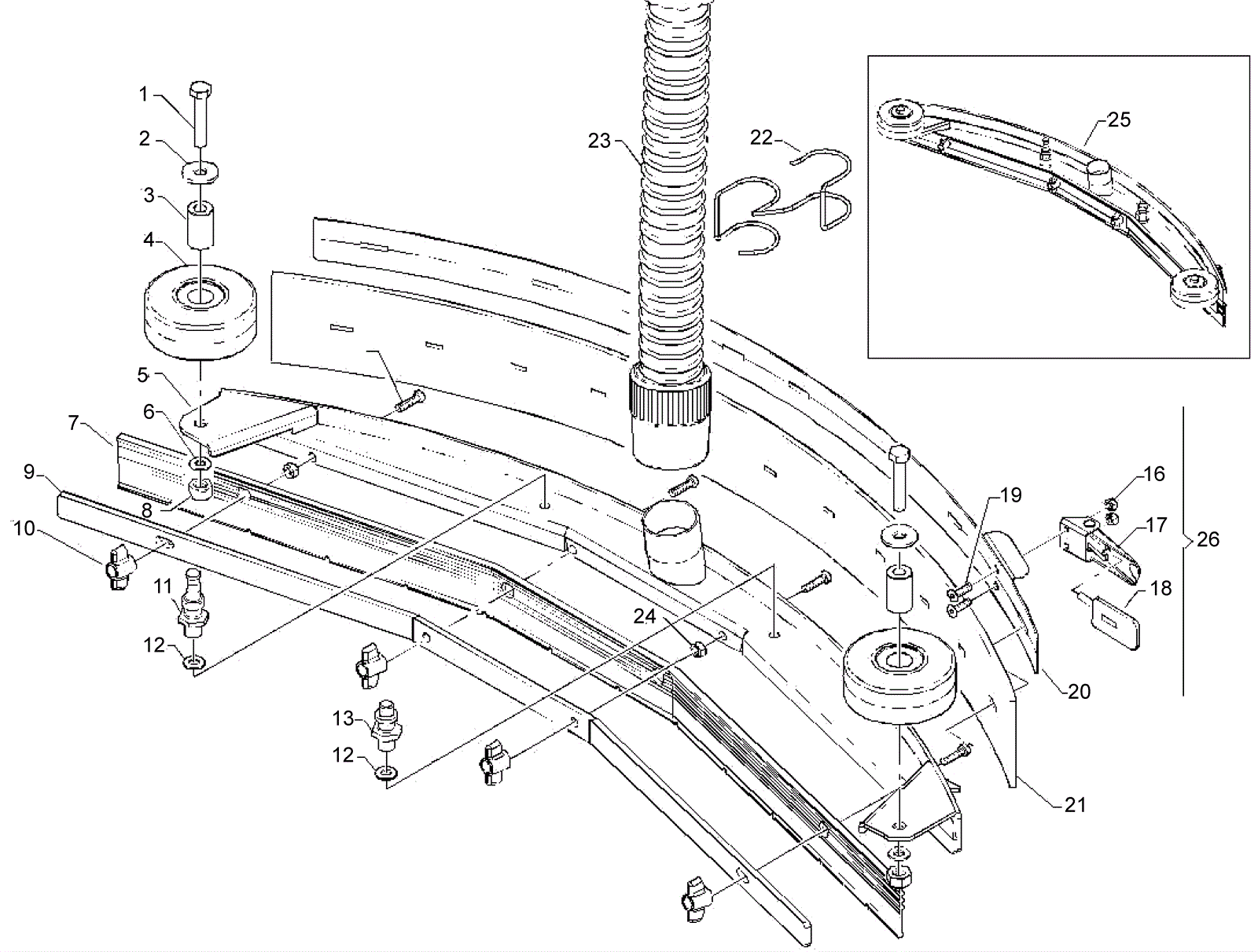

BD 20/11 Squeegee Assembly before 10002662/ after 1999

#PartDescriptionPriceReqNotesAvailability
1 183-8496 Screw M8 x 45 $1.23 2 usually ships 8-21 days
3 183-8498 Bushing $7.82 2 usually ships 8-21 days
4 183-4706 Bumper wheel $8.72 2 usually ships 8-21 days
5 183-8499 Squeegee weldment $227.60 1 usually ships 8-21 days
6 183-8307 Washer $4.70 2 usually ships 8-21 days
7 183-9019 Squeegee blade front $36.68 1 ships same day
9 183-8500 Front squeegee blade $25.22 1 usually ships 8-21 days
10 183-2305 Wing nut $4.24 4 usually ships 8-21 days
11 183-8501 Bolt $28.58 1 usually ships 8-21 days
12 183-8502 Washer (Obsolete) Call for price 2 usually ships 8-21 days
13 183-8503 Bolt (OBSOLETE) Call for price 1 usually ships 8-21 days
15 183-8319 Screw M6 x 18 $1.23 4 usually ships 8-21 days
16 183-8357 Nut $1.23 2 usually ships 8-21 days
17 183-8504 Lever $26.26 1 usually ships 8-21 days
18 183-8505 Adjustment bracket $14.65 1 usually ships 8-21 days
19 183-8506 Screw $1.23 2 usually ships 8-21 days
20 183-8507 Rear squeegee strap $57.43 1 usually ships 8-21 days
21 183-9020 Squeegee blade rear $43.71 1 ships same day
22 183-8508 Spring $11.86 1 usually ships 8-21 days
23 183-2290 Squeegee hose $45.57 1 ships same day
24 183-8214 Nut $0.31 2 usually ships 8-21 days
25 183-4735 Aluminum squeegee assembly $514.12 1 (includes 1-26) usually ships 8-21 days
26 183-8509 Squeegee attachment assembly $111.00 1 (includes 16-18) usually ships 8-21 days
