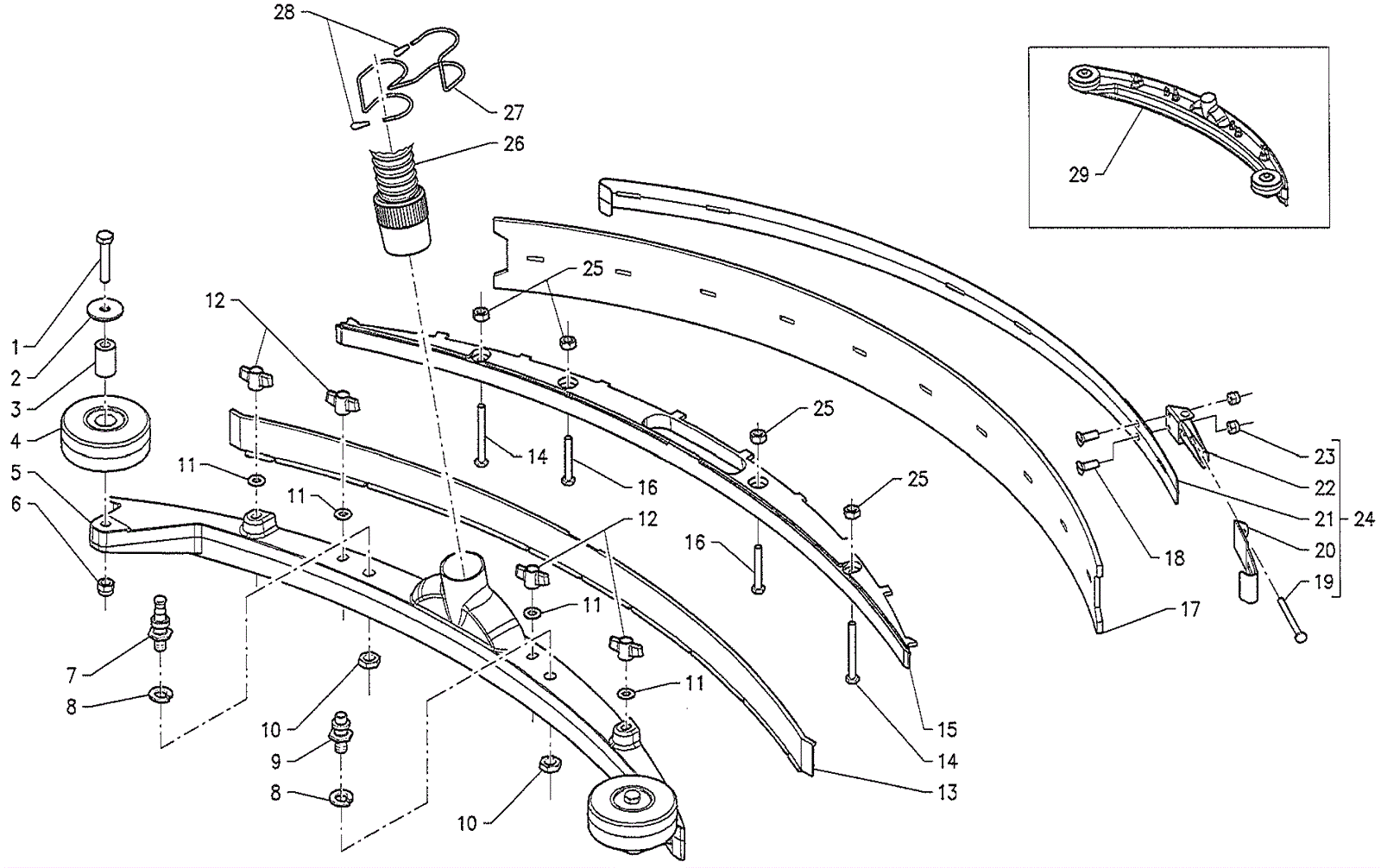

BD 20/11 Squeegee Assembly after sn 1002661/ after 1999

#PartDescriptionPriceReqNotesAvailability
1 183-2450 Screw M8 x 60mm $2.42 2 usually ships 8-21 days
2 183-2451 Washer inox $1.35 2 usually ships 8-21 days
3 183-8498 Bushing $8.60 2 usually ships 8-21 days
4 183-4706 Bumper wheel $9.59 2 usually ships 8-21 days
5 183-2452 Aluminum squeegee body $61.30 1 usually ships 8-21 days
6 183-8291 Nut INOX $1.35 2 usually ships 8-21 days
7 183-2453 Right hand stud bolt $31.15 1 usually ships 8-21 days
8 183-2454 Lock washer inox $1.35 2 usually ships 8-21 days
9 183-2455 Left hand stud bolt $35.12 1 usually ships 8-21 days
10 183-2456 Nut inox $1.69 2 usually ships 8-21 days
11 183-2457 Washer INOX $1.35 4 usually ships 8-21 days
12 183-2305 Wing nut $4.66 4 usually ships 8-21 days
13 183-4631 Front squeegee blade $34.51 1 ships same day
14 183-2458 Screw M6 x 60mm $1.35 2 usually ships 8-21 days
15 183-2339 Inner rubber holder $52.45 1 ships same day
16 183-8281 Screw M6 x 45 INOX $1.35 2 usually ships 8-21 days
17 183-4630 Rear squeegee blade $48.26 1 ships same day
18 183-2459 Screw M3 x 10mm $1.35 2 usually ships 8-21 days
19 183-2460 Screw M5 x 60mm $4.11 1 usually ships 8-21 days
20 183-2461 Rear coupler $25.66 1 usually ships 8-21 days
21 183-2462 Rear blade $60.52 1 usually ships 8-21 days
22 183-8504 Lever $28.89 1 usually ships 8-21 days
23 183-2463 Lock nut inox $2.24 2 usually ships 8-21 days
24 183-2464 Rear blade assembly $136.60 1 (includes 19-23) ships same day
25 183-8266 Nut INOX $1.35 4 usually ships 8-21 days
26 183-2290 Squeegee hose $50.13 1 ships same day
27 183-8508 Spring $13.05 1 usually ships 8-21 days
28 183-2465 Cap $1.35 2 usually ships 8-21 days
29 183-4735 Aluminum squeegee assembly $565.53 1 (includes 1-28) usually ships 8-21 days
