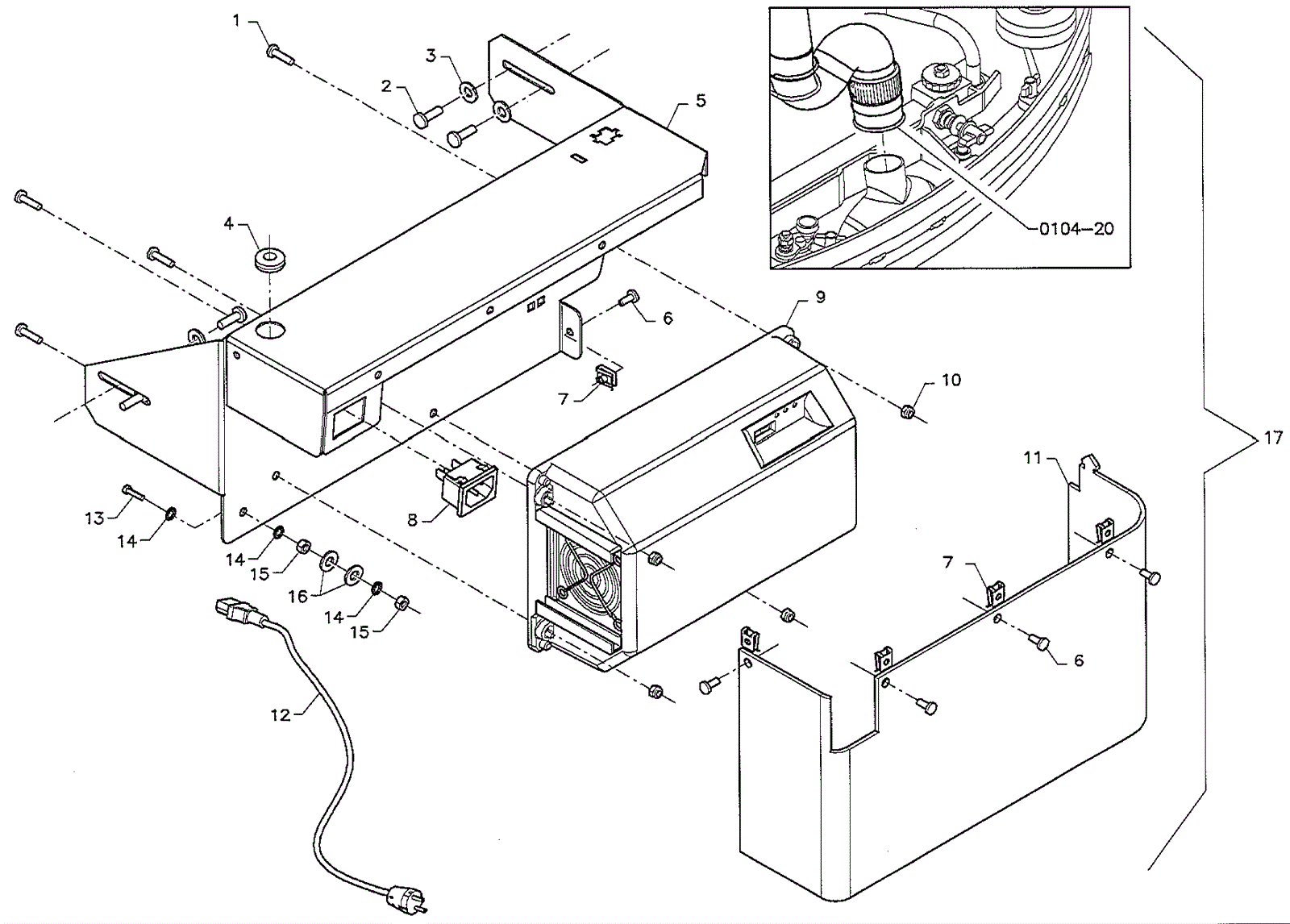

BD 20/11 On-board Charger Assembly after sn 13001492/ after 1999

#PartDescriptionPriceReqNotesAvailability
1 183-2429 Screw M4 x 16mm $1.54 4 usually ships 15-28 days
2 183-2430 Screw M5 x 14mm $1.54 4 usually ships 15-28 days
3 183-8537 Washer $1.54 4 usually ships 15-28 days
4 183-2431 Grommet $6.14 1 usually ships 15-28 days
5 183-2432 Charger support $88.79 1 usually ships 15-28 days
6 183-2433 Screw M4 x 10mm $1.54 5 usually ships 15-28 days
7 183-2434 Clip nut $1.76 5 usually ships 15-28 days
8 183-2435 Main socket 10a 250v $5.28 1 usually ships 15-28 days
9 183-4736 Battery charger $1,095.80 1 ships same day
10 183-8460 Nut $1.54 4 usually ships 13-23 days
11 183-2436 Charger splash guard $32.21 1 usually ships 15-28 days
12 183-4711 Charger cable $23.76 1 usually ships 15-28 days
13 183-2437 Screw M4 x 14mm $1.54 1 usually ships 15-28 days
14 183-8365 Washer $1.54 3 usually ships 15-28 days
15 183-2438 Washer $1.54 2 usually ships 15-28 days
16 183-2439 Nut $1.54 1 usually ships 15-28 days
17 183-2440 Charger assembly $1,617.08 1 (includes 1-16) usually ships 15-28 days
