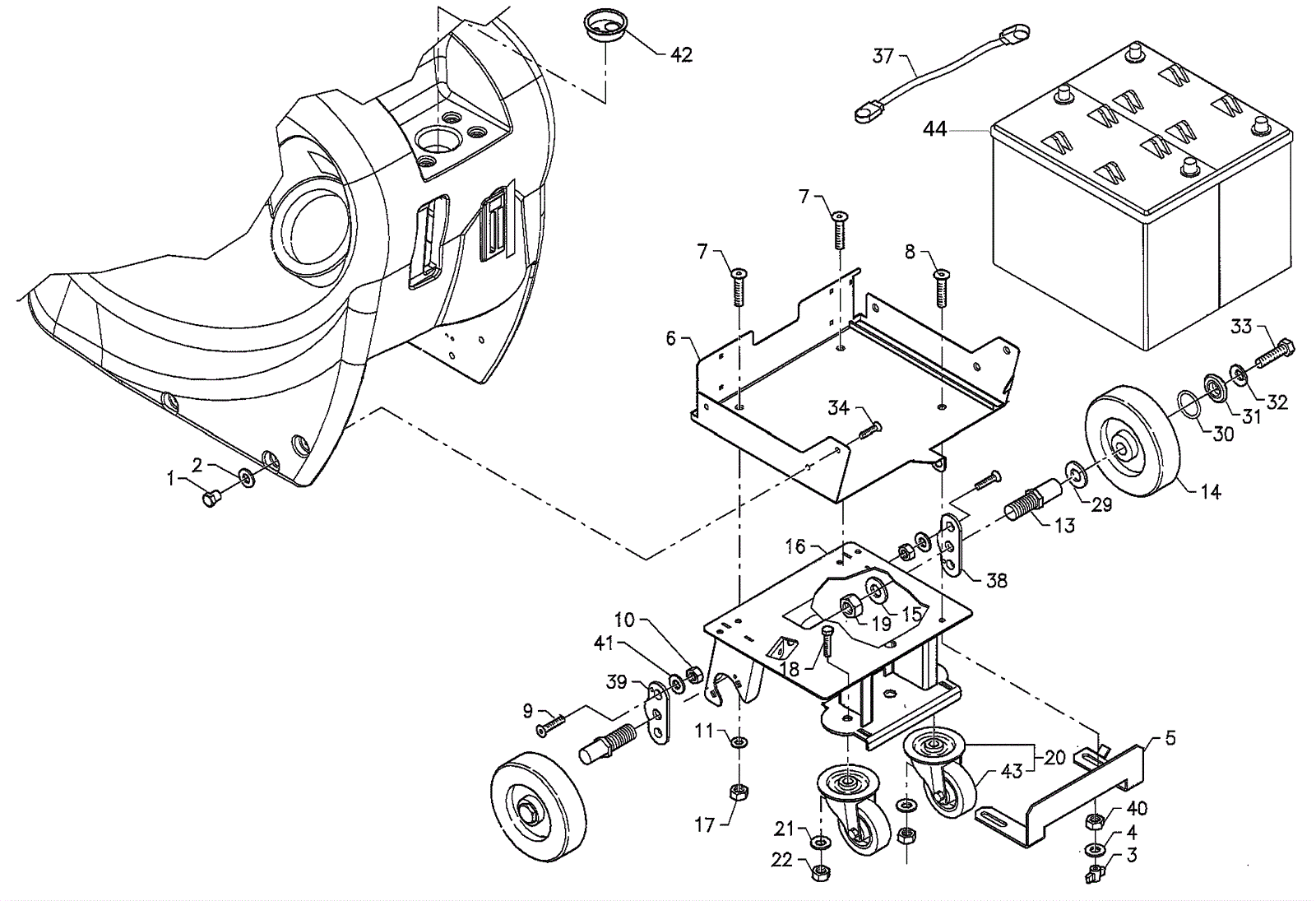

BD 20/11 Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-8397 Bushing $8.35 6 usually ships 8-21 days
2 183-8398 Conical washer $1.23 6 usually ships 8-21 days
3 183-2305 Wing nut $4.24 4 usually ships 8-21 days
4 183-8399 Washer $1.23 4 usually ships 8-21 days
5 183-8400 Bracket $27.68 1 usually ships 8-21 days
6 183-8401 Battery base $254.94 1 usually ships 8-21 days
7 183-8402 Screw M6 x 16 $1.23 4 usually ships 8-21 days
8 183-8227 Screw M6 x 25 $1.23 1 usually ships 8-21 days
9 183-8421 Screw $1.23 1 usually ships 8-21 days
13 183-8405 Pin $20.94 2 ships same day
14 183-8162 Front wheel $92.23 2 usually ships 8-21 days
15 183-8406 Washer $1.23 1 usually ships 8-21 days
16 183-8407 Frame $193.73 1 usually ships 8-21 days
17 183-8271 Nut INOX $1.23 4 usually ships 8-21 days
18 183-8422 Screw $3.74 1 usually ships 8-21 days
19 183-8409 Nut $2.25 usually ships 8-21 days
20 183-2137 3 inch caster assembly $90.79 1 ships same day
21 183-8410 Washer $1.23 2 usually ships 8-21 days
22 183-8411 Nut $1.23 1 usually ships 8-21 days
29 183-8412 Ring $2.41 1 usually ships 8-21 days
30 183-8413 O-ring $1.23 1 usually ships 8-21 days
31 183-8414 Protection washer $3.10 2 usually ships 8-21 days
32 183-8415 Conical washer $1.23 1 usually ships 8-21 days
33 183-8416 Screw $2.52 1 usually ships 8-21 days
34 183-8417 Screw M6 x 18 $1.23 1 usually ships 8-21 days
37 183-4694 Battery cable $46.43 1 usually ships 8-21 days
38 183-8418 Bracket (OBSOLETE) Call for price 1 usually ships 8-21 days
39 183-8419 Bracket (OBSOLETE) Call for price 1 usually ships 8-21 days
40 183-8271 Nut INOX $1.23 2 usually ships 8-21 days
41 183-8307 Washer $4.70 2 usually ships 8-21 days
42 183-8420 Fairlead (OBSOLETE) Call for price 1 usually ships 8-21 days
43 183-4633 3 inch caster $38.48 2 usually ships 8-21 days
44 162-0057 12V 150Ah wet battery (SNSR) $402.47 2 ships same day
