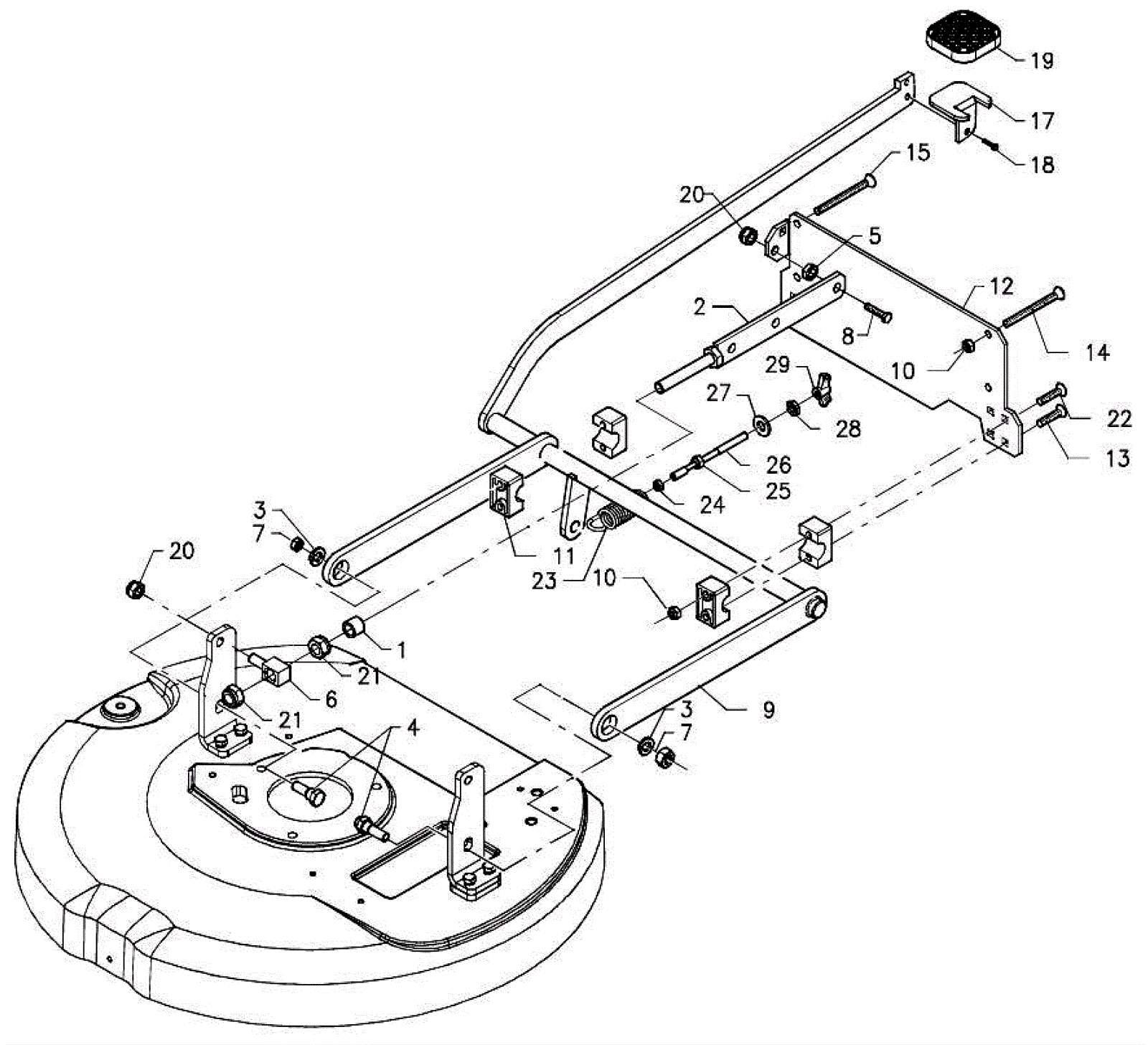

BD 20/11 Brush base control Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-2420 Spacer $9.62 1 usually ships 8-21 days
2 183-8440 Support arm $21.44 1 usually ships 8-21 days
4 183-2145 Bolt arm stud $8.11 2 usually ships 1-5 days
5 183-4767 Nut $1.23 1 usually ships 8-21 days
6 183-8426 Arm adjuster $21.29 1 usually ships 8-21 days
8 183-8300 Screw M8 x 25 $1.23 1 usually ships 8-21 days
9 183-2419 Base control arms $107.52 1 usually ships 8-21 days
10 183-8256 Nut $1.23 4 usually ships 8-21 days
11 183-8428 Pivot block $1.23 4 usually ships 8-21 days
12 183-2421 Plate $46.42 1 usually ships 8-21 days
13 183-8431 Screw $1.23 1 usually ships 8-21 days
14 183-2422 Screw M6 x 80mm (OBSOLETE) Call for price 1 usually ships 8-21 days
15 183-2423 Screw M6 x 75mm (OBSOLETE) Call for price 1 usually ships 8-21 days
17 183-8434 Pedal plate $12.79 1 usually ships 8-21 days
18 183-8432 Screw M6 x 12 $1.23 1 usually ships 8-21 days
19 183-8433 Pedal cover $8.08 1 usually ships 8-21 days
21 183-8424 Nut $1.23 2 usually ships 8-21 days
22 183-2424 Screw M6 x 40mm (OBSOLETE) Call for price 2 usually ships 8-21 days
23 183-8437 Spring $8.96 1 usually ships 8-21 days
24 183-8394 Nut $1.23 1 usually ships 8-21 days
25 183-8256 Nut $1.23 1 usually ships 8-21 days
26 183-8436 Bolt $5.00 1 usually ships 8-21 days
27 183-8334 Washer $1.23 1 usually ships 8-21 days
28 183-8214 Nut $0.31 1 usually ships 8-21 days
29 183-8435 Wing nut $3.95 1 usually ships 8-21 days
