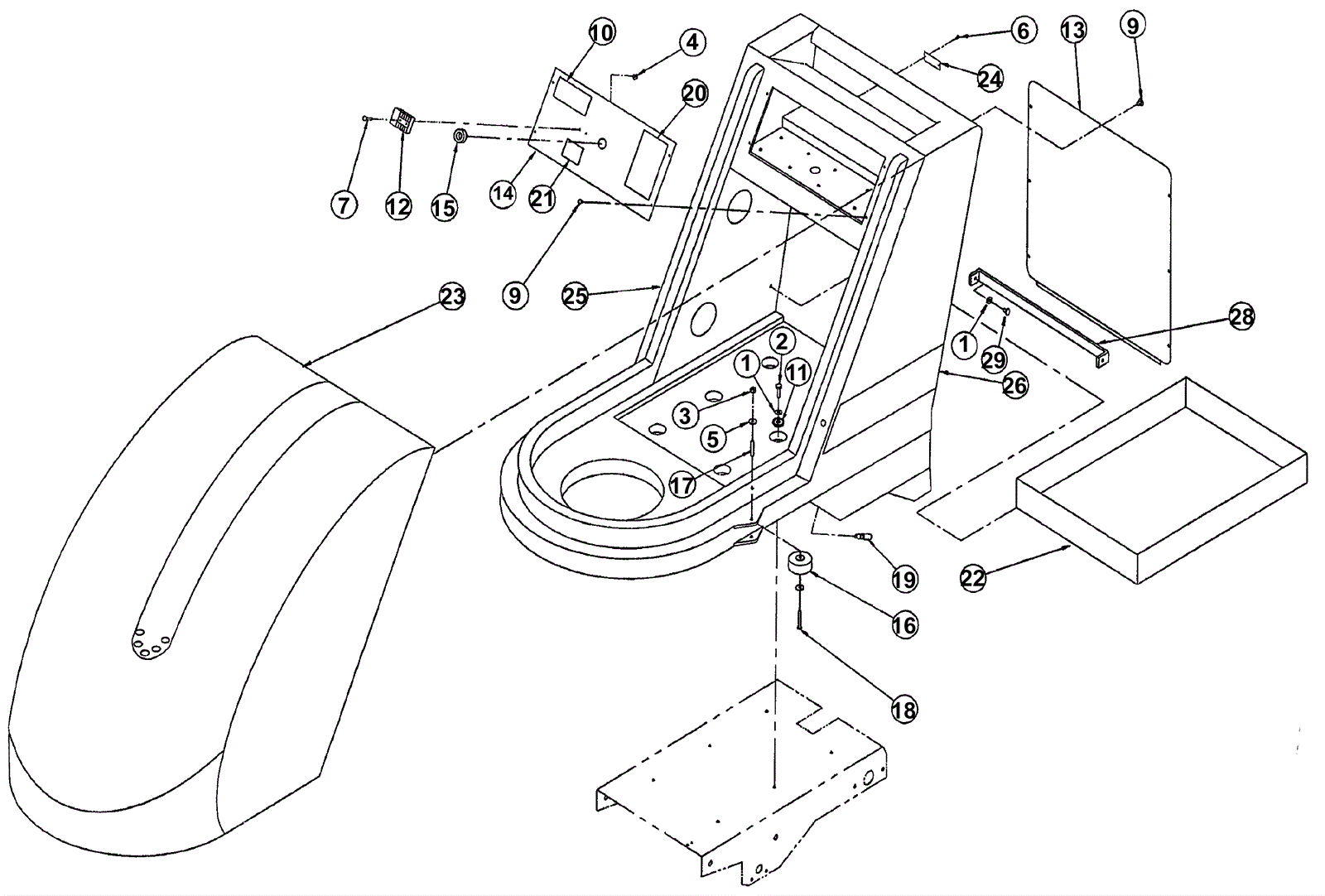

GLAZER 2500B 98498 Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0060 Washer 1/4 split lock plain finish $0.99 8 ships same day
2 183-1008 Screw hex head $5.15 6 usually ships 14-19 days
3 183-1032 Acorn nut $5.50 2 usually ships 14-19 days
4 183-0602 Nut #6-32 hex lock $1.54 2 usually ships 1-5 days
5 183-2218 Washer plain $3.95 4 usually ships 1-5 days
6 183-1033 Rivet-blind 1/8 x 15/64 (OBSOLETE) Call for price 2 usually ships 14-19 days
7 999-0511 Screw 6-32 x 1 pan head phillips zinc plated $0.99 2 ships same day
9 183-4677 Screw $1.54 11 usually ships 1-5 days
10 183-4352 Battery caution label $7.37 1 usually ships 1-5 days
11 999-0016 Washer 1/4 flat plain finish $0.99 6 ships same day
12 183-4524 36V Charger connector (Obsolete) $21.27 1 usually ships 1-5 days
13 183-1034 Back panel $50.81 1 usually ships 14-19 days
14 183-1035 Access cover $47.82 1 usually ships 14-19 days
15 183-0791 Grommet 5/8 $1.54 1 usually ships 1-5 days
16 183-1036 Wheel rub $6.42 2 usually ships 14-19 days
17 183-1037 Wheel rub axle $23.64 2 usually ships 14-19 days
18 183-1038 Screw 10-24 x 1 3/4 $1.54 2 usually ships 14-19 days
19 183-1039 Pushbutton switch $16.90 1 usually ships 14-19 days
20 183-1040 Battery decal $1.76 1 usually ships 14-19 days
21 183-1041 Decal $1.76 1 usually ships 14-19 days
22 183-4355 Battery tray $114.35 1 usually ships 14-19 days
23 183-1042 Battery housing top cover $394.36 1 usually ships 14-19 days
24 183-1043 Nameplate (OBSOLETE) Call for price 1 usually ships 14-19 days
25 183-1044 Bottom housing frame $416.39 1 usually ships 14-19 days
26 183-1045 Tornado decal $1.32 2 usually ships 14-19 days
28 183-1046 Battery retaining bracket $38.80 1 usually ships 14-19 days
29 999-9123 Screw 1/4-20 x 1/2 round head phillips stainless steel $1.17 2 ships same day
N/S 162-0002 12V 185Ah wet battery (SNSR) $511.50 3 ships same day
N/S 283-4007 36V battery charger $1,193.67 1 usually ships 1-5 days
