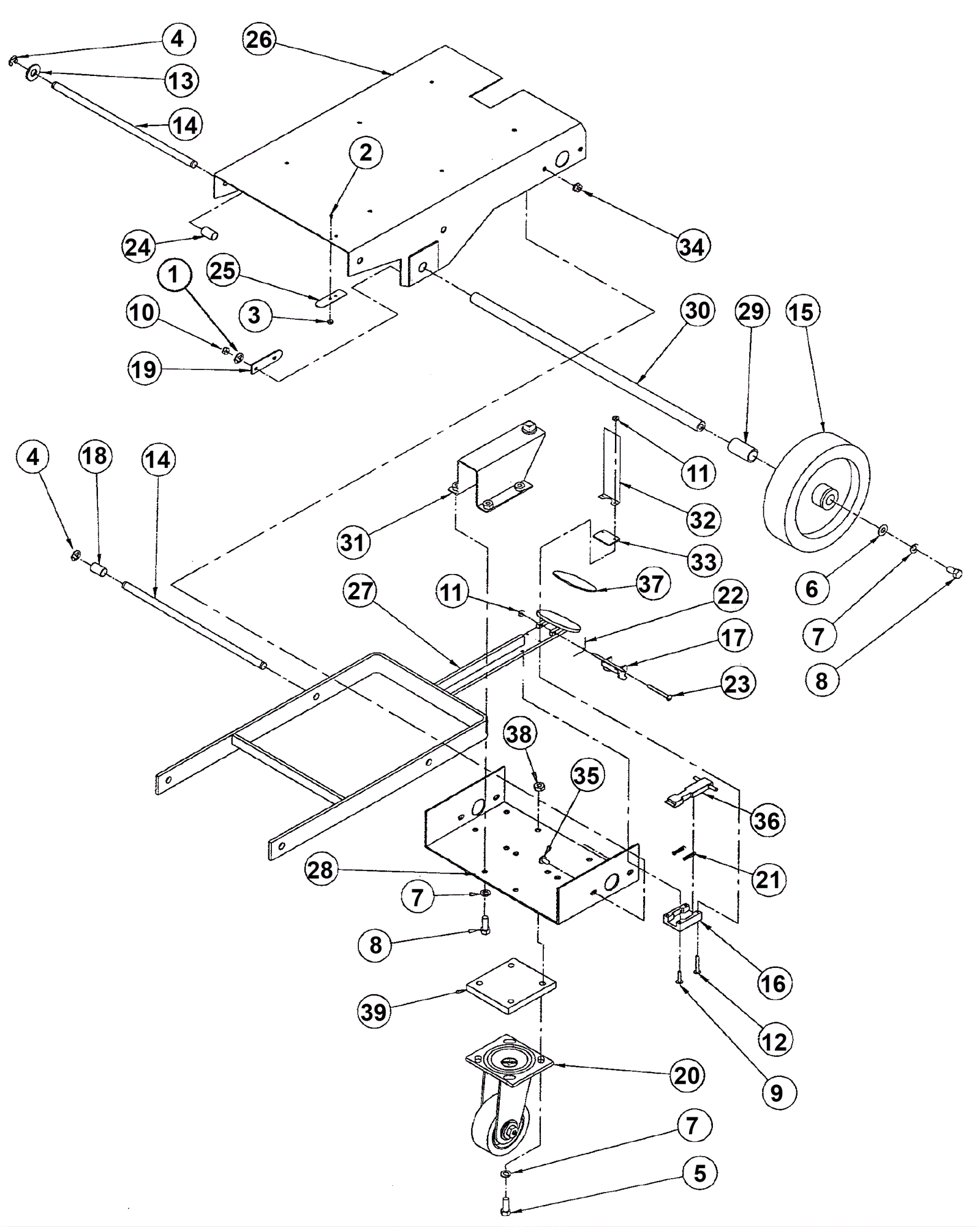

# | Part | Description | Price | Req | Notes | Availability |
1 |
999-0060
|
Washer 1/4 split lock plain finish |
$0.99
|
4 |
|
ships same day |
2 |
999-1067
|
Screw 10-32 x 5/16 pan head phillips stainless steel |
$0.90
|
2 |
|
ships same day |
3 |
183-4223
|
Nut 10-32 hex lock zinc plated |
$1.23
|
2 |
|
usually ships 9-20 days |
4 |
183-0041
|
Retaining ring |
$0.90
|
4 |
|
usually ships 9-20 days |
5 |
183-9061
|
Screw hex head |
$1.23
|
8 |
|
usually ships 9-20 days |
6 |
999-0120
|
Washer 3/8 SAE flat |
$0.99
|
2 |
|
ships same day |
7 |
183-4414
|
Washer 3/8 H/S |
$1.18
|
14 |
|
usually ships 1-5 days |
8 |
999-0038
|
Bolt 3/8-16 x 1 hex head grade 5 zinc plated |
$1.87
|
6 |
|
ships same day |
9 |
183-0987
|
Screw round head slotted |
$1.23
|
2 |
|
usually ships 9-20 days |
10 |
999-9123
|
Screw 1/4-20 x 1/2 round head phillips stainless steel |
$1.06
|
4 |
|
ships same day |
11 |
999-1068
|
Nut 10-24 hex reversible lock zinc plated |
$0.90
|
3 |
|
ships same day |
12 |
183-0988
|
Screw pan head phillips |
$1.23
|
2 |
|
usually ships 9-20 days |
13 |
999-0187
|
Washer 1/2 flat plain finish |
$0.99
|
1 |
|
ships same day |
14 |
183-1005
|
Wheel axle |
$57.95
|
2 |
|
usually ships 9-20 days |
15 |
183-7566
|
Wheel |
$62.76
|
2 |
|
usually ships 9-20 days |
16 |
183-0989
|
Latch block |
$114.40
|
1 |
|
usually ships 9-20 days |
17 |
183-0990
|
Latch release |
$56.65
|
1 |
|
usually ships 9-20 days |
18 |
183-4422
|
Motor adjustment spacer |
$11.67
|
2 |
|
usually ships 1-5 days |
19 |
183-0991
|
Axle locking plate |
$27.15
|
2 |
|
usually ships 9-20 days |
20 |
183-9004
|
Swivel caster |
$144.22
|
2 |
|
usually ships 1-5 days |
21 |
183-0992
|
Latch release spring |
$5.99
|
2 |
|
usually ships 9-20 days |
22 |
183-0993
|
Release spring |
$5.30
|
2 |
|
usually ships 9-20 days |
23 |
183-0994
|
Screw round head slotted |
$1.23
|
1 |
|
usually ships 9-20 days |
24 |
183-0995
|
Upper motor adjustment spacer |
$5.55
|
2 |
|
usually ships 9-20 days |
25 |
183-0996
|
Safety switch spring (OBSOLETE) |
Call for price
|
1 |
|
usually ships 9-20 days |
26 |
183-0997
|
Chassis (OBSOLETE) |
Call for price
|
1 |
|
usually ships 9-20 days |
27 |
183-0998
|
Lift lever weldment |
$376.57
|
1 |
|
usually ships 9-20 days |
28 |
183-0999
|
Caster channel (OBSOLETE) |
Call for price
|
1 |
|
usually ships 9-20 days |
29 |
183-1000
|
Spacer |
$11.34
|
2 |
|
usually ships 9-20 days |
30 |
183-1001
|
Wheel axle |
$84.07
|
1 |
|
usually ships 9-20 days |
31 |
183-1002
|
Weldment adjustment bracket |
$67.55
|
1 |
|
usually ships 9-20 days |
32 |
183-1003
|
Toe guard bracket |
$19.69
|
1 |
|
usually ships 9-20 days |
33 |
183-1004
|
Rub plate |
$12.98
|
1 |
|
usually ships 9-20 days |
34 |
183-1006
|
Nut hex flanged |
$1.23
|
4 |
|
usually ships 9-20 days |
35 |
183-0765
|
Bolt 5/16-18 x 1/2 hex head flange zinc plated |
$1.23
|
4 |
|
usually ships 1-5 days |
36 |
183-1007
|
Latch assembly |
$68.36
|
1 |
|
usually ships 9-20 days |
37 |
183-0755
|
Pedal mat |
$9.07
|
1 |
|
usually ships 1-5 days |
38 |
999-0959
|
Nut 3/8-16 hex |
$1.42
|
8 |
|
ships same day |
39 |
183-7379
|
Caster spacer plate (Obsolete) |
$36.54
|
2 |
|
usually ships 1-5 days |
