SWB 26/8

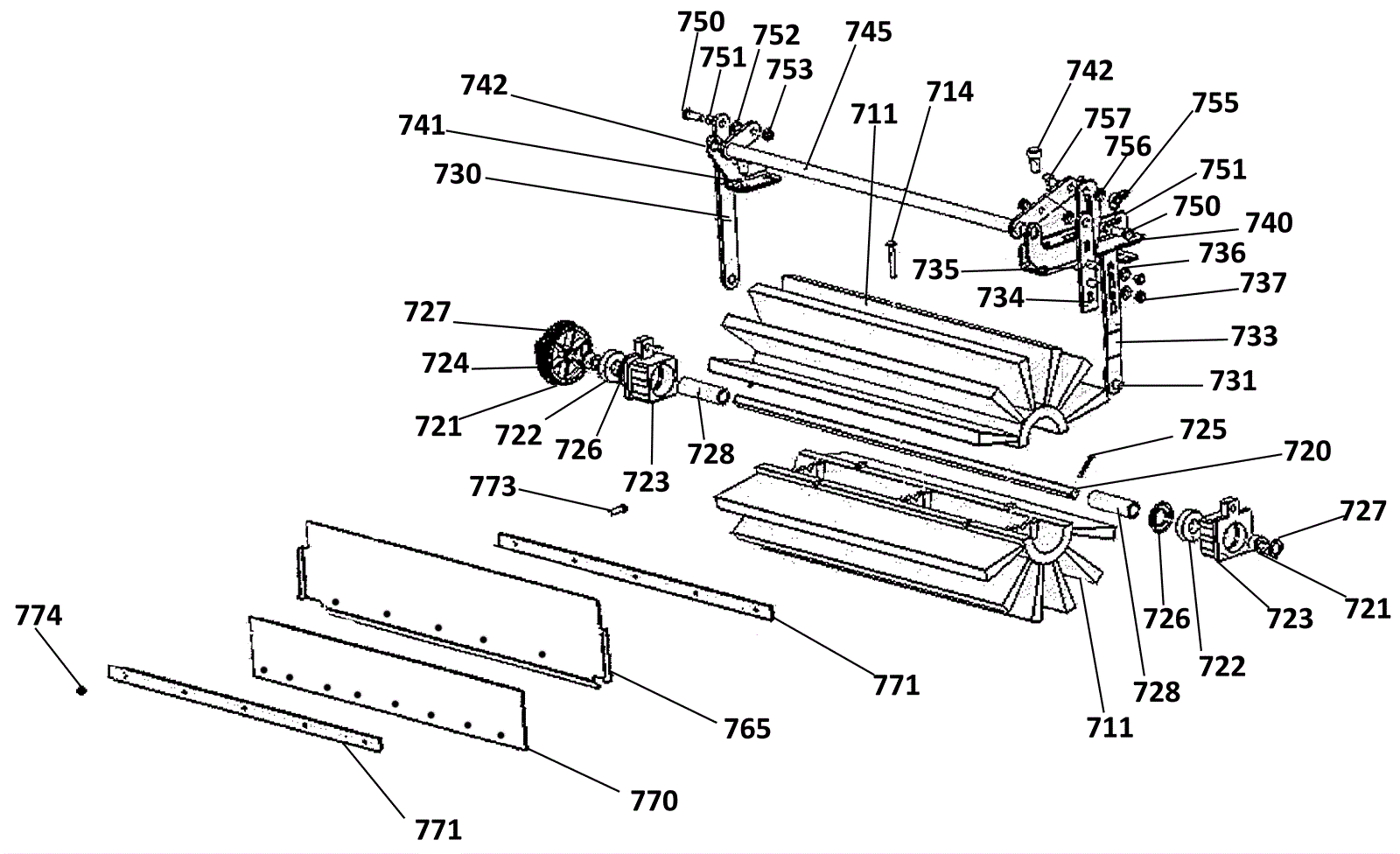

Main Brush Assembly
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
711
183-4691
Main brush
$118.65
2
usually ships 8-21 days
714
183-8646
Screw
$1.23
6
usually ships 8-21 days
720
183-8647
Axle
$45.93
1
usually ships 8-21 days
721
183-8648
Bearing
$5.41
2
usually ships 8-21 days
722
N/A
Not available
Call for price
2
(Bearing)
usually ships 3-26 days
723
183-8649
Fastener
$4.12
2
usually ships 8-21 days
724
183-8650
Gear
$12.84
1
usually ships 8-21 days
725
183-8651
Pin
$1.23
2
usually ships 8-21 days
726
183-8652
Sealing ring
$9.10
2
usually ships 8-21 days
727
183-8653
Washer
$1.23
2
usually ships 8-21 days
728
183-8654
Spacer
$5.00
2
usually ships 8-21 days
730
183-8655
Brush lever
$10.07
1
usually ships 8-21 days
731
183-8656
Bolt
$4.64
2
usually ships 8-21 days
733
183-8657
Lower lever
$16.38
1
usually ships 8-21 days
734
183-8658
Upper lever
$6.85
1
usually ships 8-21 days
735
183-8659
Bolt
$3.41
2
usually ships 8-21 days
736
183-8660
Bolt
$1.23
2
usually ships 8-21 days
737
183-8587
Nut
$1.23
2
usually ships 8-21 days
740
183-8661
Right hand bracket
$34.08
1
usually ships 8-21 days
741
183-8662
Left hand bracket
$13.73
1
usually ships 8-21 days
742
183-8625
Screw
$1.23
4
usually ships 8-21 days
745
183-8663
Brush axle
$64.01
1
usually ships 8-21 days
750
183-8664
Bolt
$1.23
2
usually ships 8-21 days
751
183-8665
Bushing
$6.48
2
usually ships 8-21 days
752
183-8666
Washer
$2.33
2
usually ships 8-21 days
753
183-8587
Nut
$1.23
2
usually ships 8-21 days
755
183-8667
Nut
$3.04
1
usually ships 8-21 days
756
183-8668
Washer
$1.23
1
usually ships 8-21 days
757
183-8629
Screw
$1.23
1
usually ships 8-21 days
765
183-8672
Plate
$30.66
1
usually ships 8-21 days
770
183-8669
Brush flap
$21.81
2
usually ships 8-21 days
771
183-8670
Support weldment
$12.31
2
usually ships 8-21 days
773
183-8671
Bolt
$1.23
5
usually ships 8-21 days
774
183-8562
Nut
$1.23
5
usually ships 8-21 days
