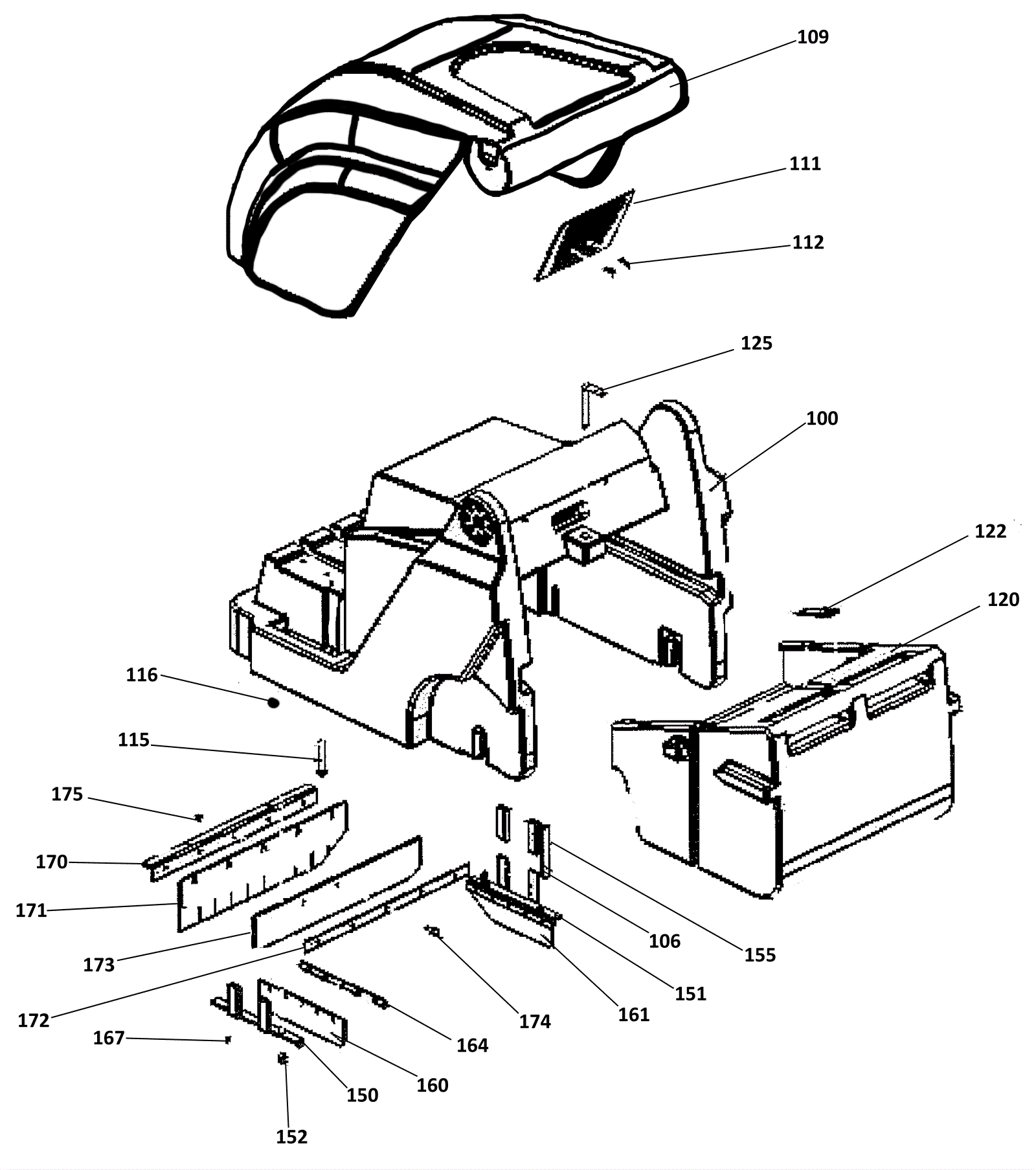

SWB 26/8 Main Frame Assembly

#PartDescription ReqNotesAvailability
100 183-8545 Main frame 1 usually ships 16-24 days
106 183-8546 Seal 1 usually ships 16-24 days
109 183-8547 Cover 1 usually ships 16-24 days
111 183-8548 Plate 1 usually ships 16-24 days
112 183-8549 Screw 2 usually ships 16-24 days
115 183-8550 Screw 1 usually ships 16-24 days
116 183-8551 Washer 1 usually ships 16-24 days
120 183-8552 Dust bin 1 usually ships 16-24 days
122 183-8553 Plate 1 usually ships 16-24 days
125 183-8554 Lever 1 usually ships 16-24 days
150 183-8555 Left hand plate 1 usually ships 16-24 days
151 183-8556 Right hand plate 1 usually ships 16-24 days
152 183-8557 Screw 4 usually ships 16-24 days
155 183-8558 Gasket cover 1 usually ships 16-24 days
160 183-8559 Left hand plate rubber 1 usually ships 16-24 days
161 183-8560 Right hand plate rubber 1 usually ships 16-24 days
164 183-8561 Mounting bracket 2 usually ships 16-24 days
167 183-8562 Nut 10 usually ships 16-24 days
170 183-8563 Bracket 1 usually ships 16-24 days
171 183-4744 Side skirt 1 usually ships 16-24 days
172 183-8564 Bracket 1 usually ships 16-24 days
173 183-8565 Plate 1 usually ships 16-24 days
174 183-8566 Screw 2 usually ships 16-24 days
175 183-8567 Nut 5 usually ships 16-24 days
