BR 18/11

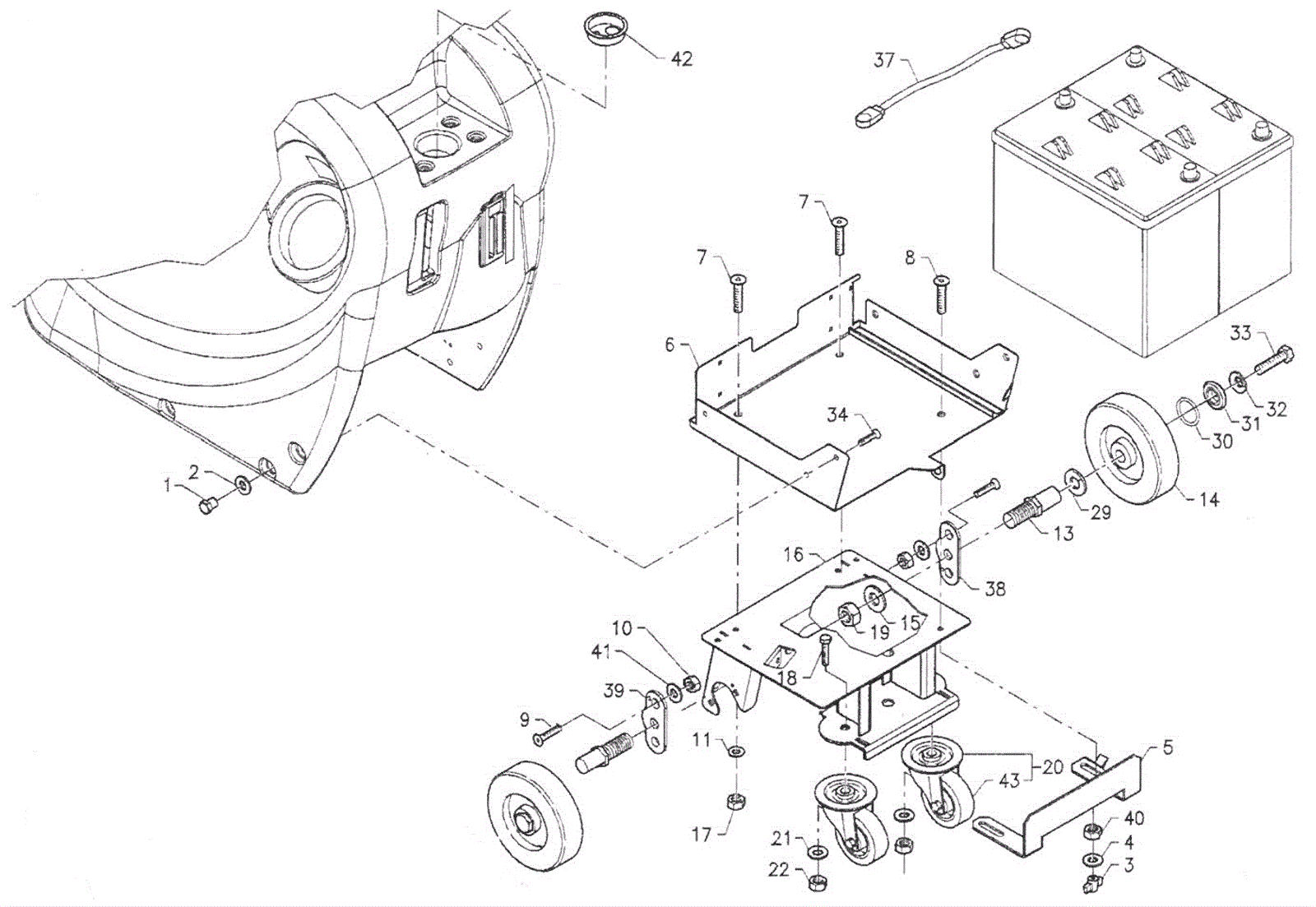

Frame Assembly
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
2
183-8398
Conical washer
$1.23
6
usually ships 9-20 days
3
183-2305
Wing nut
$4.24
4
usually ships 9-20 days
4
183-8399
Washer
$1.23
4
usually ships 9-20 days
5
183-8400
Bracket
$27.68
1
usually ships 9-20 days
6
183-8401
Battery base
$254.94
1
usually ships 9-20 days
7
183-8402
Screw M6 x 16
$1.23
4
usually ships 9-20 days
8a
183-8305
Screw
$1.23
1
(after SN 11000499)
usually ships 9-20 days
8b
183-8227
Screw M6 x 25
$1.23
1
(before SN 11000500)
usually ships 9-20 days
9a
183-8403
Screw
$1.23
1
(after SN 11000499)
usually ships 9-20 days
9b
183-8421
Screw
$1.23
1
(before SN 11000500)
usually ships 9-20 days
10a
183-8404
Nut
$1.23
1
(after SN 11000499)
usually ships 9-20 days
13
183-8405
Pin
$20.94
2
ships same day
14
183-8162
Front wheel
$92.23
2
usually ships 9-20 days
15
183-8406
Washer
$1.23
1
usually ships 9-20 days
16
183-8407
Frame
$193.73
1
usually ships 9-20 days
17b
183-8271
Nut INOX
$1.23
1
(before SN 11000500)
usually ships 9-20 days
18a
183-8408
Screw
$1.29
1
(after SN 11000499)
usually ships 9-20 days
18b
183-8422
Screw
$3.74
1
(before SN 11000500)
usually ships 9-20 days
19
183-8409
Nut
$2.25
1
usually ships 9-20 days
20
183-2137
3 inch caster assembly
$90.79
2
(includes 43)
ships same day
21
183-8410
Washer
$1.23
2
usually ships 9-20 days
22
183-8411
Nut
$1.23
1
usually ships 9-20 days
29
183-8412
Ring
$2.41
1
usually ships 9-20 days
30
183-8413
O-ring
$1.23
1
usually ships 9-20 days
31
183-8414
Protection washer
$3.10
2
usually ships 9-20 days
32
183-8415
Conical washer
$1.23
1
usually ships 9-20 days
33a
183-8416
Screw
$2.52
1
(after SN 11000499)
usually ships 9-20 days
33b
183-8423
Screw M8 x 12 (Obsolete)
Call for price
1
(before SN 11000500)
usually ships 9-20 days
34
183-8417
Screw M6 x 18
$1.23
6
usually ships 9-20 days
37
183-4694
Battery cable
$46.43
1
ships same day
38
183-8418
Bracket (OBSOLETE)
Call for price
1
usually ships 9-20 days
39
183-8419
Bracket (OBSOLETE)
Call for price
1
usually ships 9-20 days
40
183-8271
Nut INOX
$1.23
2
usually ships 9-20 days
41
183-8307
Washer
$5.17
2
usually ships 9-20 days
42
183-8420
Fairlead (OBSOLETE)
Call for price
1
usually ships 9-20 days
43
183-4633
3 inch caster
$38.48
2
usually ships 9-20 days
