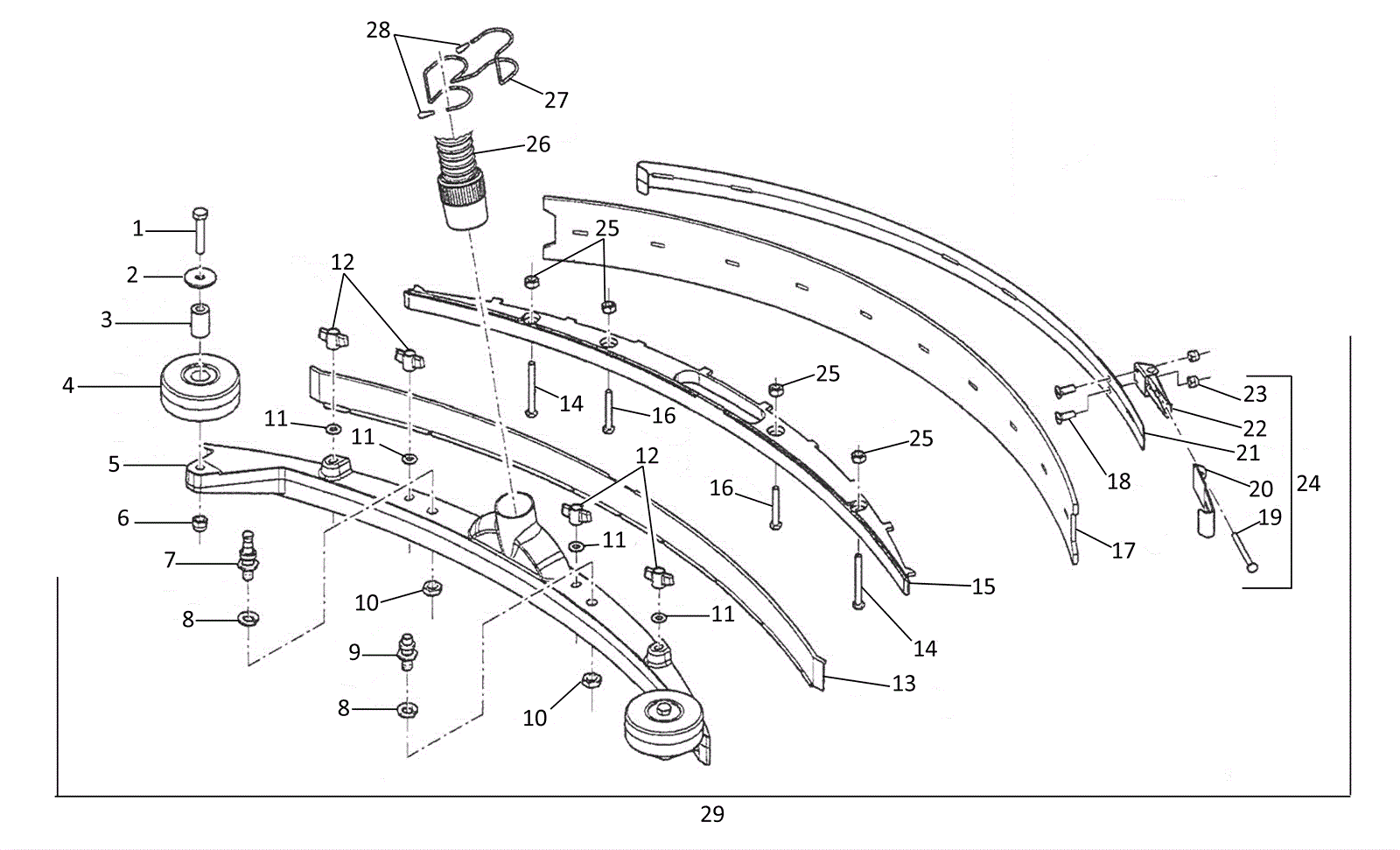

BR 18/11 Squeegee Assembly - After SN 10002662

#PartDescriptionPriceReqNotesAvailability
1 183-2450 Screw M8 x 60mm $2.20 2 usually ships 8-21 days
2 183-2451 Washer inox $1.23 2 usually ships 8-21 days
3 183-8498 Bushing $7.82 2 usually ships 8-21 days
4 183-4706 Bumper wheel $8.72 2 usually ships 8-21 days
5 183-2452 Aluminum squeegee body $55.73 1 usually ships 8-21 days
6 183-8291 Nut INOX $1.23 2 usually ships 8-21 days
7 183-2453 Right hand stud bolt $28.32 1 usually ships 8-21 days
8 183-2454 Lock washer inox $1.23 2 usually ships 8-21 days
9 183-2455 Left hand stud bolt $31.93 1 usually ships 8-21 days
10 183-2456 Nut inox $1.54 2 usually ships 8-21 days
11 183-2457 Washer INOX $1.23 4 usually ships 8-21 days
12 183-2305 Wing nut $4.24 4 usually ships 8-21 days
13 183-4631 Front squeegee blade $31.37 1 ships same day
14 183-2458 Screw M6 x 60mm $1.23 2 usually ships 8-21 days
15 183-2339 Inner rubber holder $47.68 1 ships same day
16 183-8281 Screw M6 x 45 INOX $1.23 2 usually ships 8-21 days
17 183-4630 Rear squeegee blade $43.87 1 ships same day
18 183-2459 Screw M3 x 10mm $1.23 2 usually ships 8-21 days
19 183-2460 Screw M5 x 60mm $3.74 2 usually ships 8-21 days
20 183-2461 Rear coupler $23.33 1 usually ships 8-21 days
21 183-2462 Rear blade $55.02 1 usually ships 8-21 days
22 183-8504 Lever $26.26 1 usually ships 8-21 days
23 183-2463 Lock nut inox $2.04 2 usually ships 8-21 days
24 183-2464 Rear blade assembly $124.18 1 (includes 19-23) ships same day
25 183-8266 Nut INOX $1.23 4 usually ships 8-21 days
26 183-2290 Squeegee hose $45.57 1 ships same day
27 183-8508 Spring $11.86 1 usually ships 8-21 days
28 183-2465 Cap $1.23 2 usually ships 8-21 days
29 183-4735 Aluminum squeegee assembly $514.12 1 (includes 1-28) usually ships 8-21 days
