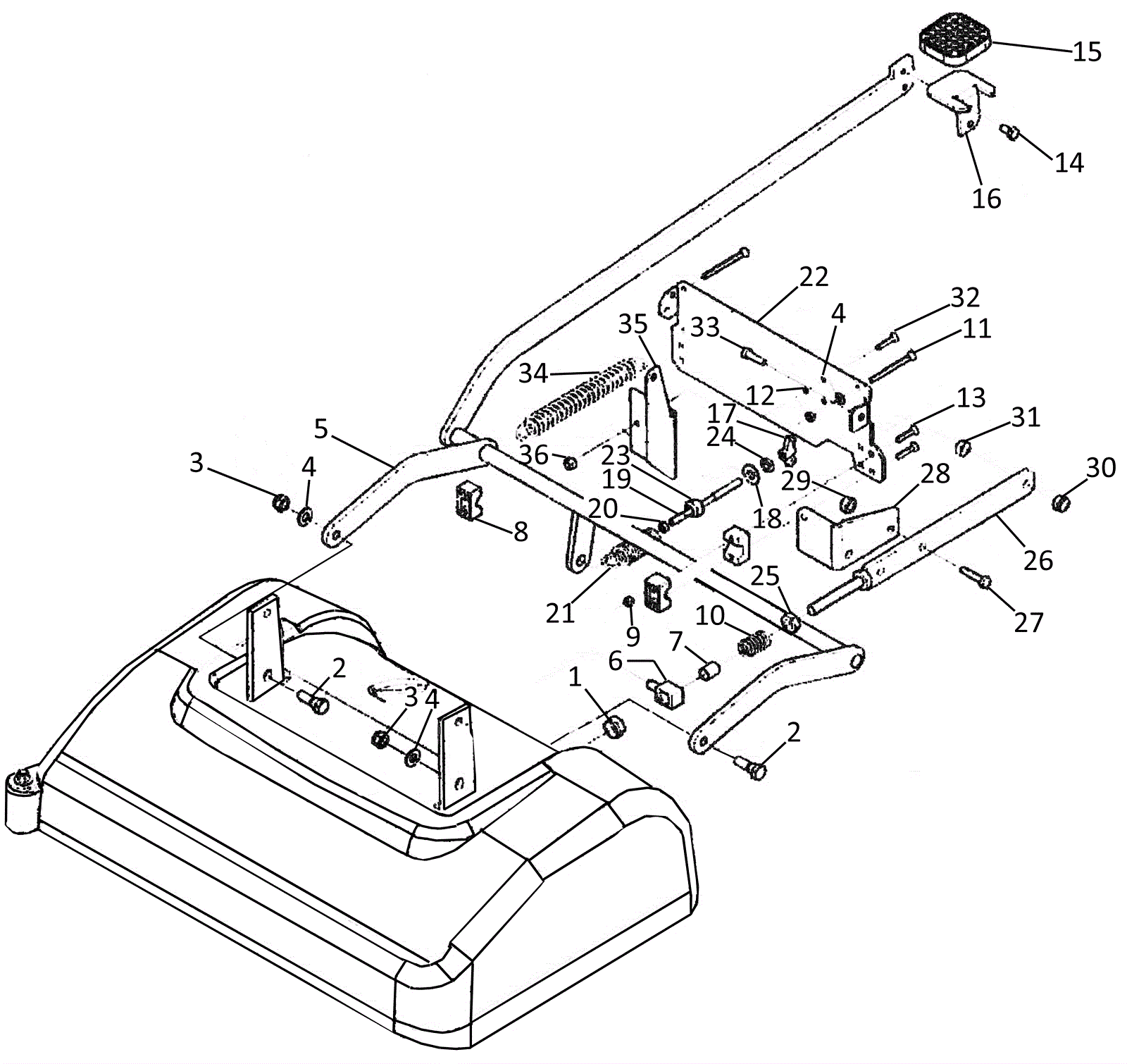

BR 18/11 Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-8424 Nut $1.54 1 usually ships 15-28 days
2 183-2145 Bolt arm stud $8.92 2 usually ships 1-5 days
4 183-8307 Washer $5.17 3 usually ships 15-28 days
5 183-8425 Brush control arm $166.30 1 usually ships 15-28 days
6 183-8426 Arm adjuster $23.42 2 usually ships 15-28 days
7 183-8427 Spring guide $8.16 2 usually ships 15-28 days
8 183-8428 Pivot block $1.54 4 usually ships 15-28 days
9 183-8256 Nut $1.54 1 usually ships 15-28 days
10 183-8429 Compression spring $3.72 2 usually ships 15-28 days
11 183-8430 Screw M6 x 70 $1.54 2 usually ships 15-28 days
13 183-8431 Screw $1.54 2 usually ships 15-28 days
14 183-8432 Screw M6 x 12 $1.54 1 usually ships 15-28 days
15 183-8433 Pedal cover $8.89 1 usually ships 15-28 days
16 183-8434 Pedal plate $14.07 1 usually ships 15-28 days
17 183-8435 Wing nut $4.62 1 usually ships 15-28 days
19 183-8436 Bolt $5.28 1 ships same day
20 183-8394 Nut $1.54 1 usually ships 15-28 days
21 183-8437 Spring $9.86 1 usually ships 15-28 days
22 183-8438 Plate (Obsolete) Call for price 1 usually ships 15-28 days
23 183-8256 Nut $1.54 1 usually ships 15-28 days
24 183-8214 Nut $1.54 1 usually ships 15-28 days
25 183-8439 Nut $1.54 2 usually ships 15-28 days
26 183-8440 Support arm $23.58 1 usually ships 15-28 days
27 183-8289 Screw M8 x 20 INOX $1.54 1 usually ships 15-28 days
28 183-8441 Bracket $18.39 1 usually ships 15-28 days
31 183-4767 Nut $1.54 1 usually ships 15-28 days
32a 183-8442 Screw $1.54 1 usually ships 15-28 days
32b 183-8417 Screw M6 x 18 $1.54 1 usually ships 15-28 days
33 183-8300 Screw M8 x 25 $1.54 1 usually ships 15-28 days
34 183-8443 Spring $20.99 1 usually ships 15-28 days
35a 183-8444 Bracket $14.20 1 usually ships 15-28 days
35b 183-8445 Spring support plate $24.67 1 usually ships 15-28 days
36 183-8256 Nut $1.54 1 usually ships 15-28 days
