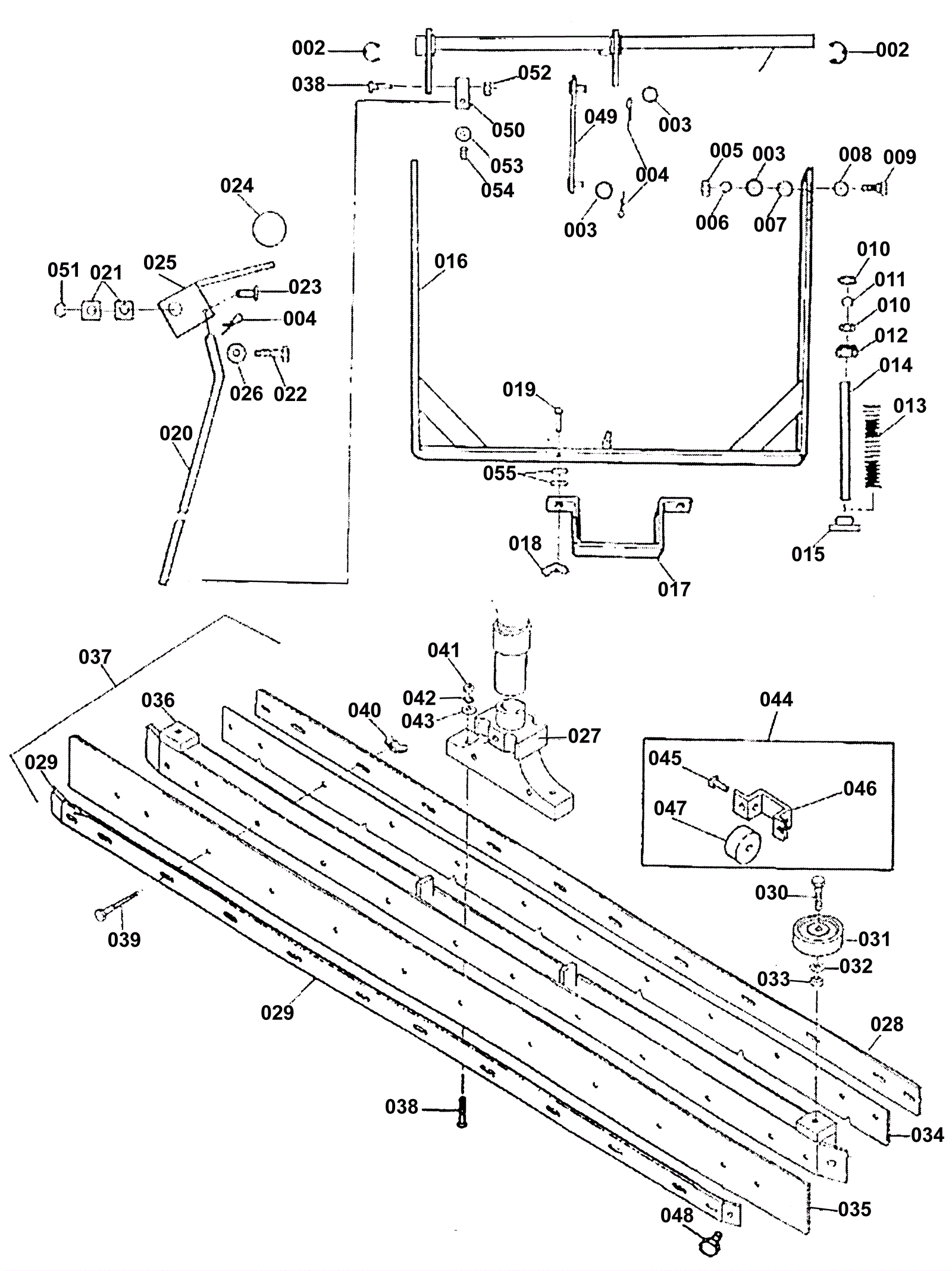

FLOORKEEPER 33 Squeegee Assembly and Lift Mechanism

#PartDescriptionPriceReqNotesAvailability
001 183-4204 Bolt (Obsolete) $32.95 1 usually ships 1-5 days
002 183-0666 Retaining ring 5/8 (Obsolete) $4.53 2 usually ships 1-5 days
003 999-0024 Washer 5/16 flat stainless steel $1.34 6 ships same day
004 183-0699 Cotter pin $1.54 3 usually ships 15-28 days
005 999-0069 Nut 5/16-18 hex $0.99 1 ships same day
006 999-0553 Washer 5/16 medium split lock stainless steel $0.99 4 ships same day
007 183-4440 Washer 15/32 (Obsolete) $3.37 2 usually ships 1-5 days
008 999-0349 Washer 5/8 SAE flat $0.99 2 ships same day
009 183-4441 Screw 7/16 x 5/16 shoulder (Obsolete) $10.04 2 usually ships 1-5 days
010 999-0704 Nut 5/8-11 nylon insert lock stainless steel $3.65 8 ships same day
011 183-4442 Washer lock (Obsolete) Call for price 2 usually ships 1-5 days
012 999-1235 Nut 3/8-16 knurled lock $7.32 2 usually ships 1-5 days
013 183-4443 Squeegee spring (Obsolete) $5.50 2 usually ships 1-5 days
014 183-4444 Squeegee guide rod (Obsolete) $9.75 2 usually ships 1-5 days
015 183-4445 Spring guide (Obsolete) $121.91 2 usually ships 1-5 days
016 183-4446 Squeegee pivot arm assembly (Obsolete) $142.51 1 usually ships 1-5 days
017 183-4447 Squeegee bracket assembly (Obsolete) $34.14 1 usually ships 1-5 days
018 999-0060 Washer 1/4 split lock plain finish $0.99 2 ships same day
019 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 2 ships same day
020 183-4448 Squeegee lift rod (Obsolete) $27.24 1 usually ships 1-5 days
021 183-4449 Spacer (Obsolete) $5.14 2 usually ships 1-5 days
022 183-4450 Pin (Obsolete) $16.84 1 usually ships 1-5 days
023 183-0699 Cotter pin $1.54 1 usually ships 15-28 days
024 183-0700 Handle knob $8.01 1 usually ships 1-5 days
025 183-4452 Squeegee lift bracket (Obsolete) $44.59 1 usually ships 1-5 days
026 999-0566 Washer 1/2 flat nylon $0.99 2 ships same day
027 183-4453 Nozzle throat (Obsolete) $115.14 1 usually ships 1-5 days
028a 183-4454 Front retainer strip (Obsolete) $11.45 1 26 Inch Models usually ships 1-5 days
028b 183-4455 Front retainer strip (Obsolete) $28.47 1 33 Inch Models usually ships 1-5 days
029a 183-4456 Rear squeegee retainer 33 inch (Obsolete) $35.73 1 26 Inch Models usually ships 1-5 days
029b 183-4457 Rear squeegee retainer 33 inch (Obsolete) $28.45 1 33 Inch Models usually ships 1-5 days
030 999-1091 Bolt 1/2-13 x 2 1/2 hex cap grade 5 zinc plated $1.83 2 ships same day
031 183-0632 Wheel 4 x 1-1/4 inches $13.90 2 usually ships 15-28 days
032 183-0631 Washer 1/2 spring wave $1.54 4 usually ships 15-28 days
033 999-0050 Nut 1/2-13 hex jam plain finish $0.99 2 ships same day
034a 183-4458 Front squeegee blade 33 inch $22.70 1 33 Inch Models usually ships 1-5 days
034b 183-4459 Front squeegee blade 33 inch (Obsolete) $16.17 1 26 Inch Models usually ships 1-5 days
035a 183-4460 Rear squeegee blade 33 inch (OBSOLETE) $34.94 1 33 Inch Models usually ships 15-28 days
035b 183-4461 Rear squeegee blade firm 33 inch (Obsolete) $17.33 1 26 Inch Models usually ships 1-5 days
035c 183-4462 Rear squeegee blade thin 33 inch $22.90 1 33 Inch Models usually ships 1-5 days
035d 183-4463 Rear soft squeegee blade 33 inch $18.07 1 26 Inch Models usually ships 1-5 days
036a 183-4464 Squeegee body 33 inch (Obsolete) $126.97 1 33 Inch Models usually ships 1-5 days
036b 183-4465 Squeegee body 33 inch (Obsolete) $109.38 1 26 Inch Models usually ships 1-5 days
037a 183-4466 Squeegee assembly firm 33 inch (Obsolete) $571.20 1 33 Inch Models usually ships 1-5 days
037b 183-4467 Squeegee assembly firm 33 inch (Obsolete) $430.34 1 26 Inch Models usually ships 1-5 days
037c 183-4468 Squeegee assembly soft 33 inch (Obsolete) Call for price 1 33 Inch Models usually ships 1-5 days
037d 183-4469 Squeegee assembly soft 33 inch (Obsolete) Call for price 1 26 Inch Models usually ships 1-5 days
038 999-9074 Screw 5/16-18 x 1 1/2 flat head stainless steel $0.99 3 ships same day
039 999-1236 Screw 1/4-20 x 2 1/2 round head phillips zinc plated $0.99 8 10 Required for 33 Inch Models usually ships 1-5 days
040 999-0306 Nut 1/4-20 wing zinc plated $0.99 8 10 Required for 33 Inch Models ships same day
041 999-0069 Nut 5/16-18 hex $0.99 2 ships same day
042 999-0553 Washer 5/16 medium split lock stainless steel $0.99 2 ships same day
043 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
044 183-4470 Wheel bracket assembly (Obsolete) $19.89 2 usually ships 1-5 days
048 999-0830 Screw 1/4-20 x 1 hex head plain finish $0.99 2 ships same day
049 183-4471 Lift linkage assembly (Obsolete) $34.29 1 usually ships 1-5 days
050 183-4472 Clevis (Obsolete) $46.00 1 usually ships 1-5 days
051 183-0808 Retaining ring 3/8 $1.54 1 usually ships 15-28 days
052 999-0069 Nut 5/16-18 hex $0.99 2 ships same day
053 999-0181 Nut 1/4-20 hex jam plain finish $0.99 1 ships same day
054 999-0715 Screw 1/4-20 x 3/4 cup point socket set alloy plain finish $0.99 1 ships same day
055 999-0032 Washer 3/8 USS flat plain finish $2.42 2 ships same day
