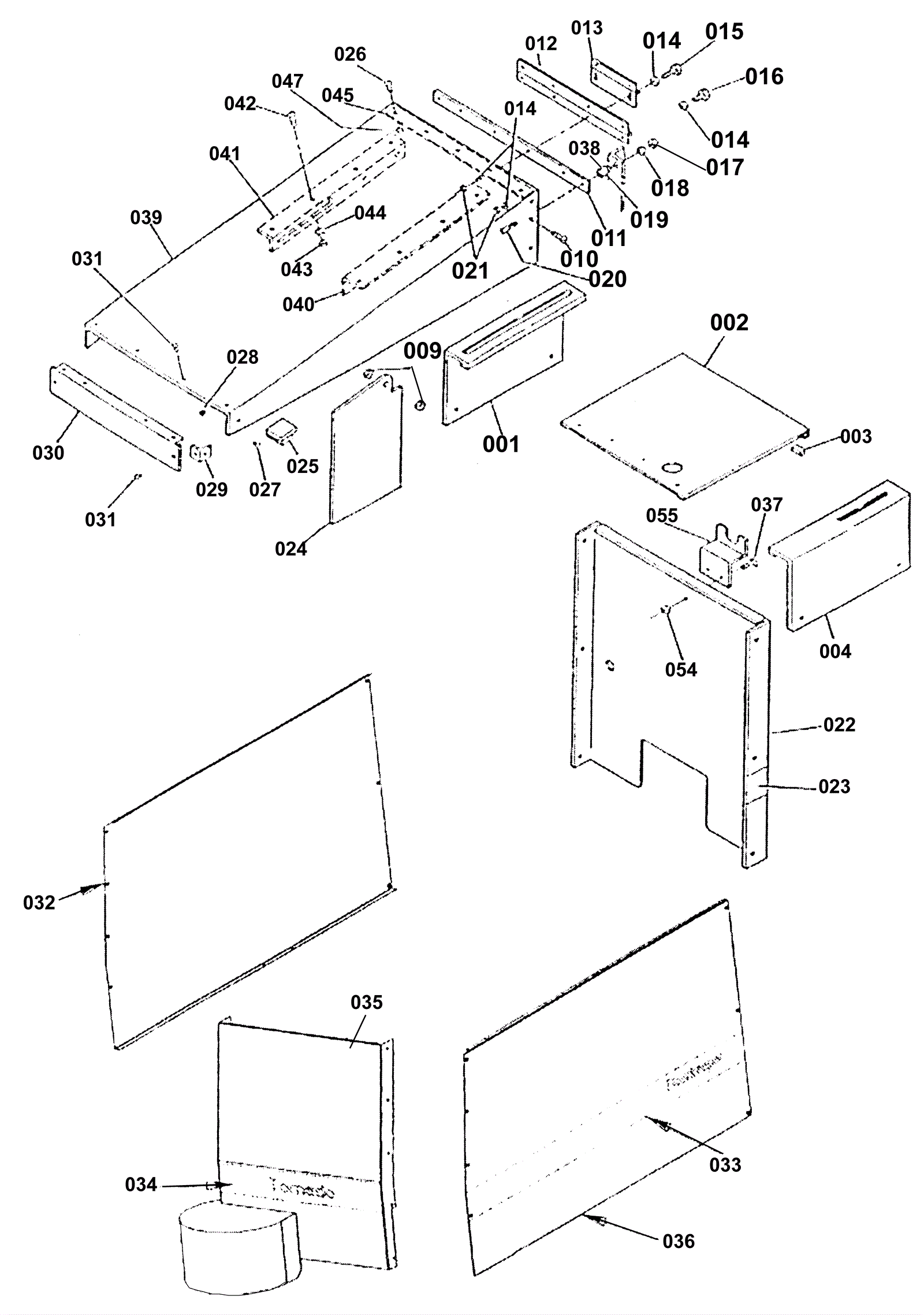

FLOORKEEPER 33 Panel and Covers

#PartDescriptionPriceReqNotesAvailability
002 183-4319 Top cover assembly (Obsolete) $79.28 1 usually ships 1-5 days
003 183-4320 Brush card pad $1.18 2 usually ships 8-21 days
004 183-4321 Upper left side panel (Obsolete) $43.76 1 usually ships 1-5 days
009 183-4322 Nut 10-32 hex lock (Obsolete) $3.06 4 usually ships 1-5 days
010 999-0726 Screw 10-32 x 5/8 pan head phillips zinc plated $0.99 2 ships same day
011 183-4323 Crossbar (Obsolete) $14.11 1 usually ships 1-5 days
012 183-4324 Hinge (Obsolete) $19.34 1 usually ships 1-5 days
013 183-4325 Hinge (Obsolete) Call for price 1 usually ships 1-5 days
014 999-0998 Washer #10 flat stainless steel $0.99 8 ships same day
015 999-1230 Screw 10-24 x 1 hex head stainless steel $3.25 2 usually ships 1-5 days
016 999-1231 Screw 10-24 x 5/8 hex head stainless steel $0.99 2 ships same day
017 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 2 ships same day
018 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
019 183-4326 Stand-off (Obsolete) $7.40 2 usually ships 1-5 days
020 183-0502 Screw $1.23 2 usually ships 1-5 days
021 999-1068 Nut 10-24 hex reversible lock zinc plated $0.99 4 ships same day
022 183-4327 Lower rear gray panel (Obsolete) $55.71 1 usually ships 1-5 days
023 183-4328 Rear decal (Obsolete) $13.76 1 usually ships 1-5 days
024 183-4329 Plastic guard (Obsolete) $18.30 2 usually ships 1-5 days
025 183-4330 Bumper pad (Obsolete) $5.00 2 usually ships 1-5 days
026 183-4331 Screw (Obsolete) Call for price 5 usually ships 1-5 days
027 183-4332 Rivet (Obsolete) $4.12 2 Included in 039 usually ships 1-5 days
028 999-0337 Nut 6-32 nylon insert lock stainless steel $0.99 2 ships same day
029 183-4334 Bracket (Obsolete) $13.18 2 Included in 039 usually ships 1-5 days
030 183-4333 Shield $23.65 1 usually ships 8-21 days
031 183-4335 Semi-tube rivet (Obsolete) $3.06 8 Included in 039 usually ships 1-5 days
032 183-4336 Right side panel (Obsolete) $52.55 1 usually ships 1-5 days
033a 183-4337 26 Inch left side label (Obsolete) Call for price 1 usually ships 1-5 days
033b 183-4338 26 Inch right side label (Obsolete) Call for price 1 usually ships 1-5 days
033c 183-4339 33 Inch left side label (Obsolete) $14.37 1 usually ships 1-5 days
033d 183-4340 33 Inch right side label (Obsolete) Call for price 1 usually ships 1-5 days
034 183-4341 Front decal (Obsolete) $11.99 1 usually ships 1-5 days
035 183-4342 Front panel (Obsolete) $124.46 1 usually ships 1-5 days
036 183-4343 Left side panel (Obsolete) $72.71 1 usually ships 1-5 days
037 999-1200 Screw 1/4-20 x 1/2 truss head slotted zinc plated $0.99 22 ships same day
038 183-4344 Nut 1/4-20 clip-on (Obsolete) $4.12 20 usually ships 1-5 days
039 183-4345 Batter cover assembly (Obsolete) $317.34 1 Includes 019, 040, 041, 045, 027, 029, 031, usually ships 1-5 days
040 183-4346 Bracket (Obsolete) Call for price 1 Included in 039 usually ships 1-5 days
041 183-4347 Right bracket (Obsolete) $16.40 1 Included in 039 usually ships 1-5 days
042 999-1200 Screw 1/4-20 x 1/2 truss head slotted zinc plated $0.99 8 ships same day
043 999-0190 Nut 1/4-20 hex plain finish $0.99 8 ships same day
044 999-0060 Washer 1/4 split lock plain finish $0.99 8 ships same day
045 183-4348 Hinge (Obsolete) $19.93 1 Included in 039 usually ships 1-5 days
047a 999-1068 Nut 10-24 hex reversible lock zinc plated $0.99 5 ships same day
047b 183-4349 Maintenance decal check list (Obsolete) $12.46 1 usually ships 1-5 days
047c 183-4350 Vacuum motor and filter decal (Obsolete) Call for price 1 usually ships 1-5 days
047d 183-4351 Wiring diagram decal (Obsolete) Call for price 1 usually ships 1-5 days
047e 183-4352 Battery caution label $6.70 1 usually ships 1-5 days
047f 183-4353 Foam filled tires decal (Obsolete) $3.06 2 usually ships 1-5 days
054 999-0015 Nut 1/4-20 k-lock zinc plated $0.99 2 ships same day
055a 183-4354 Drain hose retaining bracket $13.16 1 usually ships 1-5 days
055b 999-1174 Screw 10-24 x 7/16 pan head phillips zinc plated $0.99 4 ships same day
055c 999-1068 Nut 10-24 hex reversible lock zinc plated $0.99 4 ships same day
055d 183-0401 Pipe $17.68 8 usually ships 1-5 days
055e 999-1200 Screw 1/4-20 x 1/2 truss head slotted zinc plated $0.99 4 ships same day
055f 999-0015 Nut 1/4-20 k-lock zinc plated $0.99 4 ships same day
