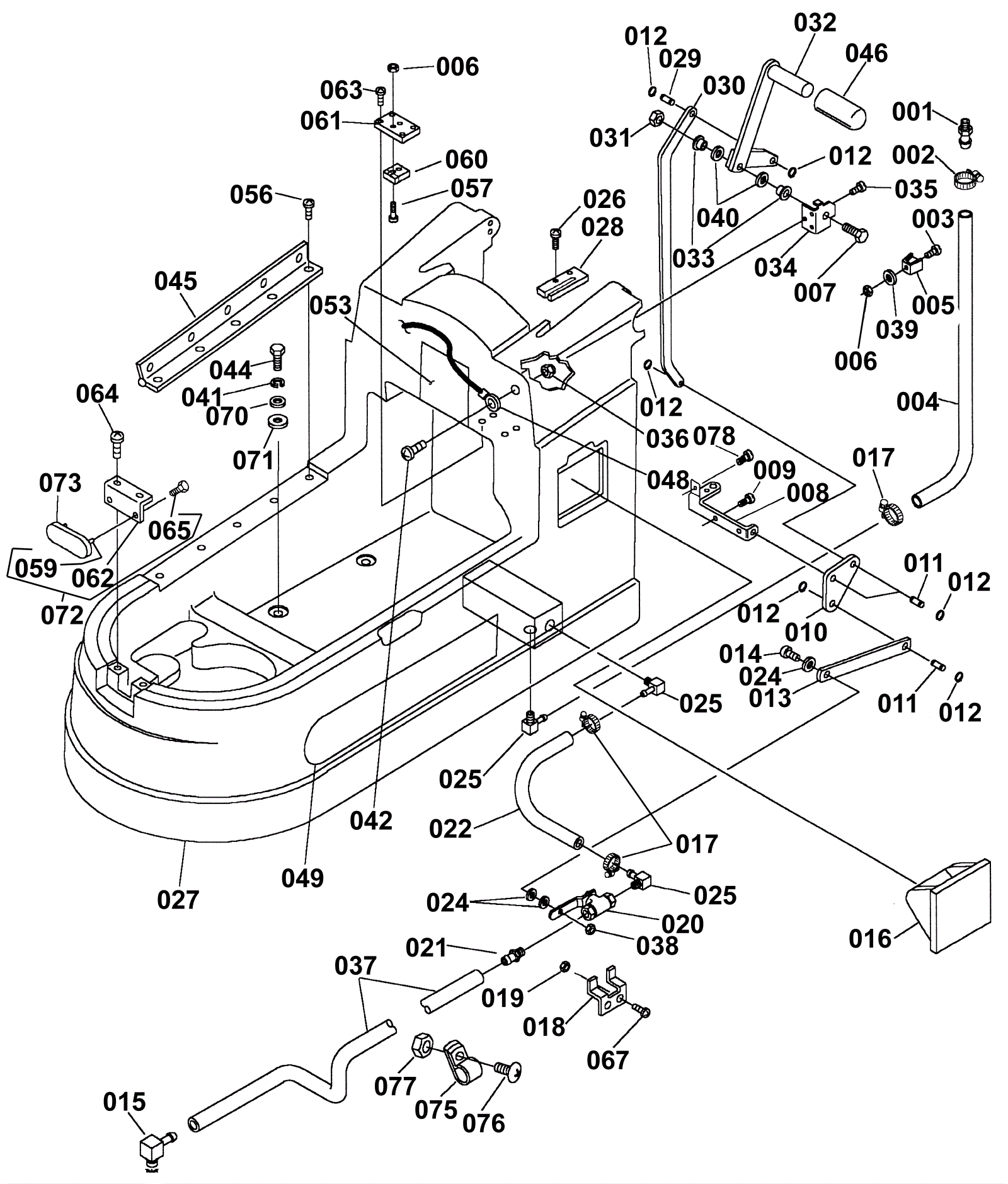

FLOORKEEPER 24 Solution Tank Assembly

#PartDescriptionPriceReqNotesAvailability
001 183-0801 Plastic coupler fitting 5/8 (Obsolete) $4.53 1 usually ships 1-5 days
002 183-0802 Hose clamp 15/16 (Obsolete) $4.53 1 usually ships 1-5 days
003 999-0147 Screw 6-32 x 3/8 round head slotted zinc plated $0.99 1 ships same day
004 183-0803 Sight tube $9.42 1 usually ships 1-5 days
005 183-0804 Sight tube clip $1.49 1 usually ships 8-21 days
006 183-0602 Nut #6-32 hex lock $1.35 3 usually ships 1-5 days
007 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 1 ships same day
008 183-0805 Solution control bracket $46.19 1 usually ships 1-5 days
009 999-0508 Screw 1/4-20 x 1/2 pan head phillips zinc plated $0.99 2 ships same day
010 183-0806 Solution control plate $46.62 1 usually ships 1-5 days
011 183-0807 Pin $21.64 3 usually ships 8-21 days
012 183-0808 Retaining ring 3/8 $1.30 8 usually ships 8-21 days
013 183-0809 Lower link bar $17.39 1 usually ships 8-21 days
014 183-0702 Screw 3/8-16 x 3/8 socket head shoulder $11.12 1 usually ships 8-21 days
015 183-0678 Plastic elbow fitting $1.93 1 usually ships 1-5 days
016 183-0810 Fill door $76.90 1 usually ships 1-5 days
017 183-0811 Hose clamp $2.22 3 usually ships 8-21 days
018 183-0812 Solution valve clamp bracket $35.16 1 usually ships 1-5 days
019 183-0641 Nut 1/4-20 hex lock $1.30 2 usually ships 1-5 days
020 183-0508 Solution valve $226.61 1 Solution release valve (only available in kit) usually ships 8-21 days
021 183-0814 Fitting $2.24 1 usually ships 8-21 days
022 183-0815 Solution tube (Obsolete) $16.16 1 usually ships 1-5 days
024 999-0032 Washer 3/8 USS flat plain finish $2.42 2 ships same day
025 190-0893 90 degree elbow $34.09 3 usually ships 10-27 days
026 183-0595 Screw 8-16 x 3/4 pan head thread forming $1.35 2 usually ships 1-5 days
027 183-0535 Solution tank $786.49 1 usually ships 1-5 days
028 183-0817 Control handle stop plate $26.42 1 usually ships 1-5 days
029 183-0818 Pin $23.53 1 usually ships 1-5 days
030 183-0819 Upper link bar $60.17 1 usually ships 1-5 days
031 999-0247 Nut 3/8-16 hex jam plain finish $0.99 1 ships same day
032 183-0820 Solution control handle weldment $114.00 1 usually ships 1-5 days
033 183-0716 Flanged bearing 3/8 bronze $1.35 2 usually ships 8-21 days
034 183-0821 Handle pivot bracket $77.72 1 usually ships 1-5 days
035 183-0822 Screw #13-9 x 3/4 fillister head $1.30 3 usually ships 1-5 days
036 999-1068 Nut 10-24 hex reversible lock zinc plated $0.99 2 ships same day
037b 183-0824 Solution tube $1.35 1 For 24 inch models usually ships 1-5 days
038 999-0069 Nut 5/16-18 hex $0.99 1 ships same day
039 999-0051 Washer #6 medium split lock $0.99 1 ships same day
040 999-0566 Washer 1/2 flat nylon $0.99 2 ships same day
041 999-0553 Washer 5/16 medium split lock stainless steel $0.99 4 ships same day
042 999-0820 Screw 10-24 x 7/8 truss head phillips zinc plated $0.99 2 ships same day
044 999-0552 Bolt 5/16-18 x 1 1/2 hex head stainless steel $1.45 4 ships same day
045 183-0826 Hinge $41.39 1 usually ships 1-5 days
046 183-4316 Handle grip $17.86 1 usually ships 1-5 days
048 183-0588 Cable assembly $29.15 1 usually ships 8-21 days
049 183-0829 Logo decal $3.32 1 usually ships 1-5 days
053 183-0830 Battery maintenance decal $3.07 1 usually ships 1-5 days
056 999-1172 Screw 1/4-20 x 1/2 truss head phillips zinc $0.99 10 ships same day
057 999-1175 Screw 6-32 x 7/8 flat head phillips stainless steel $0.99 2 ships same day
059 999-1068 Nut 10-24 hex reversible lock zinc plated $0.99 2 Included in 072 kit ships same day
060 183-0834 Charger connector (OBSOLETE) $26.68 1 usually ships 8-21 days
061 183-0835 Connector mounting plate $6.39 1 usually ships 1-5 days
062 183-0836 Light mounting bracket $13.19 1 usually ships 1-5 days
063 183-0595 Screw 8-16 x 3/4 pan head thread forming $1.35 4 usually ships 1-5 days
064 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 2 ships same day
065 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 2 Included in 072 kit ships same day
067 999-1173 Screw 1/4-20 x 5/8 round head phillips zinc plated $0.99 2 ships same day
070 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
071 999-0120 Washer 3/8 SAE flat $0.99 4 ships same day
072 183-0838 Warning light assembly kit $51.08 1 Includes 059, 062, and 065 usually ships 1-5 days
073 183-0839 Bulb (Obsolete) $8.39 2 For Warning light assembly kit -072 usually ships 1-5 days
075 183-0840 Cable clamp 5/8 $1.35 2 usually ships 1-5 days
076 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 2 ships same day
077 999-1068 Nut 10-24 hex reversible lock zinc plated $0.99 2 ships same day
078 999-1080 Screw 1/4-20 x 5/8 truss head phillips stainless steel $0.99 1 ships same day
N/S 183-0828 Access panel $32.03 1 usually ships 1-5 days
N/S 183-0831 Identification decal $1.69 1 usually ships 1-5 days
N/S 183-0832 Level gauge decal $3.39 1 usually ships 1-5 days
N/S 183-0833 Tornado decal $1.14 1 usually ships 8-21 days
N/S 183-0837 Wiring diagram decal (Obsolete) $20.69 1 usually ships 1-5 days
