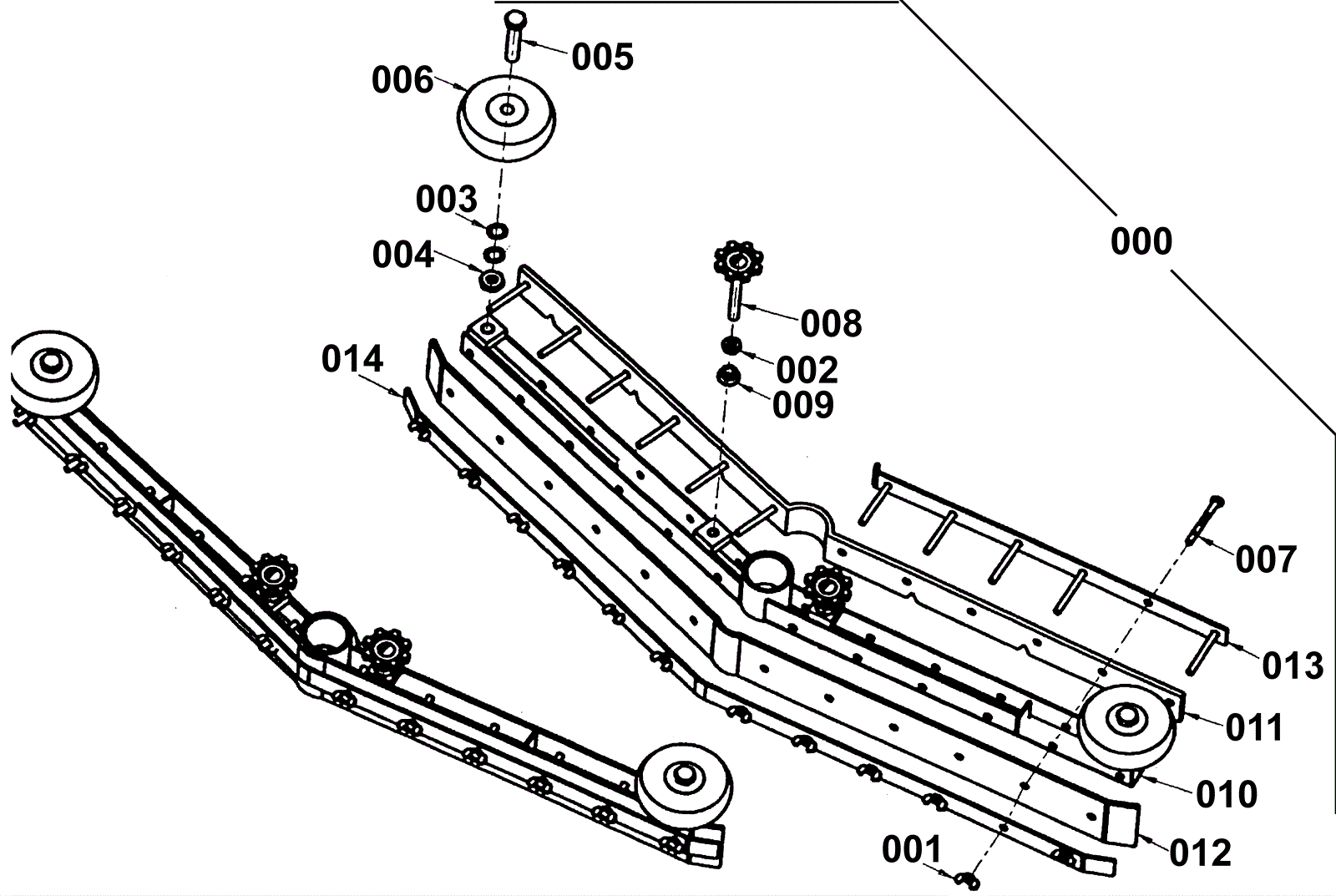

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
999-0306
|
Nut 1/4-20 wing zinc plated |
12 |
|
|
002 |
999-0247
|
Nut 3/8-16 hex jam plain finish |
2 |
|
|
003 |
183-0631
|
Washer 1/2 spring wave |
4 |
|
|
004 |
999-0050
|
Nut 1/2-13 hex jam plain finish |
2 |
|
|
005 |
999-1091
|
Bolt 1/2-13 x 2 1/2 hex cap grade 5 zinc plated |
2 |
|
|
006 |
183-0632
|
Wheel 4 x 1-1/4 inches |
2 |
|
|
007 |
999-0244
|
Bolt 1/4-20 x 2 1/2 hex head grade 5 zinc plated cap |
12 |
|
|
008 |
183-0633
|
Knob assembly (Obsolete) |
2 |
|
|
009 |
183-0735
|
Squeegee weldment 28 inch (Obsolete) |
1 |
|
|
010 |
183-0736
|
Front retainer squeegee 28 inch (Obsolete) |
2 |
|
|
011 |
999-0488
|
Nut 3/8-16 flange lock serrated zinc plated |
2 |
|
|
012 |
183-0737
|
28 inch retainer weldment (Obsolete) |
1 |
|
|
013 |
183-0738
|
Squeegee blade 28 inch front (Obsolete) |
1 |
|
|
014 |
183-0739
|
Squeegee blade 28 inch rear (OBSOLETE) |
1 |
|
|
