BR 530 99575

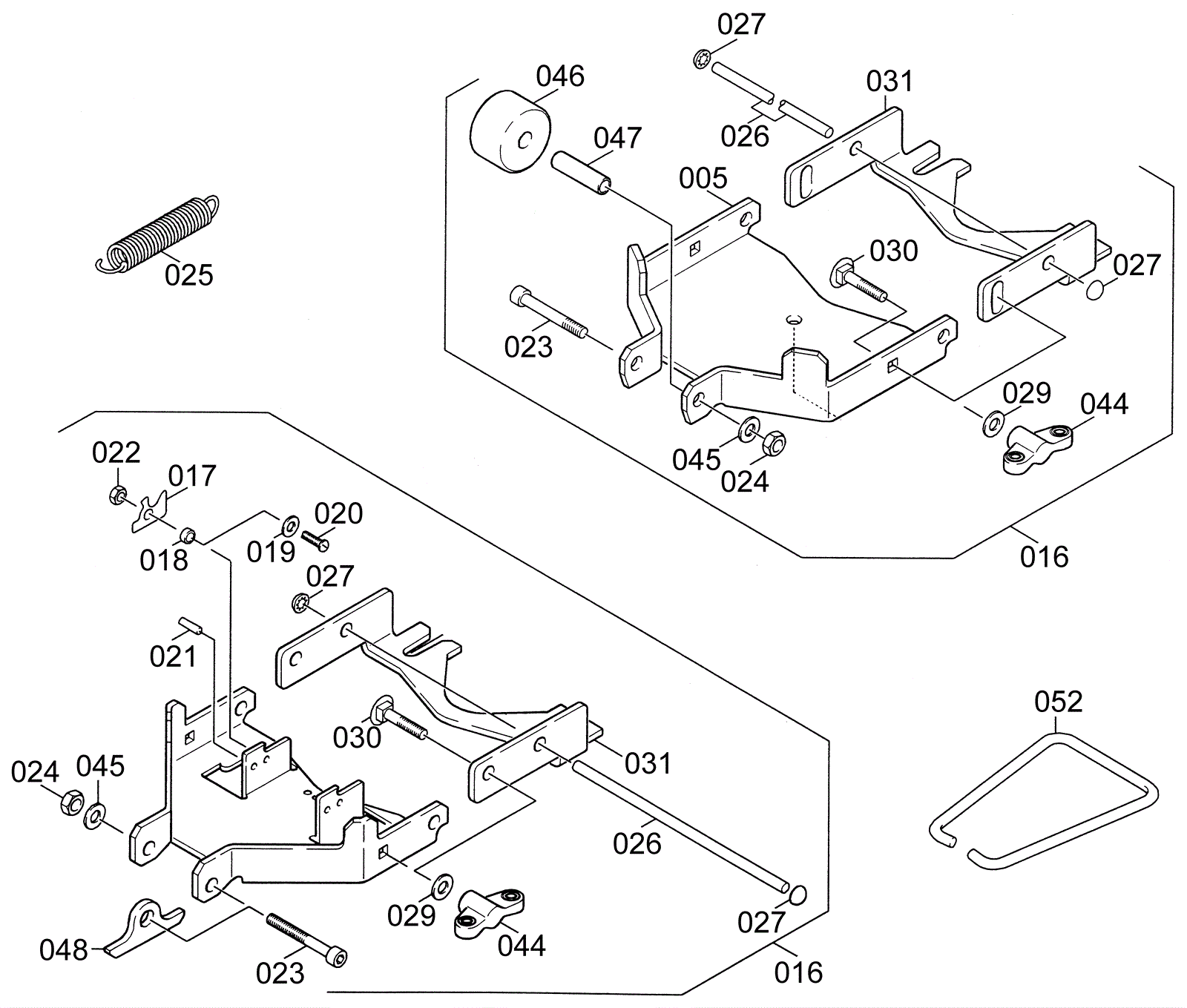

Lifting Bracket Assembly
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
005a
183-0331
Bracket
$69.45
1
usually ships 1-5 days
005b
183-0332
Bracket (Obsolete)
Call for price
1
usually ships 1-5 days
016
183-0333
Suction part
$198.05
1
usually ships 1-5 days
017
183-0334
Moulded part (Obsolete)
$8.36
1
usually ships 1-5 days
018
183-0335
Sleeve (Obsolete)
$5.00
1
usually ships 1-5 days
019
183-0181
Washer (Obsolete)
$4.12
1
usually ships 1-5 days
020
183-0336
Screw (obsolete)
$4.18
1
usually ships 1-5 days
021
183-0337
Pin (Obsolete)
$3.14
1
usually ships 1-5 days
022
183-0338
Hex nut (Obsolete)
$3.14
1
usually ships 1-5 days
023a
183-0339
Screw
$5.00
1
usually ships 9-20 days
023b
183-0340
Screw
$3.54
1
usually ships 1-5 days
024
183-0341
Hex nut
$1.48
1
usually ships 1-5 days
025
183-0207
Extension spring
$3.76
1
usually ships 1-5 days
026
183-0342
Bar
$8.67
1
ships same day
027
183-0197
Wheel cap
$2.43
2
usually ships 9-20 days
029
183-0237
Washer
$1.91
2
usually ships 1-5 days
030
183-0343
Screw
$1.00
2
ships same day
031a
183-0344
Rocker
$44.06
1
usually ships 9-20 days
031b
183-0345
Rocker (Obsolete)
$89.94
1
usually ships 1-5 days
032
183-0346
Weight (Obsolete)
$61.93
1
usually ships 1-5 days
044
183-0347
Wing nut (Obsolete)
$6.86
2
usually ships 9-20 days
045
183-0099
Washer
$1.23
1
usually ships 1-5 days
046
183-0348
Roller
$9.88
1
usually ships 9-20 days
047
183-0349
Bushing
$9.78
1
usually ships 1-5 days
048
183-0350
Moulded part (Obsolete)
Call for price
1
usually ships 1-5 days
052
183-0351
Strap (Obsolete)
$11.74
1
usually ships 1-5 days
