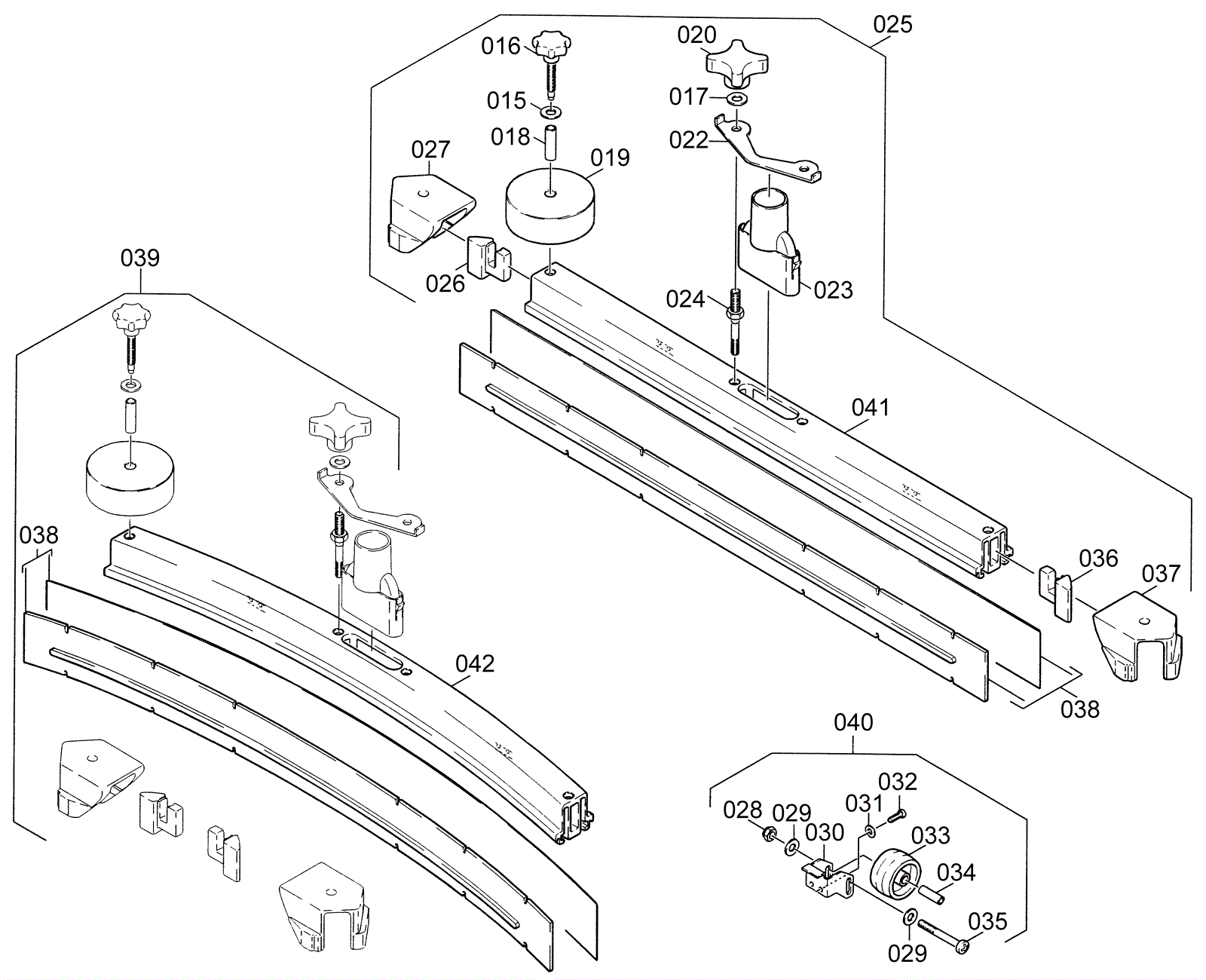

| # | Part | Description |
Req | Notes | Availability |
|---|
015a |
999-9097
|
Washer M8 flat stainless steel |
3 |
|
|
015b |
183-0099
|
Washer |
3 |
|
|
016b |
183-0310
|
Control knob (Obsolete) |
2 |
|
|
018a |
183-0311
|
Pipe |
2 |
|
|
018b |
183-0312
|
Pipe (Obsolete) |
2 |
|
|
019 |
183-0289
|
Roller wheel |
2 |
|
|
020 |
183-0284
|
Star handle |
2 |
|
|
022a |
183-0308
|
Plate |
1 |
|
|
022b |
183-0313
|
Angle (Obsolete) |
1 |
|
|
023 |
183-0314
|
Intake tube |
1 |
|
|
024 |
183-0315
|
Pin (Obsolete) |
1 |
|
|
025a |
183-0316
|
Straight squeegee beam (Obsolete) |
1 |
|
|
025b |
183-0317
|
Squeegee beam (Obsolete) |
1 |
|
|
026 |
183-0318
|
Hose |
1 |
|
|
027 |
183-0319
|
Hose |
1 |
|
|
028 |
183-0304
|
Hex nut |
1 |
|
|
029 |
999-1261
|
Washer M6 flat stainless steel |
2 |
|
|
030a |
183-0320
|
Bracket (Obsolete) |
2 |
|
|
030b |
183-0321
|
Bracket (Obsolete) |
2 |
|
|
031 |
999-9100
|
Washer M5 flat stainless steel |
2 |
|
|
032 |
183-0323
|
Screw M5-.8 x 10mm stainless steel |
2 |
|
|
033 |
183-0301
|
Wheel |
1 |
|
|
034 |
183-0303
|
Axle |
1 |
|
|
035 |
183-0302
|
Screw |
1 |
|
|
036 |
183-0324
|
Hose (Obsolete) |
1 |
|
|
037 |
183-0325
|
Hose (Obsolete) |
1 |
|
|
038a |
183-0326
|
Anti-stripe squeegee blade set |
1 |
|
|
038b |
183-0327
|
Oil-resistant squeegee blade set |
1 |
|
|
039 |
183-0328
|
Complete squeegee assembly |
1 |
|
|
040 |
183-0299
|
Support wheels kit |
2 |
|
|
041 |
183-0329
|
Profile (Obsolete) |
1 |
|
|
042 |
183-0330
|
Profile (Obsolete) |
1 |
|
|
