BR 530 99575

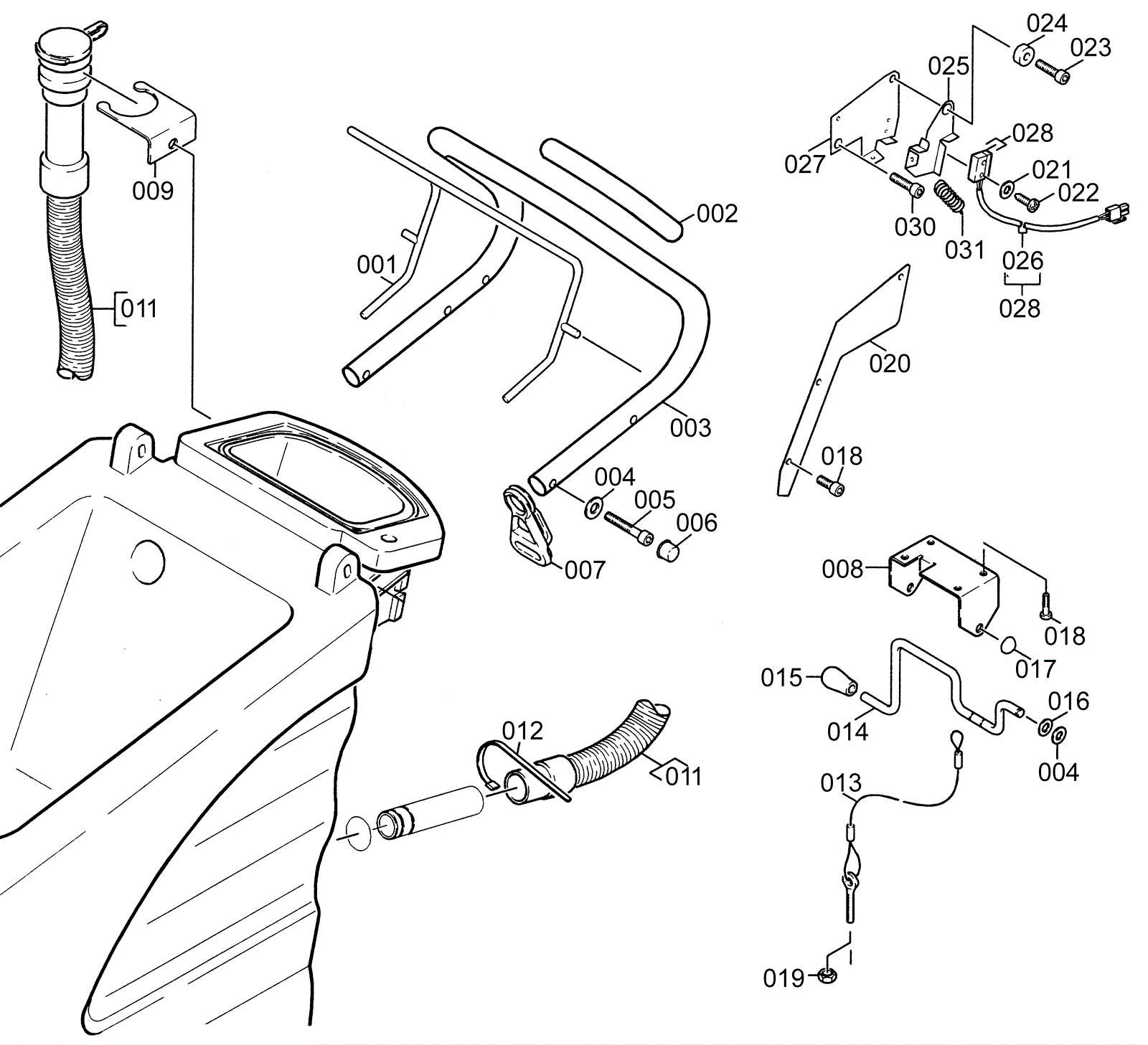

Handle Assembly 2
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
001
183-0185
Strap
$23.82
1
usually ships 1-5 days
002
183-0186
Hose
$45.94
1
usually ships 1-5 days
003
183-0187
Handle (Obsolete)
$79.33
1
usually ships 1-5 days
004
183-0099
Washer
$1.23
10
usually ships 1-5 days
005
183-0169
Cheese head screw
$21.48
4
usually ships 1-5 days
006
183-0087
Protecting cap
$20.68
4
usually ships 1-5 days
007
183-0188
Pull relief
$8.08
1
usually ships 9-20 days
008
183-0189
Bracket
$36.73
1
usually ships 1-5 days
009
183-0190
Plate
$19.83
1
usually ships 1-5 days
010
183-0182
Cheese head screw
$2.41
1
usually ships 1-5 days
011b
183-0192
Oil resistant drain hose
$147.14
1
usually ships 9-20 days
012
183-0184
Hose clamp
$8.88
2
usually ships 1-5 days
013
183-0193
Rope suction beam
$21.56
1
usually ships 1-5 days
014
183-0194
Strap (OBSOLETE)
$28.44
1
usually ships 1-5 days
015
183-0195
Switch knob
$9.10
1
usually ships 1-5 days
016
183-0196
Washer lock
$1.23
2
usually ships 1-5 days
017
183-0197
Wheel cap
$2.43
3
usually ships 9-20 days
018
183-0075
Screw 5-16 x 10.9mm
$0.99
7
usually ships 9-20 days
019
183-0199
Hex nut
$1.23
1
usually ships 1-5 days
020
183-0200
Plate
$110.88
1
usually ships 1-5 days
021
183-0163
Sheet metal screw
$21.15
2
usually ships 1-5 days
022
183-0201
Washer (Obsolete)
$3.14
2
usually ships 1-5 days
023
183-0202
Screw
$1.18
1
usually ships 1-5 days
024
183-0203
Washer (Obsolete)
Call for price
1
usually ships 1-5 days
025
183-0204
Plate
$101.80
1
usually ships 1-5 days
026
183-0175
Insulating hose
$18.43
1
usually ships 1-5 days
027
183-0205
Plate
$80.06
1
usually ships 1-5 days
028
183-0164
Switch
$50.06
1
usually ships 1-5 days
030
183-0206
Screw
$1.18
1
usually ships 1-5 days
031
183-0207
Extension spring
$3.76
1
usually ships 1-5 days
