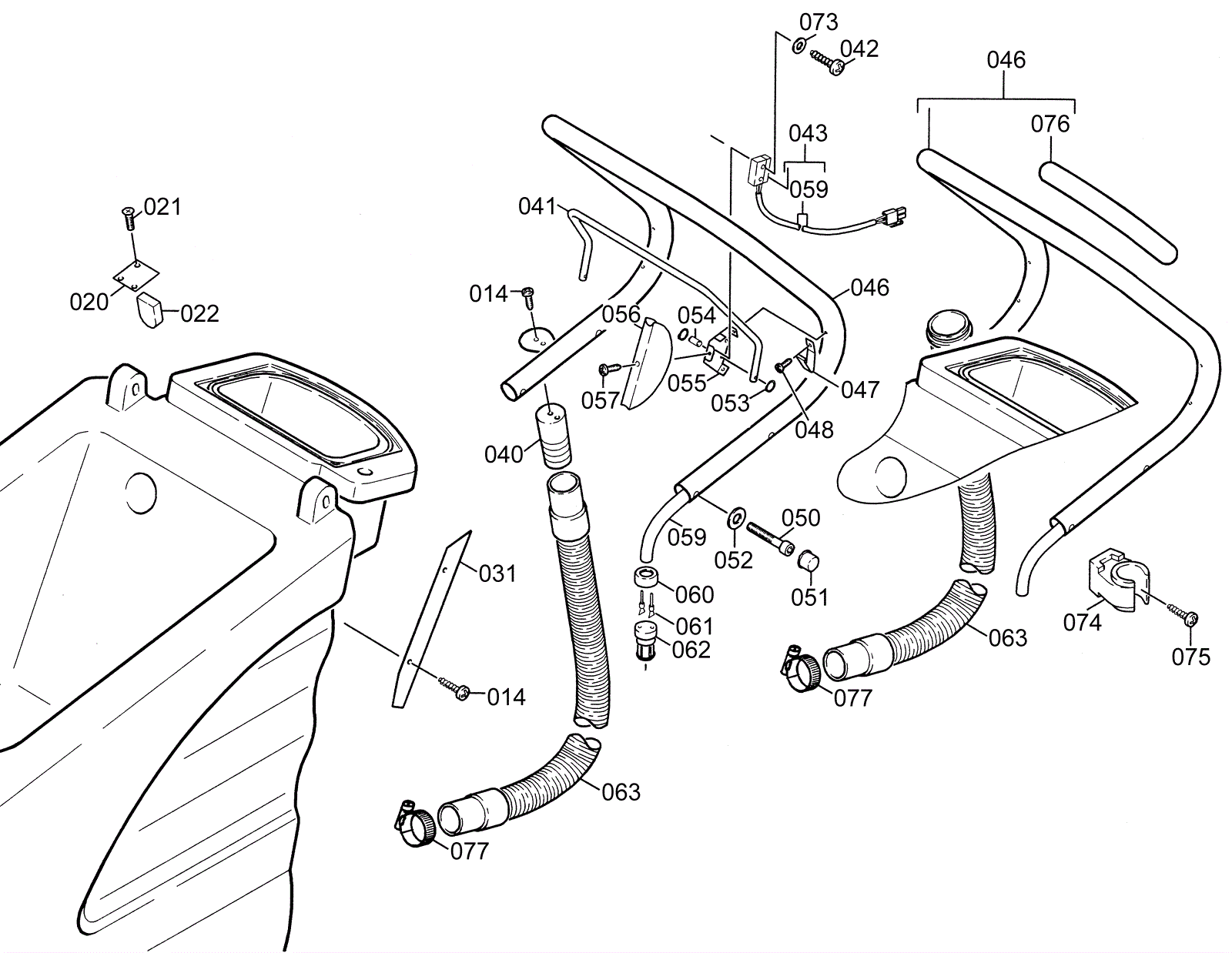

BR 530 99575 Handle Assembly 1

#PartDescriptionPriceReqNotesAvailability
014 183-0180 Drain hose (OBSOLETE) $55.30 3 usually ships 15-28 days
020 183-0157 Retainer clip (Obsolete) $15.24 1 usually ships 1-5 days
021 183-0158 Flat head screw (Obsolete) $2.05 3 usually ships 1-5 days
022 183-0159 Seal (Obsolete) $5.50 2 usually ships 1-5 days
031 183-0160 Plate (Obsolete) $13.32 1 usually ships 1-5 days
040 183-0161 Drain hose cap $6.19 1 usually ships 15-28 days
041 183-0162 Strap $39.79 1 usually ships 1-5 days
042 183-0163 Sheet metal screw $23.27 2 usually ships 1-5 days
043 183-0164 Switch $55.07 1 usually ships 1-5 days
046a 183-0165 Handle $95.01 1 usually ships 1-5 days
046b 183-0166 Handle (Obsolete) Call for price 1 usually ships 1-5 days
047 183-0167 Plate spring $87.73 1 usually ships 1-5 days
048 183-0168 Screw $1.54 4 usually ships 1-5 days
050 183-0169 Cheese head screw $23.63 4 usually ships 1-5 days
051 183-0087 Protecting cap $22.75 4 usually ships 1-5 days
052 999-9097 Washer M8 flat stainless steel $0.99 4 ships same day
053 183-0170 Washer lock $1.54 4 usually ships 1-5 days
054 183-0171 Bolt $36.84 2 usually ships 1-5 days
055 183-0172 Bracket $59.26 2 usually ships 1-5 days
056 183-0173 Covering cap $85.40 1 usually ships 1-5 days
057 183-0174 Sheet metal screw $19.73 2 usually ships 1-5 days
059 183-0175 Insulating hose $20.27 1 usually ships 1-5 days
060 183-0176 Rubber cap $19.29 1 usually ships 1-5 days
061 183-0177 Pin $20.27 3 usually ships 1-5 days
062 183-0178 Plug housing $39.00 1 usually ships 1-5 days
063a 183-0192 Oil resistant drain hose $161.85 1 usually ships 15-28 days
063b 183-0180 Drain hose (OBSOLETE) $55.30 1 usually ships 15-28 days
073 183-0181 Washer (Obsolete) $4.53 2 usually ships 1-5 days
074 183-0092 Pipe clip $23.53 1 usually ships 1-5 days
075 183-0182 Cheese head screw $2.65 1 usually ships 1-5 days
076 183-0183 Hose (Obsolete) $15.99 1 usually ships 1-5 days
077 183-0184 Hose clamp $9.77 1 usually ships 1-5 days
