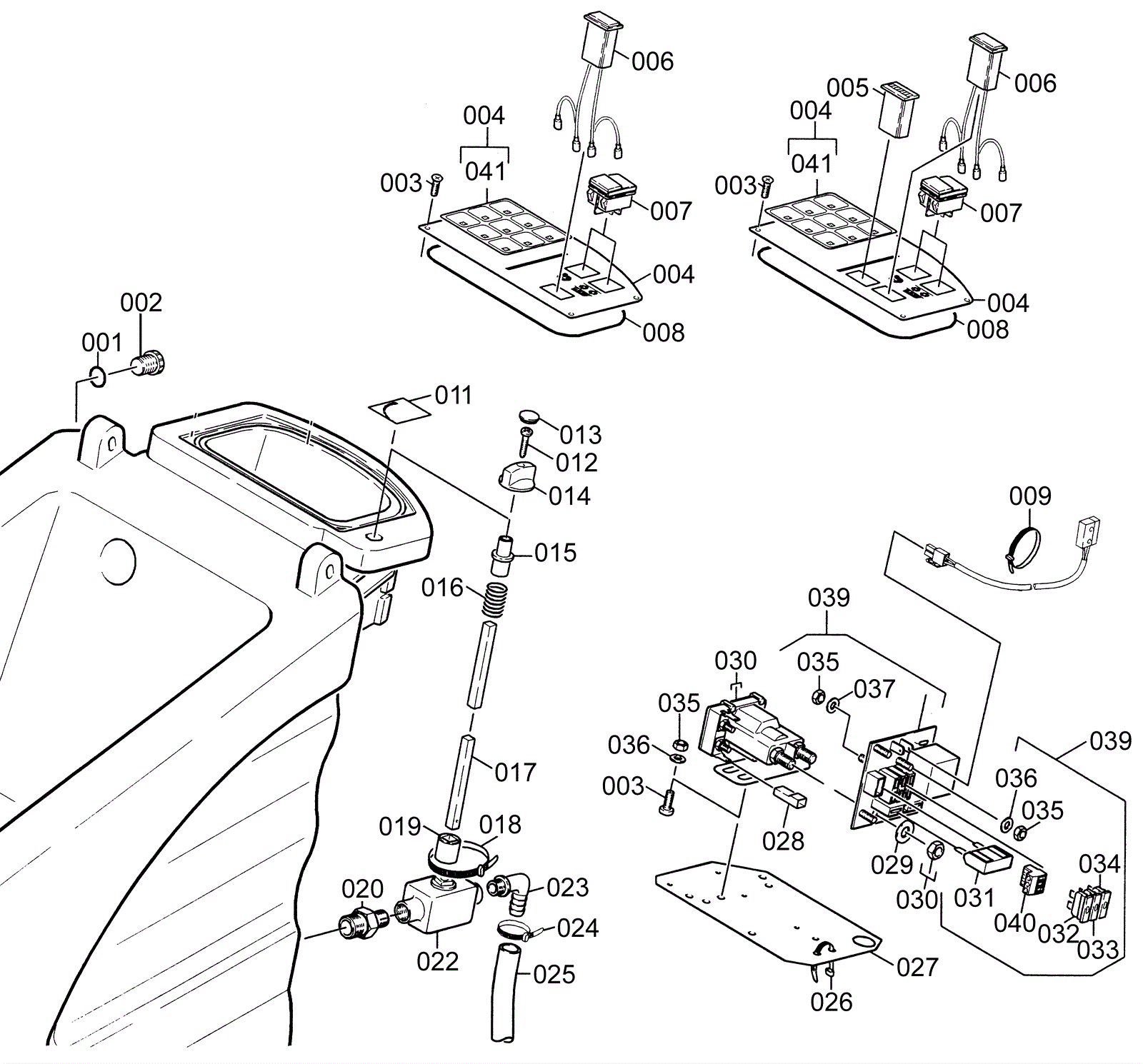

BR 530 99575 Control Panel Assembly 2

#PartDescriptionPriceReqNotesAvailability
001 183-0131 Seal (Obsolete) $4.60 1 usually ships 1-5 days
002 183-0132 Closure $1.30 1 usually ships 1-5 days
003 183-0133 Screw $1.54 6 usually ships 1-5 days
004a 183-0134 Control panel (OBSOLETE) $48.37 1 usually ships 15-28 days
004b 183-0135 Control panel $184.93 1 usually ships 1-5 days
005 183-0136 Hour meter (Obsolete) Call for price 1 usually ships 1-5 days
006a 183-0137 Electric Equipment (Obsolete) Call for price 1 usually ships 1-5 days
006b 183-0109 Battery monitor $392.70 1 usually ships 1-5 days
007 183-0110 Switch $49.47 2 usually ships 1-5 days
008 183-0138 Cellular rubber cord (Obsolete) Call for price 1 usually ships 1-5 days
009 183-0139 Cable tie (Obsolete) $3.45 1 usually ships 1-5 days
011 183-0113 Decal (Obsolete) $12.35 1 usually ships 1-5 days
012 183-0140 Sheet metal screw $1.54 1 usually ships 15-28 days
013 183-0114 Ornamental hub cap $1.30 1 usually ships 1-5 days
014 183-0116 Handle $16.64 1 usually ships 1-5 days
015 183-0117 Coupler $8.72 1 usually ships 15-28 days
016 183-0118 Helecal spring $1.54 1 usually ships 15-28 days
017a 183-0119 Bar $26.60 1 usually ships 1-5 days
017b 183-0141 Bar (Obsolete) Call for price 1 usually ships 1-5 days
018 183-0142 Tie band $1.54 6 usually ships 1-5 days
019 183-0120 Coupler $7.18 1 usually ships 15-28 days
020 183-0143 Double nipple connector $27.92 1 usually ships 1-5 days
023 183-0122 Angle Socket $8.14 1 usually ships 1-5 days
024 183-0123 Hose clamp $7.51 1 usually ships 1-5 days
025 183-0124 Hose $1.30 2 usually ships 1-5 days
026 183-0144 Cable tie (Obsolete) $3.45 1 usually ships 1-5 days
027 183-0145 Plate (Obsolete) $31.61 1 usually ships 1-5 days
028 183-0146 Insulating house $1.54 11 usually ships 1-5 days
029 999-9097 Washer M8 flat stainless steel $0.99 4 ships same day
030 183-0148 Power relay $139.47 1 usually ships 1-5 days
031 183-0149 Fuse insert $5.06 1 usually ships 1-5 days
032 183-0150 Fuse insert $13.84 1 usually ships 1-5 days
033 183-0151 Fuse insert $2.64 1 usually ships 1-5 days
034 183-0152 Fuse insert $24.18 1 usually ships 1-5 days
035 183-0153 Hex nut (Obsolete) $3.45 9 usually ships 1-5 days
036 183-0154 Washer (Obsolete) $3.45 3 usually ships 1-5 days
037 183-0129 Washer (Obsolete) $3.45 4 usually ships 1-5 days
040 183-0156 Plug (Obsolete) Call for price 1 usually ships 1-5 days
041 183-0106 Decal $4.62 1 usually ships 1-5 days
