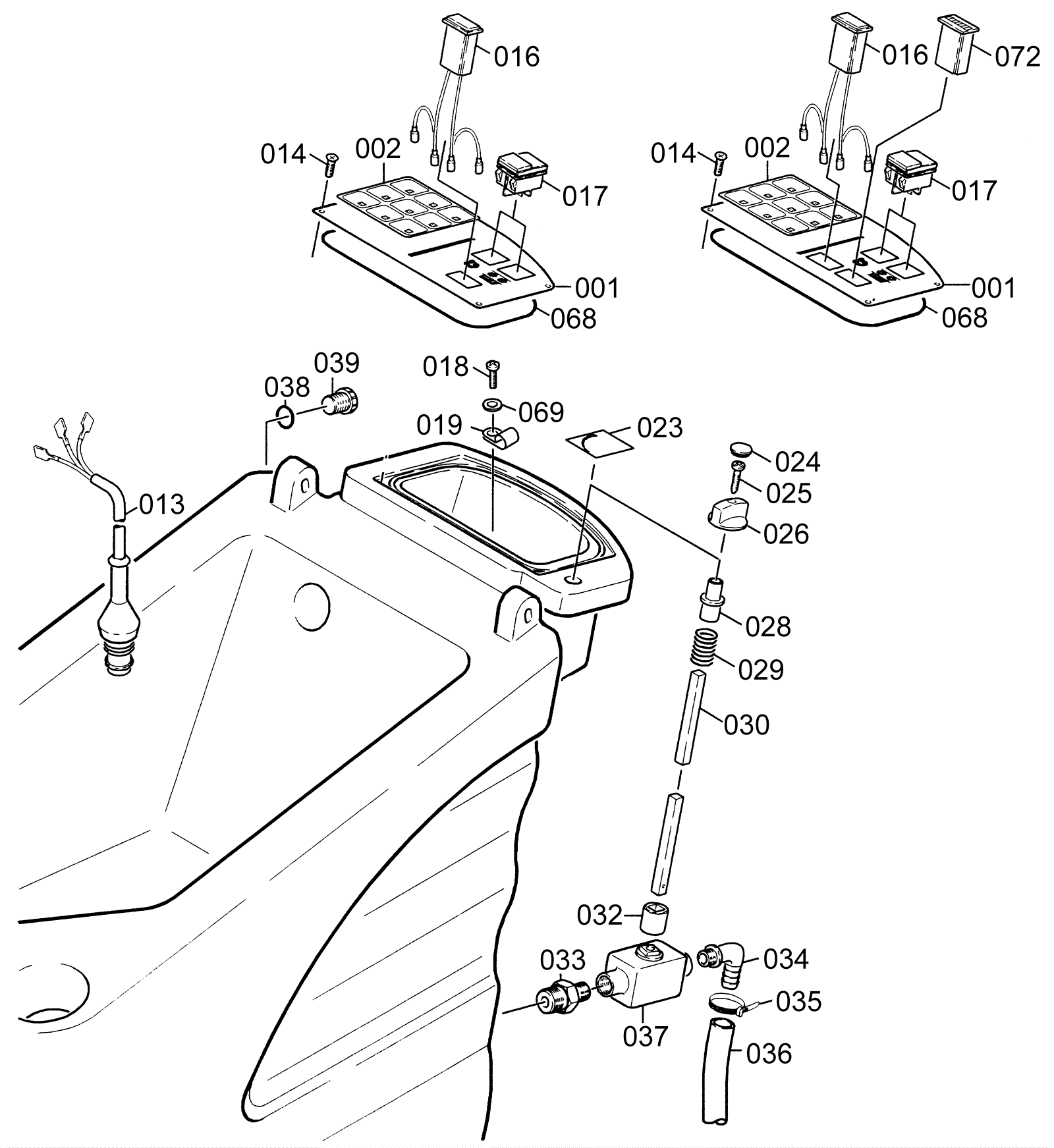

| # | Part | Description |
Req | Notes | Availability |
|---|
001a |
183-0104
|
Control panel (OBSOLETE) |
1 |
|
|
001b |
183-0105
|
Control panel |
1 |
|
|
002 |
183-0106
|
Decal |
1 |
|
|
013 |
183-0107
|
Electric parts (Obsolete) |
1 |
|
|
014 |
183-0108
|
Screw M4-10.9 x 16mm oval head |
4 |
|
|
016 |
183-0109
|
Battery monitor |
1 |
|
|
017 |
183-0110
|
Switch |
2 |
|
|
018 |
183-0111
|
Screw (Obsolete) |
1 |
|
|
019 |
183-0112
|
Pipe clamp (Obsolete) |
1 |
|
|
023 |
183-0113
|
Decal (Obsolete) |
1 |
|
|
024 |
183-0114
|
Ornamental hub cap |
1 |
|
|
025 |
183-0115
|
Sheet metal screw (Obsolete) |
1 |
|
|
026 |
183-0116
|
Handle |
1 |
|
|
028 |
183-0117
|
Coupler |
1 |
|
|
029 |
183-0118
|
Helecal spring |
1 |
|
|
030 |
183-0119
|
Bar |
1 |
|
|
032 |
183-0120
|
Coupler |
1 |
|
|
033 |
183-0121
|
Double nipple |
1 |
|
|
034 |
183-0122
|
Angle Socket |
1 |
|
|
035 |
183-0123
|
Hose clamp |
2 |
|
|
036 |
183-0124
|
Hose |
1 |
|
|
038 |
183-0126
|
Gasket |
1 |
|
|
039 |
183-0127
|
Closing screw |
1 |
|
|
068 |
183-0128
|
Cellular rubber cord |
1 |
|
|
069 |
183-0129
|
Washer (Obsolete) |
1 |
|
|
072 |
183-0130
|
Hour meter (Obsolete) |
1 |
|
|
