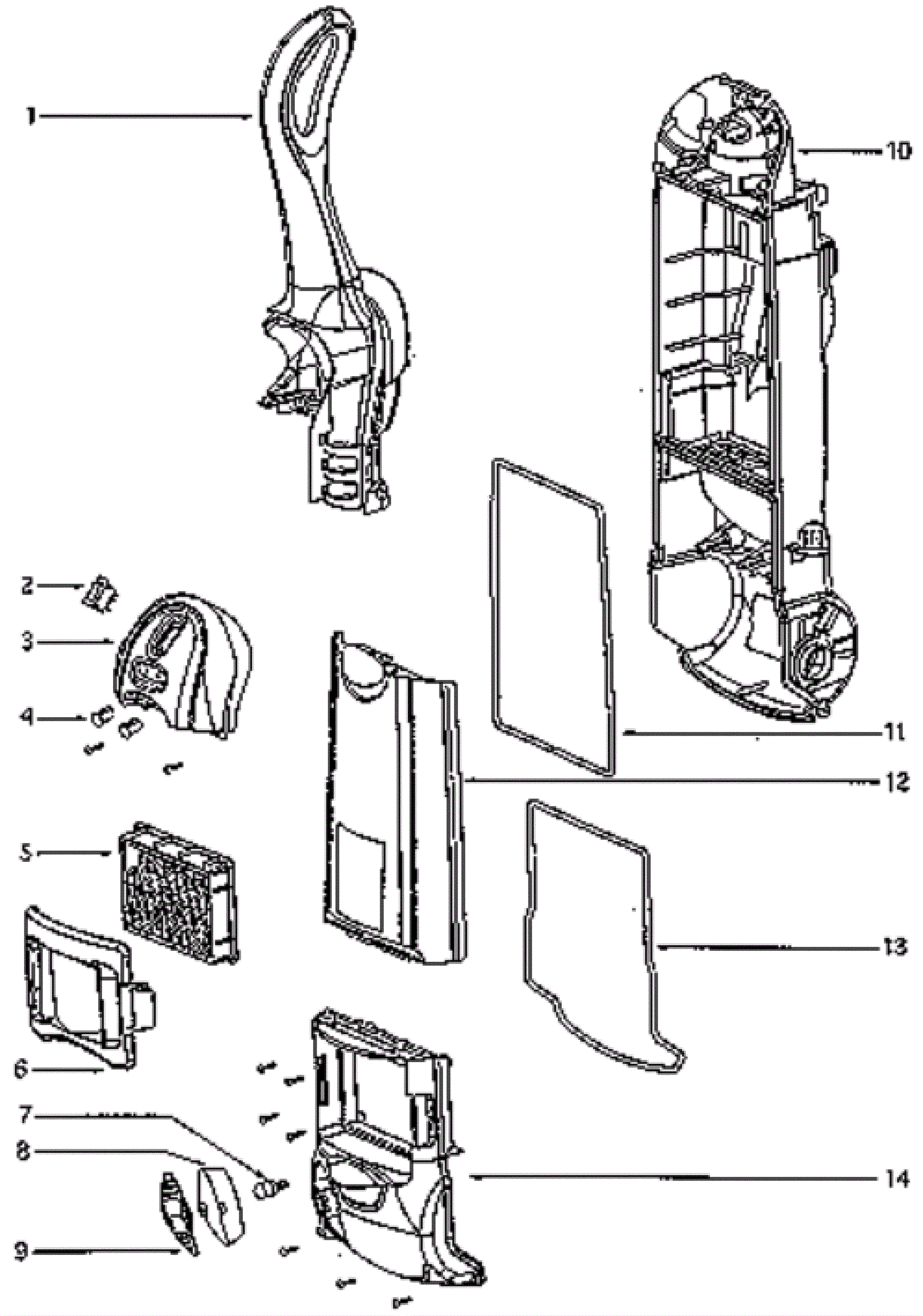

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
182-8345
|
Upper handle assembly (OBSOLETE) |
1 |
|
|
1b |
182-8284
|
Cord release |
1 |
|
|
1c |
182-8346
|
Hose hook (OBSOLETE) |
1 |
|
|
2 |
182-0622
|
Rocker switch |
1 |
|
|
3 |
182-8326
|
Control panel |
1 |
|
|
4 |
N/A
|
Not available |
|
|
|
5 |
182-2059
|
Hepa filter |
1 |
|
|
6 |
182-8357
|
Cover (OBSOLETE) |
1 |
|
|
7 |
182-0863
|
Headlight |
1 |
|
|
8 |
182-8327
|
Light shield |
1 |
|
|
9 |
N/A
|
Not available |
|
|
|
10 |
182-8328
|
Rear housing (OBSOLETE) |
1 |
|
|
11 |
182-8329
|
Gasket bag chamber |
1 |
|
|
12a |
182-8330
|
Bag cover (OBSOLETE) |
1 |
(includes 12b and 14) |
|
12b |
182-8347
|
Latch spring (OBSOLETE) |
1 |
|
|
13 |
182-8331
|
Motor cover gasket |
1 |
|
|
14 |
182-8332
|
Motor cover |
1 |
|
|
