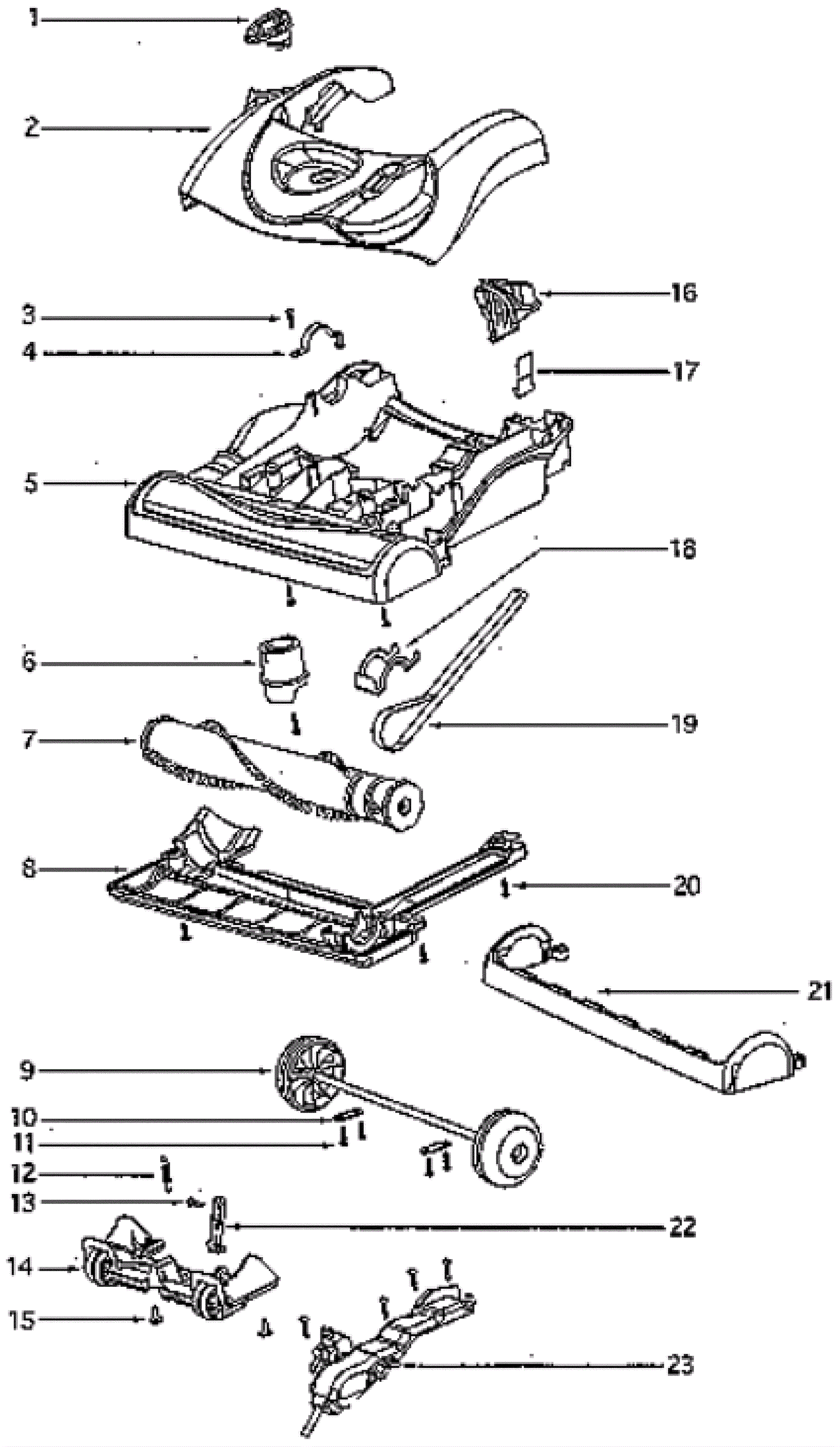

ULTRA SMART 4870 Base and Hood Assembly

#PartDescriptionPriceReqNotesAvailability
1 182-8319 Height adjustment knob $7.25 1 usually ships 1-5 days
2 182-8320 Hood assembly $13.74 1 usually ships 1-5 days
3 182-0836 Screw 10 pack (OBSOLETE) $3.29 1 usually ships 6-16 days
4 182-0112 Clamp $3.95 1 usually ships 1-5 days
5a 182-7993 Base, w/furniture guard (OBSOLETE) $40.91 1 usually ships 6-16 days
5b 182-8071 Furniture guard $7.14 1 usually ships 6-16 days
6 182-8321 Actuator adjuster $6.04 1 usually ships 1-5 days
7 182-7991 Brush roll assembly $33.65 1 usually ships 1-5 days
8 182-8070 Bottom plate assembly (OBSOLETE) $13.85 1 usually ships 6-16 days
9a 182-8322 Rear wheel and axle assembly (OBSOLETE) $10.88 1 usually ships 1-5 days
9b 182-8342 Rear wheel (OBSOLETE) Call for price 2 usually ships 1-5 days
9c 182-8343 Rear axle (OBSOLETE) Call for price 1 usually ships 1-5 days
10 182-0033 Axle clamp $4.60 1 usually ships 6-16 days
11 182-2441 Screw $5.15 1 usually ships 6-16 days
12 182-0586 Spring package $7.81 1 ships same day
13 182-8352 Screw (OBSOLETE) Call for price 1 usually ships 1-5 days
14a 182-8344 Wheel carriage assembly (OBSOLETE) Call for price 1 usually ships 1-5 days
14b 182-8325 Front axle $6.04 1 usually ships 1-5 days
14c 182-0657 Front wheel $3.66 2 usually ships 6-16 days
15 182-8201 Screws $8.24 1 usually ships 6-16 days
16 182-8353 Release (OBSOLETE) Call for price 1 usually ships 1-5 days
17 182-8354 Spring (OBSOLETE) Call for price 1 usually ships 1-5 days
18 182-8323 Felt gasket (OBSOLETE) $6.04 1 usually ships 1-5 days
19 182-0941 Belt (OBSOLETE) $6.58 1 usually ships 6-16 days
20 182-8355 Vacuum screw (10 pack) (OBSOLETE) Call for price 1 usually ships 1-5 days
21 N/A Not available Call for price usually ships 3-26 days
22 182-8324 Arm linkage $6.04 1 usually ships 1-5 days
23 182-7992 Idler/clamp assembly (OBSOLETE) $15.17 1 usually ships 6-16 days
N/S 182-8325 Front axle $6.04 1 usually ships 1-5 days
N/S 182-8356 Soleplate (OBSOLETE) Call for price 1 usually ships 1-5 days
