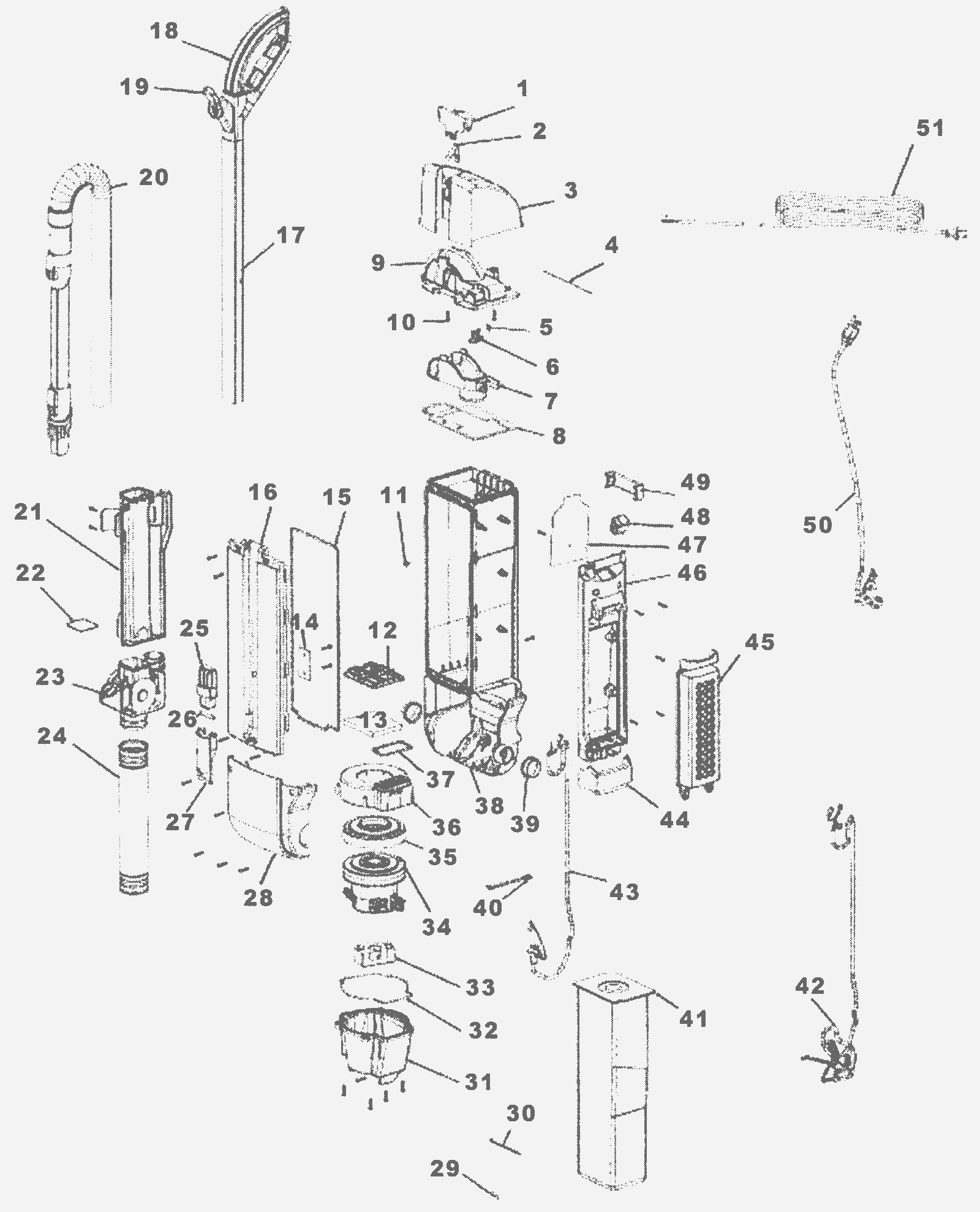

Body Assembly

#PartDescription ReqNotesAvailability
1 182-8192 Top cover latch 1
2 182-8193 Top cover spring 1
3 182-8194 Cover top 1
4 182-8195 Top cover hing pin 1
5 N/A Not available 1 (spring package)
6 182-8197 Bag Lever 1
7 182-8198 Bag inlet 1
8 182-8199 Top cover gasket 1
9 182-8200 Inlet cover 1
10 182-0836 Screw 10 pack (OBSOLETE) 1
11 182-8201 Screws 1
12 182-1020 Motor filter grill (OBSOLETE) 1
13 182-1021 Filter 1
14 182-8202 Plate clamp 1
15 182-8203 Front cover gasket 1
16 182-8204 Front cover 1
17 N/A Not available 1 (tube handle)
18 N/A Not available 1 (upper handle assembly)
19 N/A Not available 1 (quick cord release)
20 182-2073 Hose and wand assembly 1
21 182-8207 Dirt tube 1
22 182-8208 Dirt tube gasket 1
23 182-8209 Valve assembly 1
24 182-8235 Hose connector 1
25 182-8210 Lower cord hook adapter 1
26 182-8211 Cord hook shaft 1
27 182-8212 Lower cord hook 1
28 182-8213 Motor cover 1
29 182-0359 Wire splice 5 1
30 N/A Not available 1 (cable tie)
31 182-1044 Motor shroud 1
32 182-8214 Motor shroud gasket 1
33 182-8215 Suction motor 1
34 182-1043 Motor assembly 1
35 182-8216 Motor can gasket 1
36 182-8217 Motor cover shroud 1
37 182-8218 Motor cover shroud gasket 1
38 182-8219 Rear housing assembly 1
39 182-8220 Nylon bushing 1
40 182-8221 Thermostat and terminal assembly 1
41a 182-8078 Vacuum bags style SD (pkg of 5) 1
41b 991-9065 Paper vacuum bags (pkg of 10) 1 (NON-OEM)
42 182-8222 Upper jumper cord 1
43 182-8223 Motor jumper wire 1
44 182-8224 HEPA shroud cover 1
45 182-8305 Washable HEPA filter 1
46 182-8225 HEPA shroud (OBSOLETE) 1
47 182-8226 Vulcanized paper 1
48 182-8227 Rocker switch 1
49 182-8304 Rear carry handle 1
50 182-8229 Supply cord assembly (OBSOLETE) 1
51 182-1038 50 foot extension cord 1
