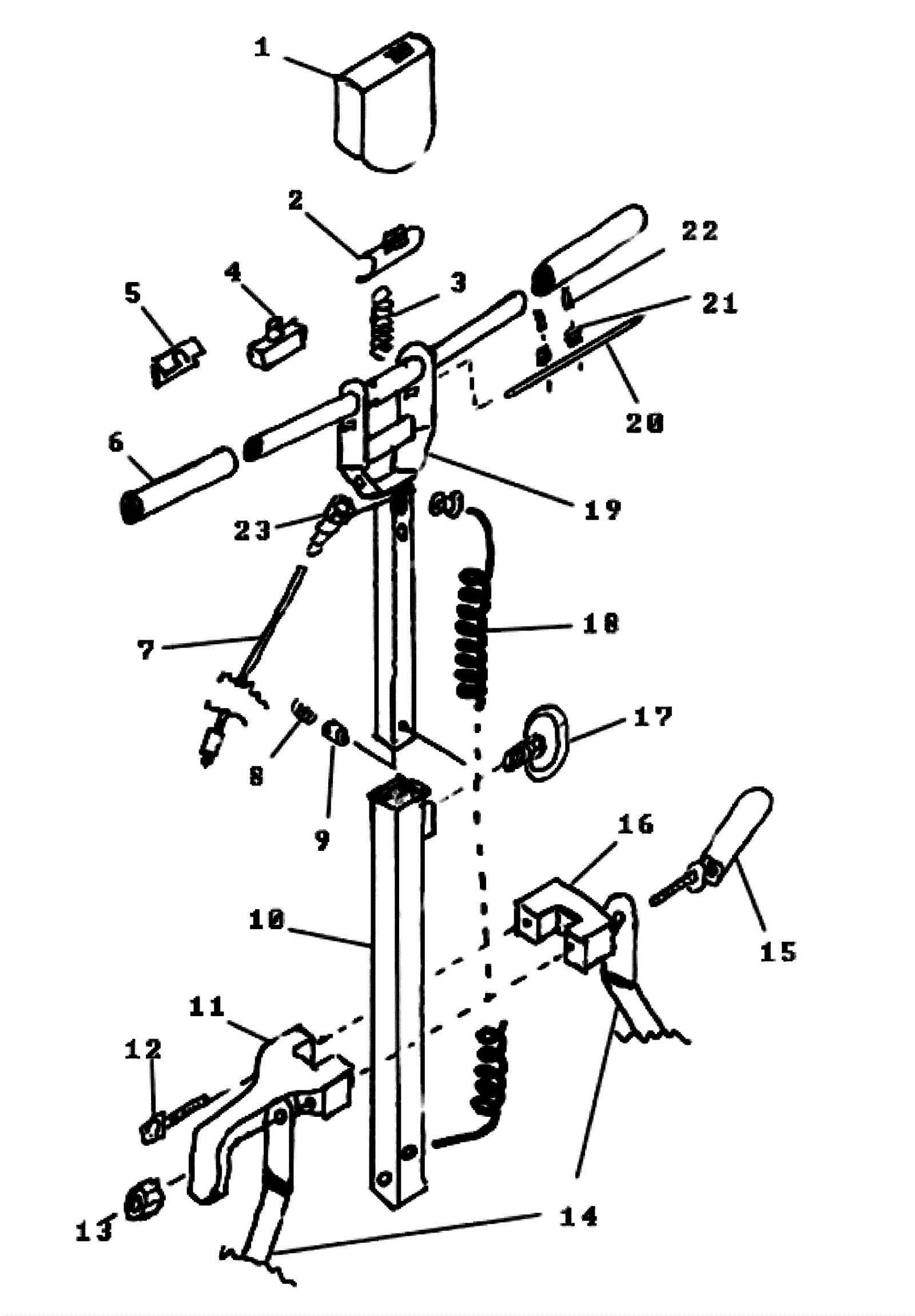

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
163-0275
|
Switch box cover |
|
|
|
2 |
163-0065
|
Safety switch kit |
|
|
|
3 |
163-0867
|
Extension spring (pkg of 6) |
|
|
|
4 |
163-0054
|
On/off switch kit |
|
|
|
5 |
163-0092
|
Switch insulation |
|
|
|
6 |
163-0818
|
Handle grip (gray) |
|
|
|
7 |
163-0107
|
Power cord (OBSOLETE) |
|
|
|
8 |
163-0070
|
Trigger spring |
|
|
|
9 |
163-0819
|
Spacer |
|
|
|
10 |
163-0820
|
Lower handle |
|
|
|
11 |
163-0821
|
Cord hook |
|
|
|
12 |
999-0041
|
Bolt 3/8-16 x 2 1/2 hex head full thread grade 5 zinc plated |
|
|
|
13 |
999-0188
|
Nut 3/8-16 nylon insert lock zinc plated |
|
|
|
14 |
163-0026
|
Connecting leg kit |
|
|
|
15 |
163-0077
|
Cam lock assembly |
|
|
|
16 |
163-0822
|
Clamp |
|
|
|
17 |
163-0823
|
Screw (OBSOLETE) |
|
|
|
18 |
163-0824
|
Cord assembly |
|
|
|
19 |
163-0825
|
Upper handle |
|
|
|
20 |
163-0071
|
Trigger |
|
|
|
21 |
163-0070
|
Trigger spring |
|
|
|
22 |
163-0091
|
Roll pin (pkg of 6) |
|
|
|
23 |
163-0376
|
Strain relief assembly |
|
|
|
