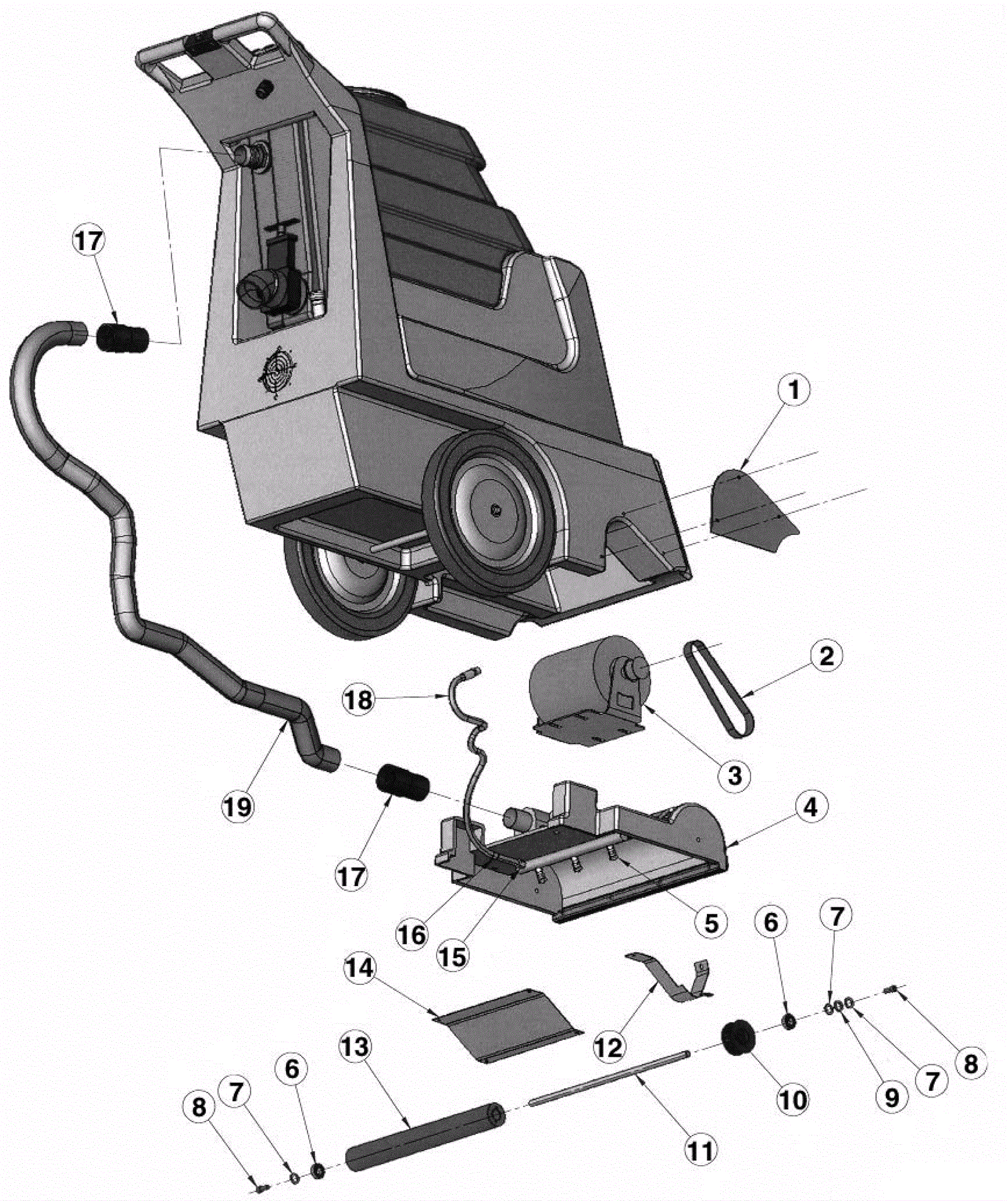

Power Head Assembly

#PartDescription ReqNotesAvailability
1 182-2337 Side belt guard 1
2 182-2338 Belt 1
3 182-2339 1/4 hp motor 1
4 182-8008 Powerhead assembly 1
5 231-0242 Jet 1
6 182-1071 Brush bearing 2
7 182-2341 Washer 3
8 182-2342 Screw 2
9 182-2343 Washer 1
10 182-2344 Pulley 1
11 182-2345 Brush shaft (OBSOLETE) 1
12 182-2346 Pulley guard 1
13 182-2347 Brush (OBSOLETE) 1
14 182-2348 Brush plate guard 1
15 182-2349 Fitting 1
16 182-2350 Clip 1
17 231-4044 Hose cuff 2
18 182-2351 Hose 1
19 182-2352 Vacuum hose 1
