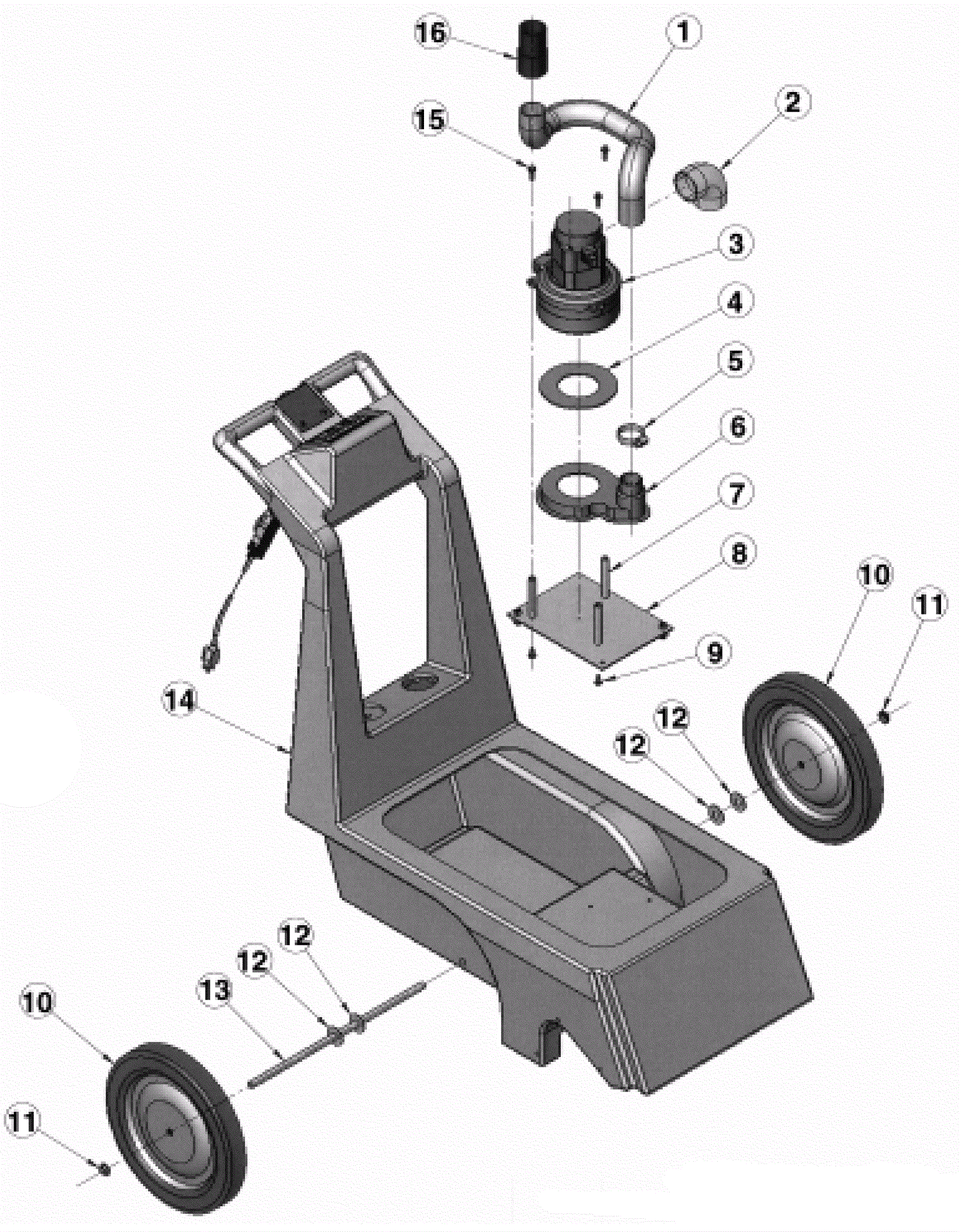

Vacuum Motor and Wheel Assembly

#PartDescription ReqNotesAvailability
1 182-2366 1 1/2 inch vacuum hose 1
2 182-2367 90 degree elbow 1
3 182-2307 115V 2 stage vacuum motor (OBSOLETE) 1
4 231-0004 Vac motor gasket 1
5 231-2908 2 1/4 inch hose clamp 1
6 231-2918 Manifold (OBSOLETE) 1
7 182-2368 Vacuum support 4
8 231-4042 Plate (OBSOLETE) 1
9 999-0821 Bolt 1/4-20 x 1/2 hex head grade 9 yellow zinc 4
10 231-0018 Wheel 12 inch (OBSOLETE) 2
11 231-0019 Axle cap 2
12 231-2882 Washer 1/2 4
13 182-2369 Axle 1
14 182-2390 Base 1
15 231-4001 1/4-20 X 3/4 inch bolt 3
16 231-4044 Hose cuff 1
