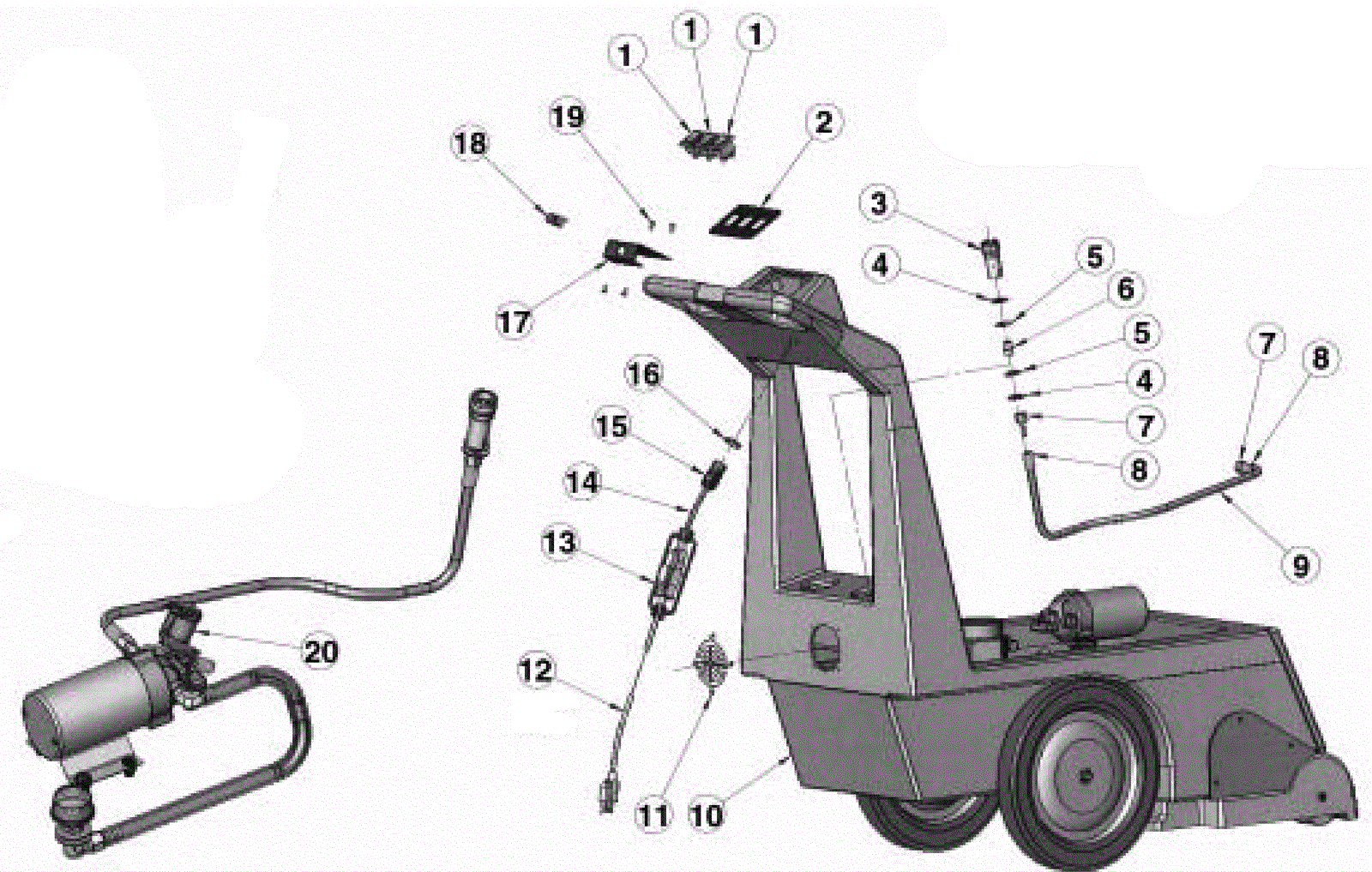

| # | Part | Description |
Req | Notes | Availability |
|---|
2 |
182-2371
|
Switch plate |
1 |
|
|
3 |
231-0066
|
1/4 inch female brass quick disconnect |
1 |
|
|
4 |
231-2895
|
Washer |
2 |
|
|
5 |
182-2372
|
Washer |
1 |
|
|
6 |
182-2373
|
Nipple |
1 |
|
|
7 |
182-2355
|
Swivel fitting |
2 |
|
|
8 |
182-2356
|
Ferrel |
2 |
|
|
9 |
182-2357
|
Hose (sold by the foot) |
1 |
|
|
10 |
182-2390
|
Base |
1 |
|
|
11 |
231-2878
|
Fan guard |
1 |
|
|
12 |
182-2374
|
50 foot power cord |
1 |
|
|
13 |
182-2237
|
Cord lock |
1 |
|
|
14 |
182-2375
|
48 inch pigtail |
1 |
|
|
15 |
182-2376
|
Strain relief cord (OBSOLETE) |
1 |
|
|
16 |
182-2377
|
Steel nut |
1 |
|
|
17 |
182-2378
|
Switch plate |
1 |
|
|
18 |
182-2379
|
Momentary switch (OBSOLETE) |
1 |
|
|
19 |
182-2380
|
Screw |
4 |
|
|
N/S |
182-2358
|
Solenoid valve (OBSOLETE) |
1 |
|
|
