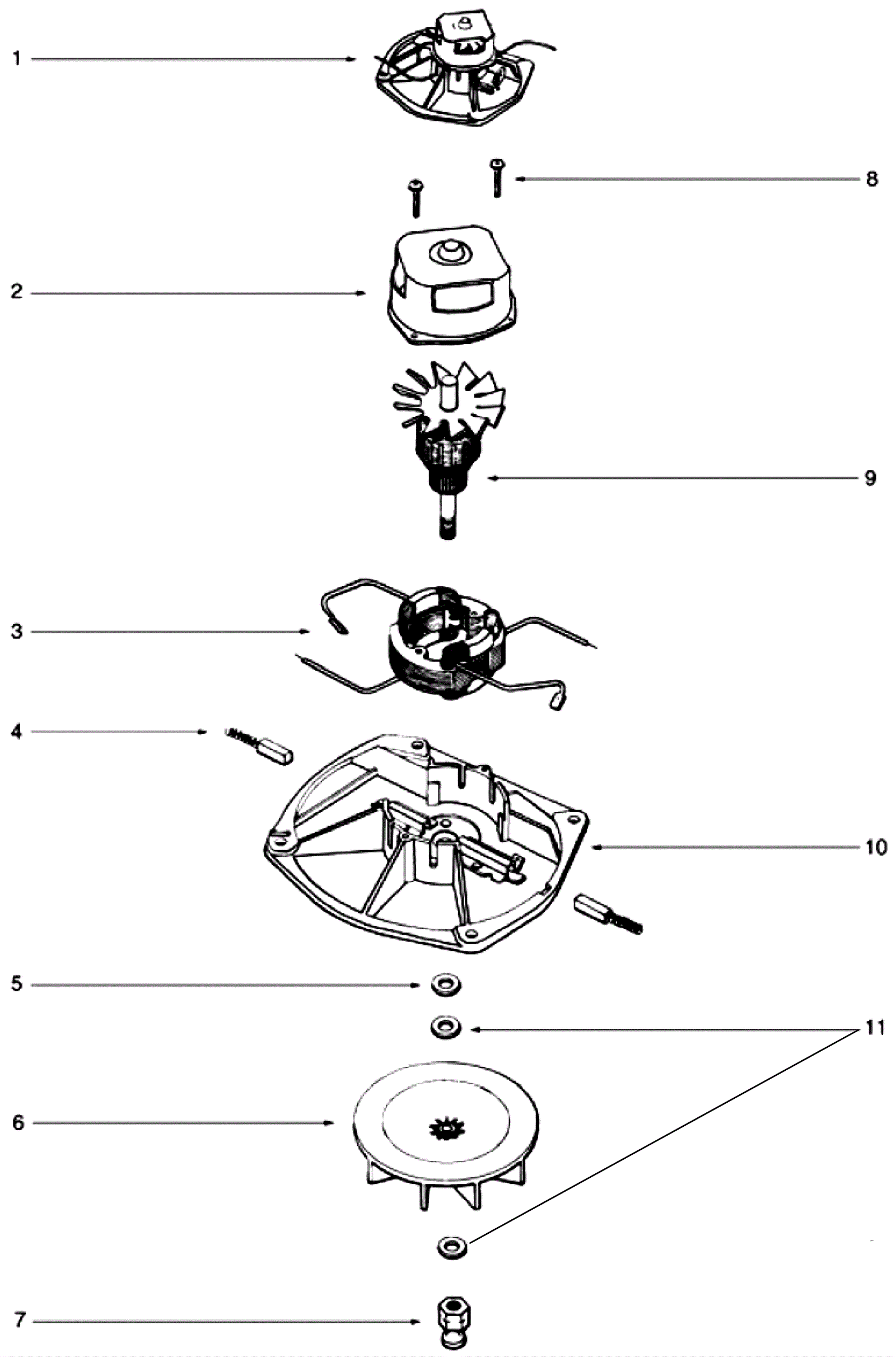

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
182-8137
|
Motor assembly |
1 |
|
|
2 |
182-0758
|
Fan end housing |
1 |
|
|
3 |
182-0760
|
Field assembly |
1 |
|
|
4 |
182-8139
|
Motor brush assembly |
1 |
|
|
5 |
182-8140
|
Washer package |
1 |
|
|
6 |
182-2098
|
Fan |
1 |
|
|
7 |
182-0072
|
Motor pulley |
1 |
|
|
8 |
182-0762
|
Screw - package of 10 |
1 |
|
|
9 |
182-0186
|
Armature & fan assembly (OBSOLETE) |
1 |
|
|
10 |
182-0187
|
Motor base assembly (OBSOLETE) |
1 |
|
|
11 |
182-8142
|
Washer (pkg of 10) |
1 |
|
|
