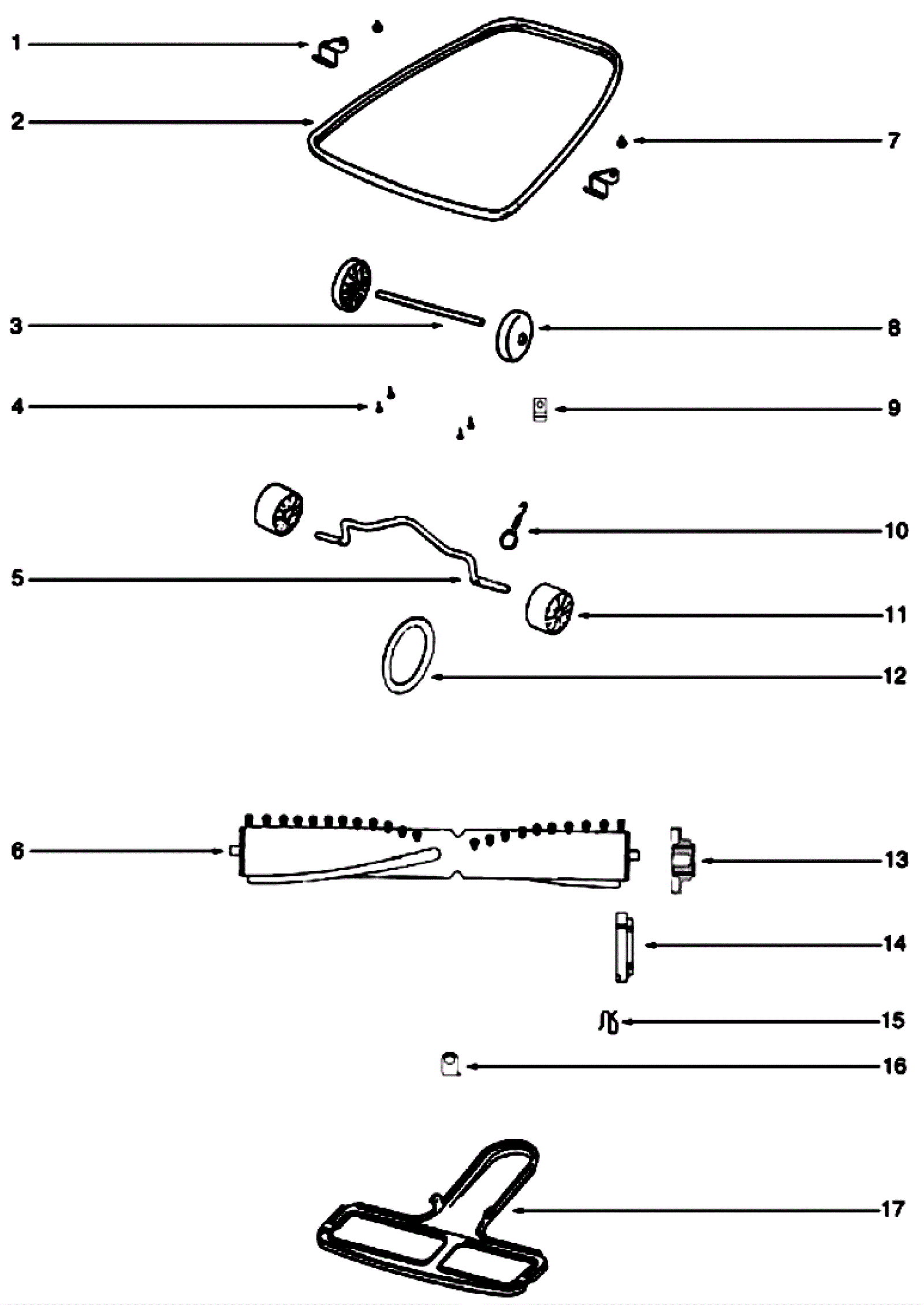

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
182-0769
|
Furniture guard clip (pkg of 6) |
1 |
|
|
2 |
182-0766
|
Furniture guard |
1 |
|
|
3 |
182-0767
|
Rear axle |
1 |
|
|
4 |
182-0034
|
Screw 10-14 x 1/2 pan head plastite |
1 |
|
|
5 |
182-0035
|
Front axle |
1 |
|
|
6a |
182-0098
|
12 inch disturbulator assembly with cap covers |
1 |
(OEM) |
|
6b |
991-8599
|
12 inch disturbulator assembly with cap covers(OBSOLETE) |
1 |
(NON-OEM) |
|
7 |
182-0771
|
Screw package |
1 |
|
|
8 |
182-0196
|
Rear wheel |
1 |
|
|
9 |
182-0768
|
Clip (pkg of 5) |
1 |
|
|
10 |
182-0046
|
Axle spring |
1 |
|
|
11 |
182-0047
|
Front wheel |
1 |
|
|
12 |
991-0026
|
Brush roll belt rubber (black) |
1 |
|
|
13 |
182-0220
|
Cap and bearing assembly |
1 |
|
|
14 |
182-0052
|
Cap |
1 |
|
|
15 |
182-0763
|
Wire clip |
1 |
|
|
16 |
182-0018
|
Bracket |
1 |
|
|
17 |
182-0041
|
12 inch bottom plate assembly |
1 |
|
|
