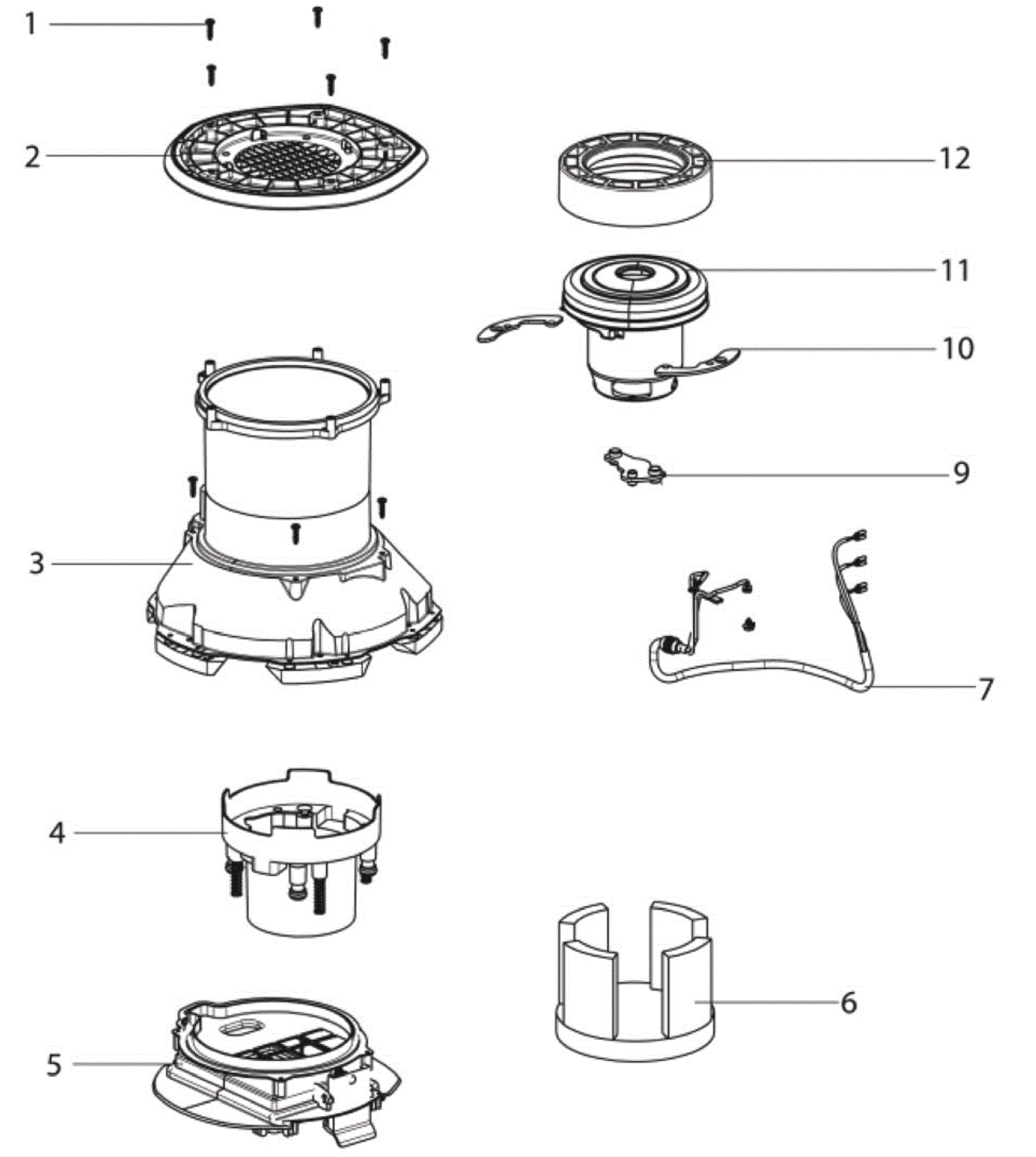

SC530A Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1 182-2119 Screw (pkg of 10) $2.35 1 usually ships 1-5 days
2 182-2125 Motor mount plate and gasket $15.90 1 usually ships 1-5 days
3 182-2126 Motor cylinder housing assembly $39.77 1 usually ships 1-5 days
4 182-2127 Motor piston housing assembly $10.60 1 usually ships 1-5 days
5 182-2128 Filter holder assembly $13.92 1 usually ships 1-5 days
6 182-2129 Sound absorber $23.20 1 usually ships 1-5 days
7 182-2131 Jumper assembly cord (OBSOLETE) $10.60 1 usually ships 6-16 days
8 182-2329 Screw $0.99 1 usually ships 6-16 days
9 182-2130 Motor isolator $3.81 1 usually ships 1-5 days
10 182-2132 Motor dampener $3.81 1 usually ships 1-5 days
11 182-2133 120V motor $119.13 1 usually ships 6-16 days
12 182-2134 Gasket $8.47 1 usually ships 1-5 days
