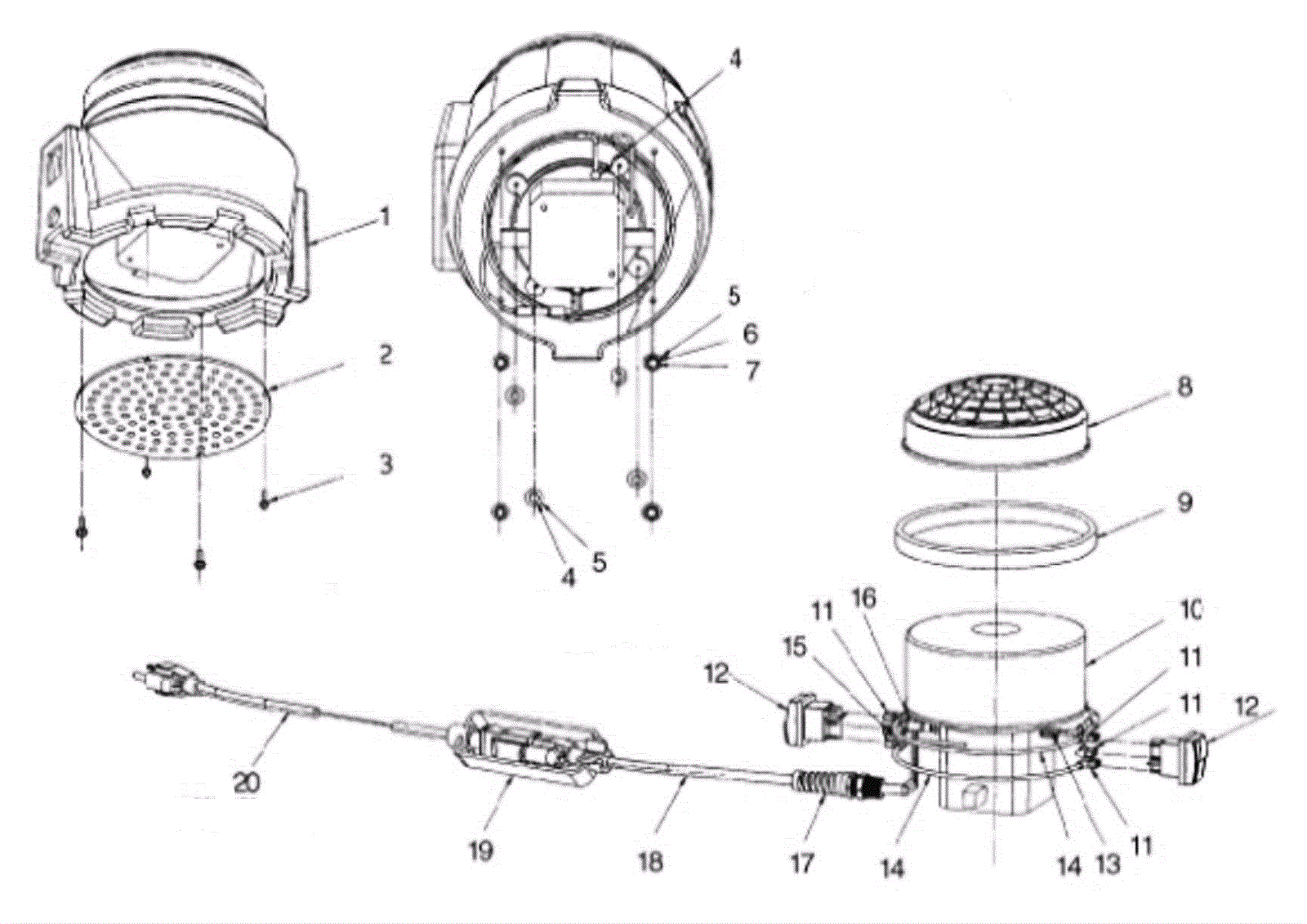

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
182-2224
|
Motor housing |
1 |
(Housing) |
|
2 |
182-8048
|
Exhaust filter |
1 |
|
|
3 |
182-2225
|
Screw #8 x 1/2mm |
4 |
(Screw) |
|
4 |
N/A
|
Not available |
4 |
(Fasner) |
|
5 |
182-2226
|
Washer #10 |
4 |
|
|
6 |
182-2227
|
Lock washer |
4 |
|
|
7 |
182-2228
|
Screw #10-32 x 5/8mm hex |
4 |
|
|
8 |
182-8047
|
Intake filter |
1 |
|
|
9 |
182-2229
|
O-ring |
1 |
(O-ring) |
|
10 |
N/A
|
Not available |
1 |
(Motor) |
|
11 |
182-2230
|
Terminal |
4 |
(Terminal) |
|
12 |
182-2231
|
Push button switch |
2 |
|
|
13 |
182-2232
|
Thermostat |
1 |
|
|
14 |
182-2233
|
Wire |
2 |
(Wire) |
|
15 |
182-2234
|
Terminal butt connector |
1 |
(Terminal connector) |
|
16 |
182-2235
|
Terminal ring |
1 |
(Terminal ring) |
|
17 |
182-2236
|
Strain relief |
1 |
|
|
18 |
182-8044
|
Pigtail cord |
1 |
|
|
19 |
182-2237
|
Cord lock |
1 |
|
|
20 |
182-8043
|
16/3 extension cord 50 foot |
1 |
|
|
