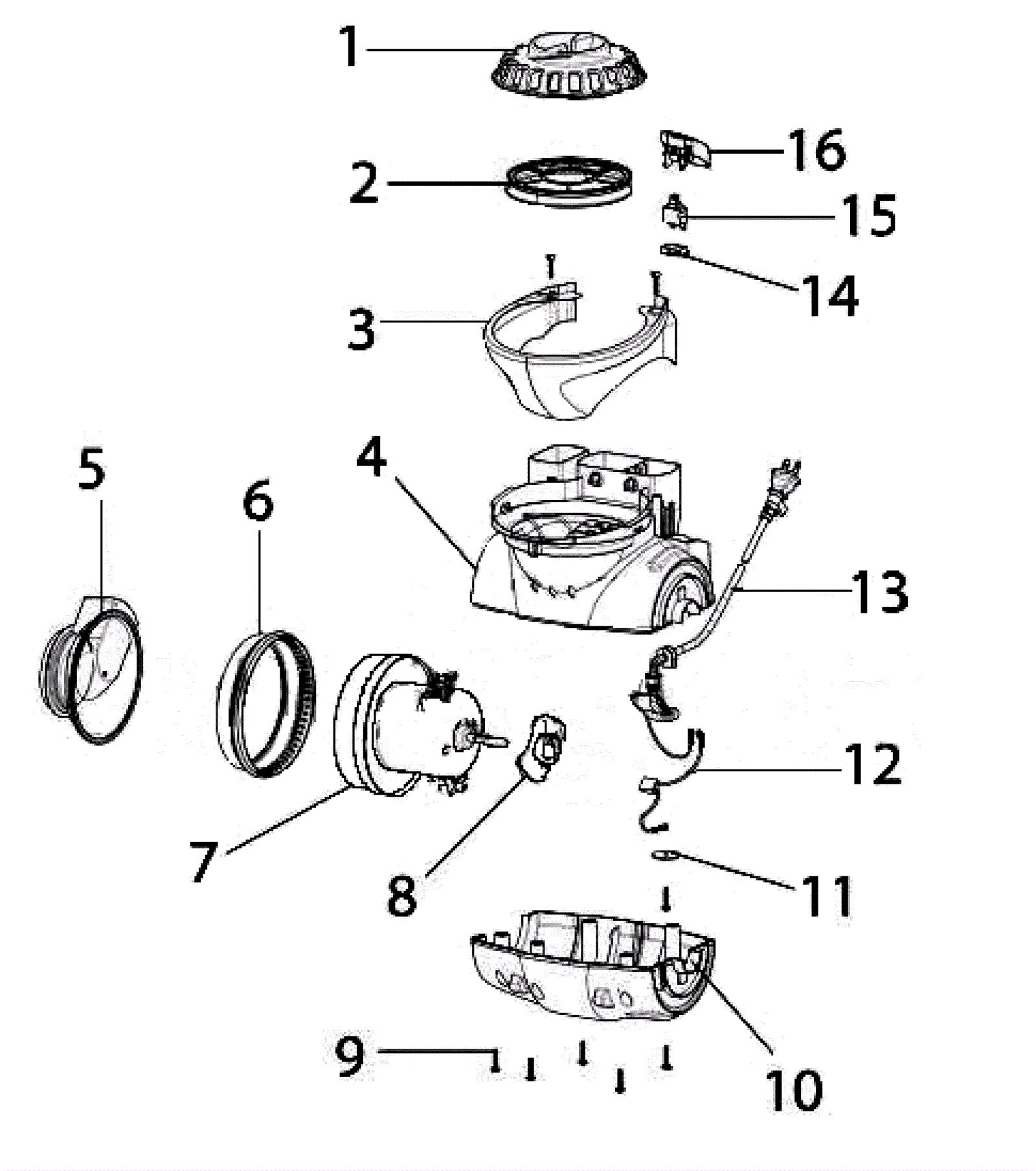

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
182-2287
|
Filter exhaust cover (OBSOLETE) |
|
|
|
2 |
182-2289
|
Filter assembly (OBSOLETE) |
|
|
|
3 |
N/A
|
Not available |
|
(fascia and graphics assembly) |
|
4 |
182-2291
|
Upper motor housing |
|
|
|
5 |
182-2292
|
Air tube |
|
|
|
6 |
182-2293
|
Motor gasket |
|
|
|
7 |
182-0381
|
Motor assembly |
|
|
|
8 |
182-2297
|
Motor mount bushing |
|
|
|
9 |
182-2298
|
Screw (pkg of 8) |
|
|
|
10 |
182-2299
|
Lower motor housing |
|
|
|
11 |
182-2121
|
Washer |
|
|
|
12 |
182-2300
|
Thermostat and terminal assembly |
|
|
|
13 |
N/A
|
Not available |
|
(supply cord and terminal assembly) |
|
14 |
182-2302
|
Switch seal |
|
|
|
15 |
182-1060
|
Switch assembly (OBSOLETE) |
|
|
|
16 |
182-2303
|
Switch pedal button (OBSOLETE) |
|
|
|
