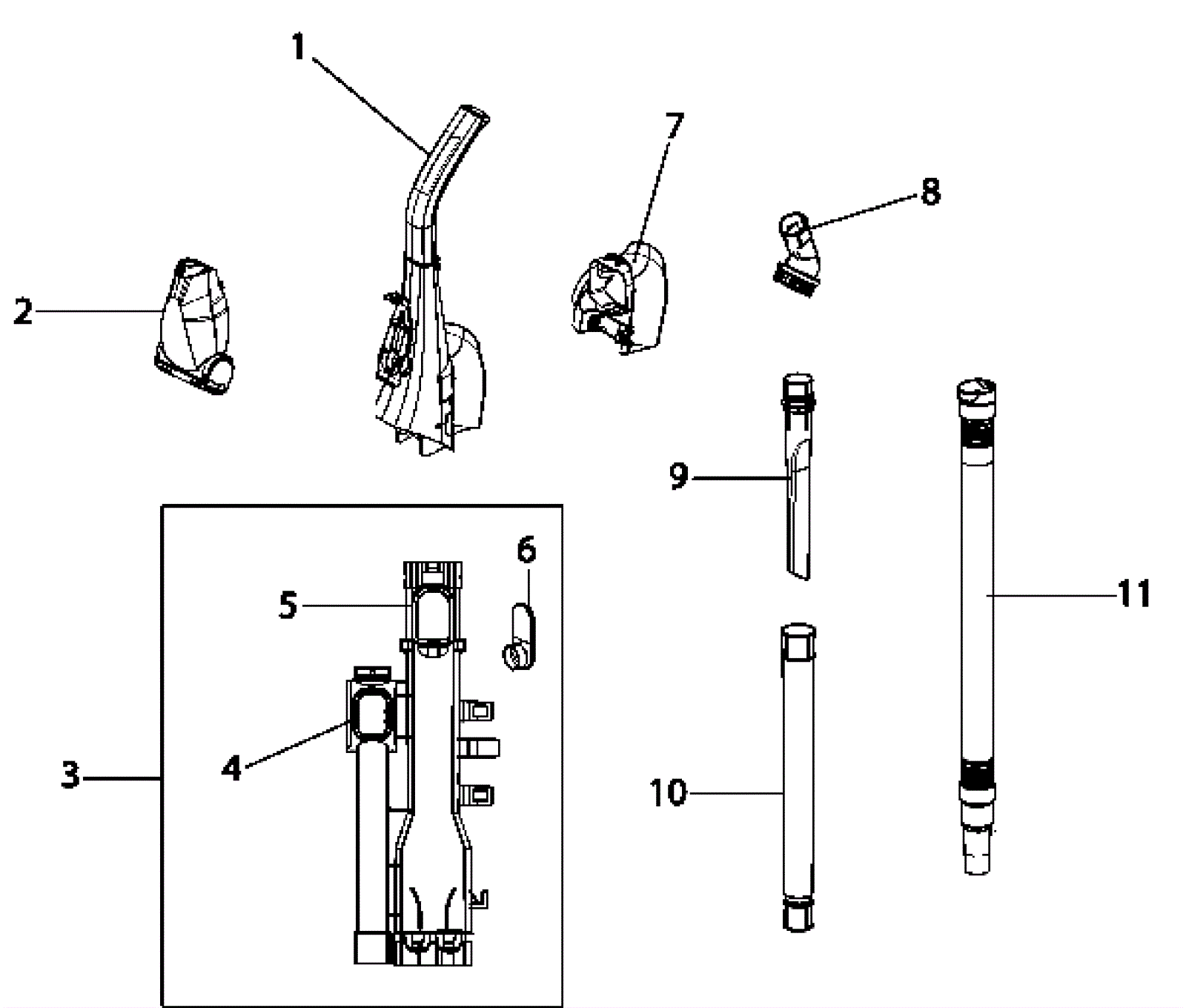

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
|
(upper handle assembly) |
|
2 |
182-1172
|
Turbo nozzle assembly |
|
|
|
3 |
182-2278
|
Backbone assembly |
|
(includes 4-6) |
|
4 |
182-2279
|
Cup inlet seal |
|
|
|
5 |
182-2280
|
Cup exhaust seal (OBSOLETE) |
|
|
|
6 |
182-2281
|
Cord quick release (OBSOLETE) |
|
|
|
7 |
N/A
|
Not available |
|
(hose retainer) |
|
8 |
N/A
|
Not available |
|
(brush assembly) |
|
9 |
182-2284
|
Crevice tool (OBSOLETE) |
|
|
|
10 |
182-2285
|
Wand (OBSOLETE) |
|
|
|
11 |
182-0380
|
Hose assembly |
|
|
|
N/S |
182-2286
|
Belt (OBSOLETE) |
|
|
|
