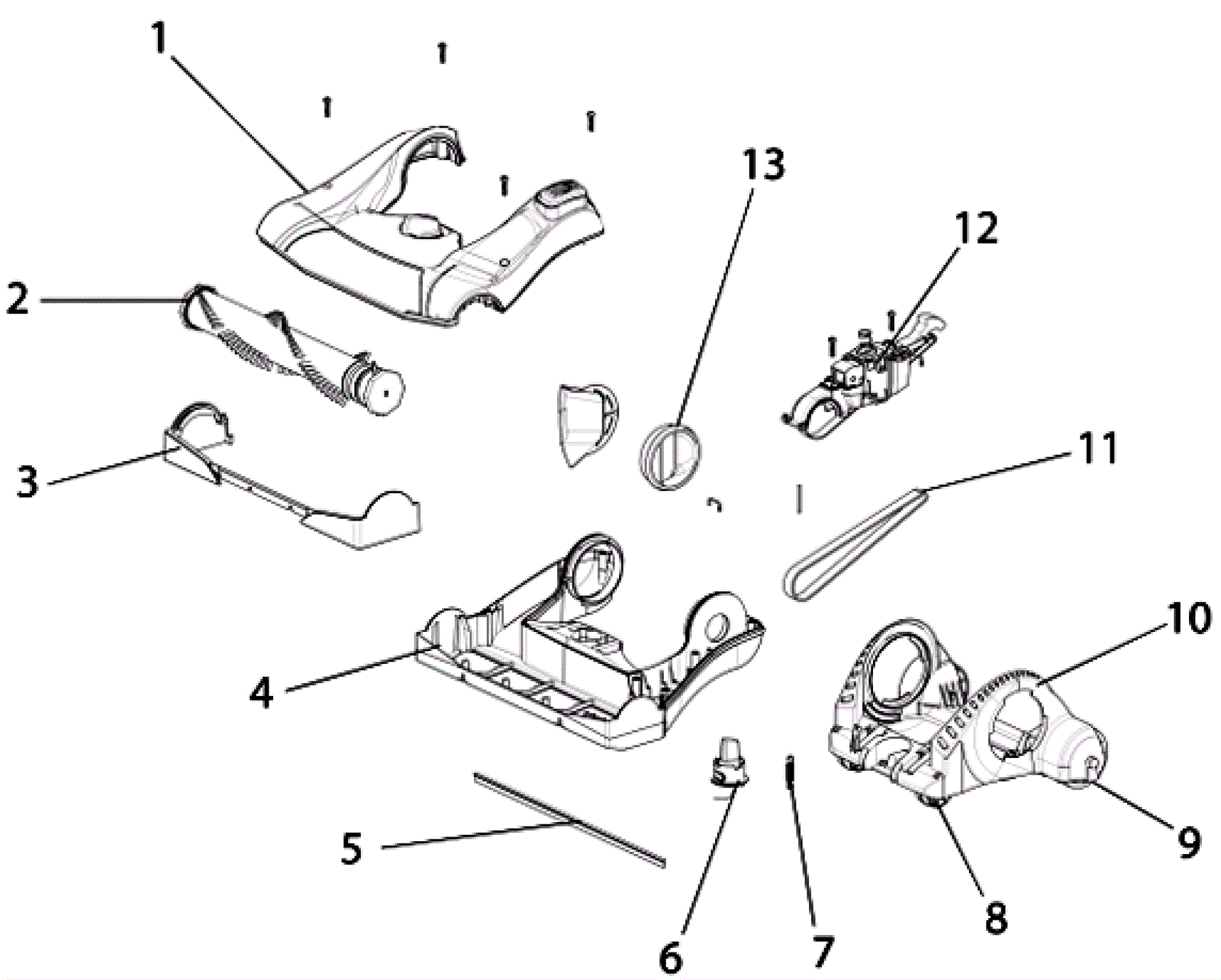

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
|
(hood assembly) |
|
2 |
182-2109
|
Brushroll assembly (OBSOLETE) |
|
|
|
3 |
182-2260
|
Furniture guard |
|
|
|
4 |
182-2261
|
Base (OBSOLETE) |
|
|
|
5 |
182-2262
|
Wiper blade (OBSOLETE) |
|
|
|
6 |
182-2263
|
Height adjustment knob (OBSOLETE) |
|
|
|
7 |
182-2264
|
Spring package |
|
|
|
8 |
N/A
|
Not available |
|
(front wheel w/overmold) |
|
9 |
N/A
|
Not available |
|
(rear wheel w/overmold) |
|
10 |
N/A
|
Not available |
|
(wheel carriage assembly) |
|
11 |
182-0379
|
Vacuum belt |
|
|
|
12 |
N/A
|
Not available |
|
(broo assembly) |
|
13 |
182-2271
|
Base elbow seal |
|
|
|
N/S |
182-2267
|
Handle release spring |
|
|
|
