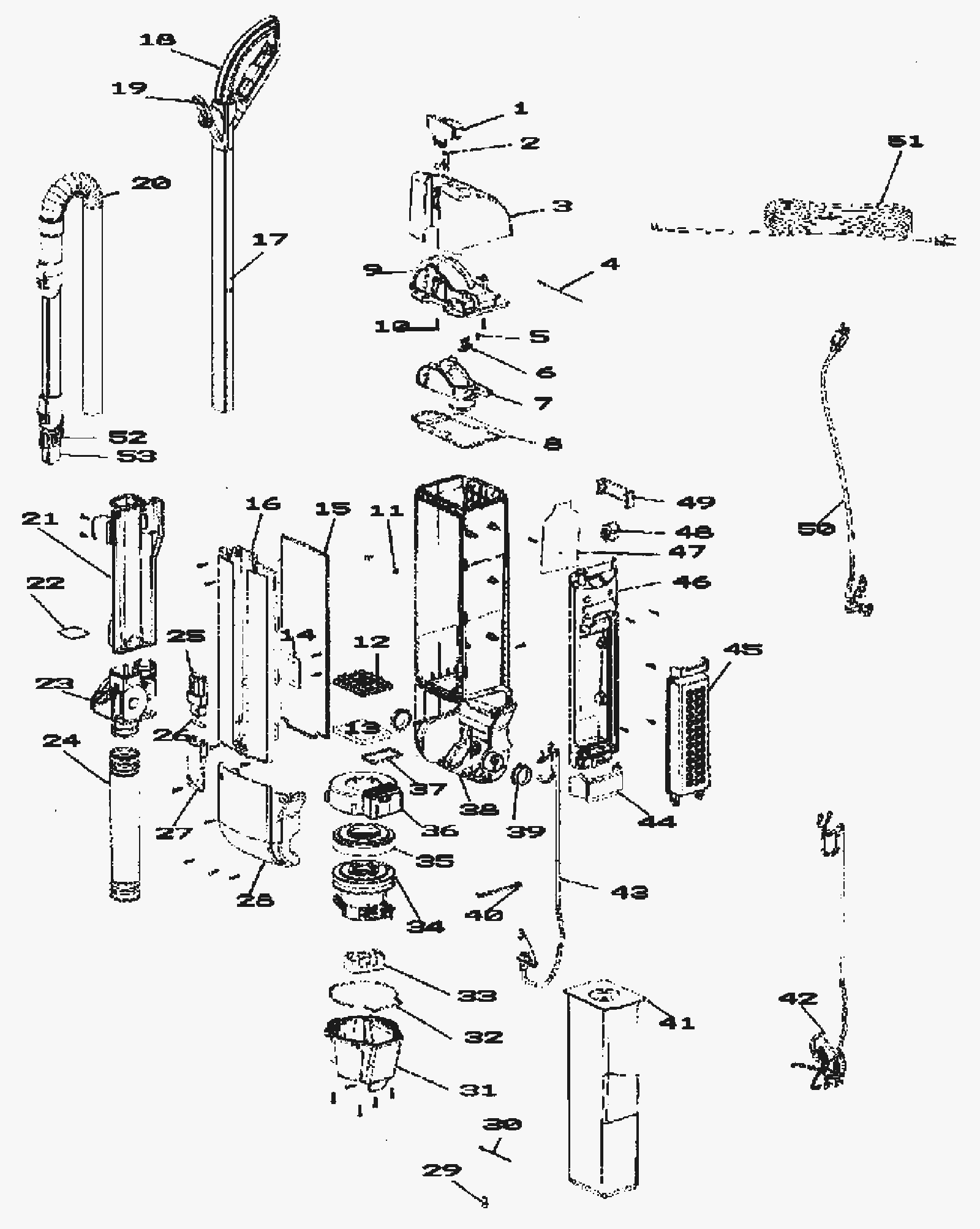

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
182-8192
|
Top cover latch |
|
|
|
2 |
182-8193
|
Top cover spring |
|
|
|
3 |
182-8194
|
Cover top |
|
|
|
4 |
182-8195
|
Top cover hing pin |
|
|
|
5 |
182-8196
|
Spring package |
|
|
|
6 |
182-8197
|
Bag Lever |
|
|
|
7 |
182-8198
|
Bag inlet |
|
|
|
8 |
182-8199
|
Top cover gasket |
|
|
|
9 |
182-8200
|
Inlet cover |
|
|
|
10 |
182-0836
|
Screw 10 pack (OBSOLETE) |
|
|
|
11 |
182-8201
|
Screws |
|
|
|
12 |
182-1020
|
Motor filter grill (OBSOLETE) |
|
|
|
13 |
182-1021
|
Filter |
|
|
|
14 |
182-8202
|
Plate clamp |
|
|
|
15 |
182-8203
|
Front cover gasket |
|
|
|
16 |
182-8204
|
Front cover |
|
|
|
17 |
182-8205
|
Upper handle assembly |
|
|
|
19 |
182-8206
|
Cord retainer |
|
|
|
20 |
182-2073
|
Hose and wand assembly |
|
|
|
21 |
182-8207
|
Dirt tube |
|
|
|
22 |
182-8208
|
Dirt tube gasket |
|
|
|
23 |
182-8209
|
Valve assembly |
|
|
|
24 |
182-8235
|
Hose connector |
|
|
|
25 |
182-8210
|
Lower cord hook adapter |
|
|
|
26 |
182-8211
|
Cord hook shaft |
|
|
|
27 |
182-8212
|
Lower cord hook |
|
|
|
28 |
182-8213
|
Motor cover |
|
|
|
29 |
998-0062
|
Wire nut (blue) |
|
|
|
30 |
997-2101
|
6 inch cable tie |
|
|
|
31 |
182-1044
|
Motor shroud |
|
|
|
32 |
182-8214
|
Motor shroud gasket |
|
|
|
33 |
182-8215
|
Suction motor |
|
|
|
34 |
182-1043
|
Motor assembly |
|
|
|
35 |
182-8216
|
Motor can gasket |
|
|
|
36 |
182-8217
|
Motor cover shroud |
|
|
|
37 |
182-8218
|
Motor cover shroud gasket |
|
|
|
38 |
182-8219
|
Rear housing assembly |
|
|
|
39 |
182-8220
|
Nylon bushing |
|
|
|
40 |
182-8221
|
Thermostat and terminal assembly |
|
|
|
41a |
182-8078
|
Vacuum bags style SD (pkg of 5) |
|
|
|
41b |
991-9065
|
Paper vacuum bags (pkg of 10) |
|
(NON-OEM) |
|
42 |
182-8222
|
Upper jumper cord |
|
|
|
43 |
182-8223
|
Motor jumper wire |
|
|
|
44 |
182-8224
|
HEPA shroud cover |
|
|
|
45 |
182-1019
|
HEPA filter |
|
|
|
46 |
182-8225
|
HEPA shroud (OBSOLETE) |
|
|
|
47 |
182-8226
|
Vulcanized paper |
|
|
|
48 |
182-8227
|
Rocker switch |
|
|
|
49 |
182-8228
|
Handle assembly |
|
|
|
50 |
182-8229
|
Supply cord assembly (OBSOLETE) |
|
|
|
51a |
182-1038
|
50 foot extension cord |
|
|
|
51b |
182-8230
|
30ft extension cord |
|
|
|
52 |
182-8231
|
Dust brush assembly |
|
|
|
53 |
182-8232
|
Wand tip |
|
|
|
N/S |
182-8233
|
Hardware |
|
|
|
