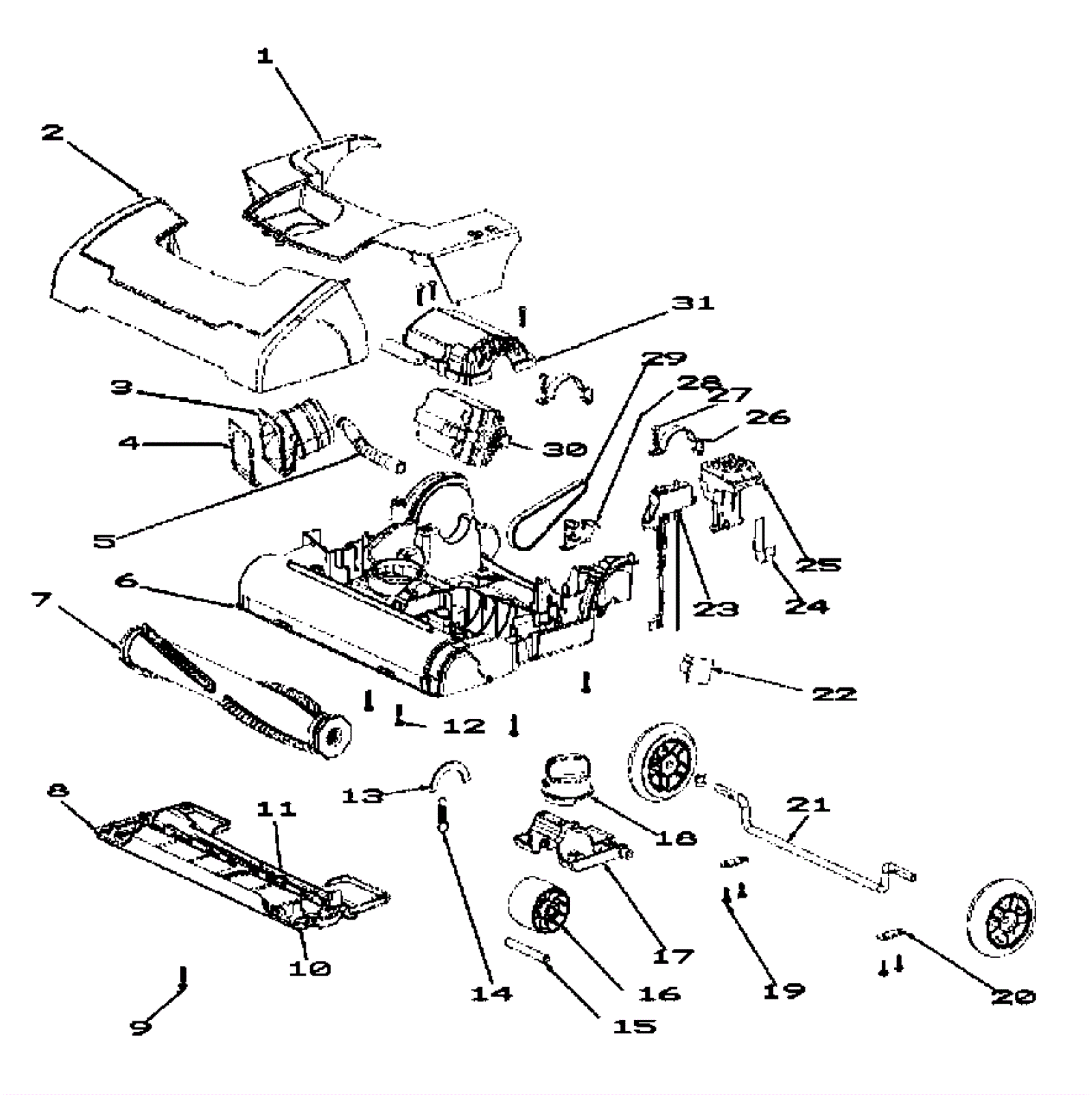

| # | Part | Description |
Req | Notes | Availability |
|---|
2 |
182-8170
|
Carrier and graphics guard |
|
|
|
3 |
182-8171
|
Base adapter |
|
|
|
4 |
182-8172
|
Adapter gasket |
|
|
|
5 |
182-8173
|
Cooling hose |
|
|
|
6 |
182-8174
|
Base assembly |
|
|
|
7a |
182-1056
|
Brushroll assembly |
|
|
|
7b |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
|
|
|
7c |
182-8175
|
End cap |
|
|
|
7d |
182-8176
|
Felt washer |
|
|
|
7e |
182-0158
|
Bearing |
|
|
|
7f |
182-8177
|
Pulley |
|
|
|
7g |
182-1056
|
Brushroll assembly |
|
|
|
7h |
182-8179
|
Bristle strips (OBSOLETE) |
|
|
|
7i |
182-1056
|
Brushroll assembly |
|
(Bearing retainer) (must purchase 7a and 8) |
|
7j |
182-0159
|
Retaining ring |
|
|
|
8 |
182-1057
|
Soleplate (includes felt and gasket) |
|
|
|
9 |
182-8180
|
Screw package |
|
|
|
10 |
182-1057
|
Soleplate (includes felt and gasket) |
|
(Soleplate gasket) (only available with 8) |
|
11 |
182-1057
|
Soleplate (includes felt and gasket) |
|
(Soleplate gasket) (only available with 8) |
|
12 |
182-0836
|
Screw 10 pack (OBSOLETE) |
|
|
|
13 |
182-8181
|
Felt solepate |
|
|
|
14 |
182-0586
|
Spring (pkg of 10) |
|
|
|
15 |
182-8182
|
Front axle |
|
|
|
16 |
182-8183
|
Front wheel |
|
|
|
17 |
182-8234
|
Carriage wheel |
|
|
|
18 |
182-8184
|
Height adjustment knob |
|
|
|
19 |
182-0034
|
Screw 10-14 x 1/2 pan head plastite |
|
|
|
20 |
182-0033
|
Axle clamp |
|
|
|
21 |
182-8185
|
Rear wheel and axle assembly (OBSOLETE) |
|
|
|
22 |
182-8186
|
Vulcanized paper |
|
|
|
23 |
182-8187
|
Retainer assembly (OBSOLETE) |
|
|
|
24 |
182-1037
|
Handle release spring |
|
|
|
25 |
182-1028
|
Handle release |
|
|
|
26 |
182-8188
|
Motor clamp |
|
|
|
27 |
182-0836
|
Screw 10 pack (OBSOLETE) |
|
|
|
28 |
182-8189
|
Micro switch and bracket |
|
|
|
29 |
182-8072
|
Poly v belt |
|
|
|
30 |
182-8190
|
Brushroll motor assembly |
|
|
|
31 |
182-8191
|
Brushroll motor cover |
|
|
|
