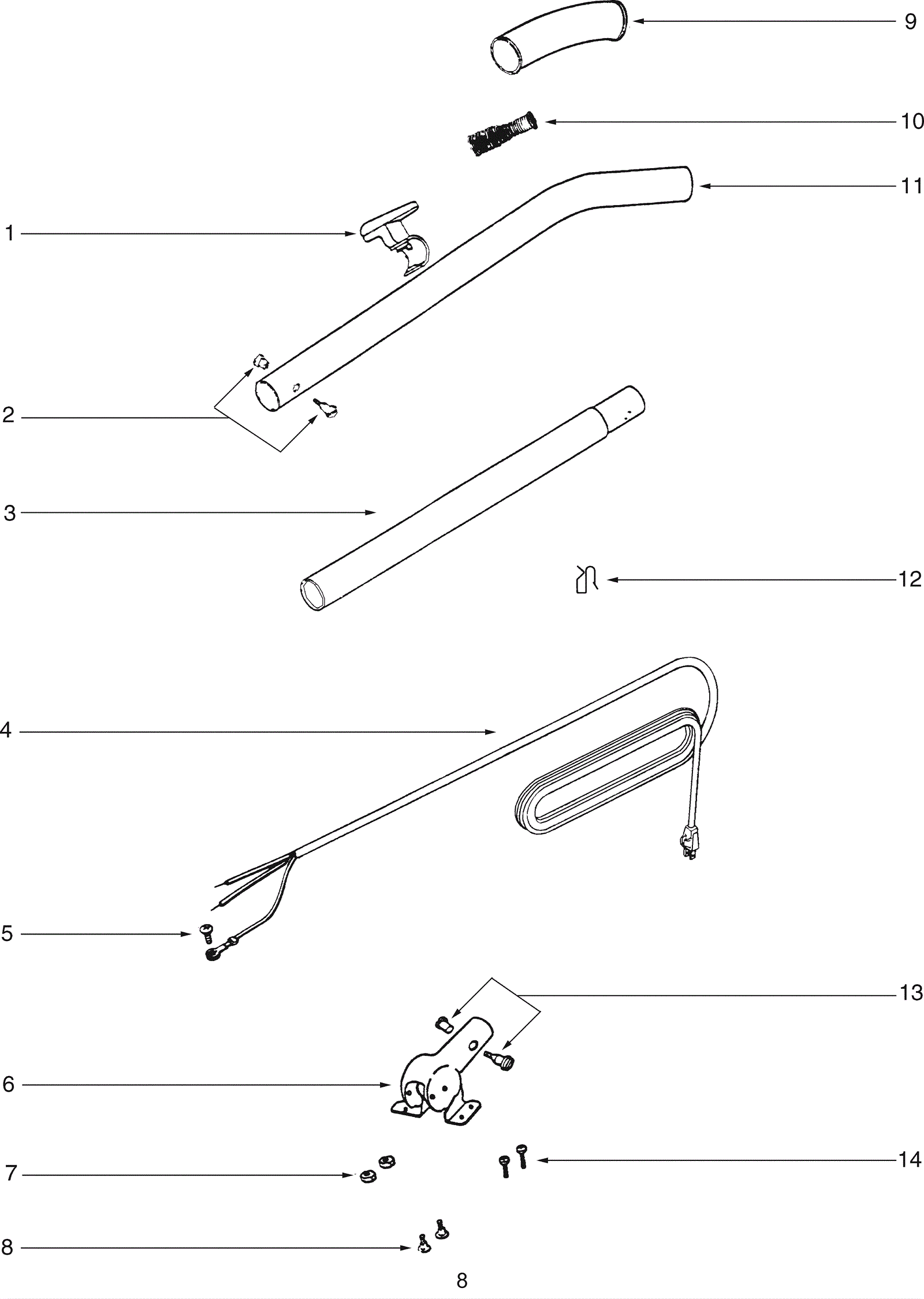

SANITAIRE SC689A Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 182-0100 Cord hook set $5.00 ships same day
2 182-0075 Screw and nut assembly $5.00 ships same day
3 182-1041 Lower handle tube $11.39 usually ships 1-5 days
4 182-0077 18/3 power cord 50 foot (black) $30.24 usually ships 10-27 days
5 182-0008 Motor mounting screw $4.19 usually ships 6-16 days
6 182-0079 Handle socket assembly $9.49 ships same day
7 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 ships same day
8 182-0081 Bolt 10-24 x 5/8 carriage head $5.00 ships same day
9 182-0082 Handle grip $4.19 usually ships 5-16 days
10 182-0140 Strain relief $0.90 usually ships 6-16 days
11 182-0074 Upper handle assembly $20.06 (includes 9) usually ships 6-16 days
12 182-0763 Wire clip $3.59 usually ships 6-16 days
13 182-0075 Screw and nut assembly $5.00 ships same day
14 182-0008 Motor mounting screw $4.19 usually ships 6-16 days
