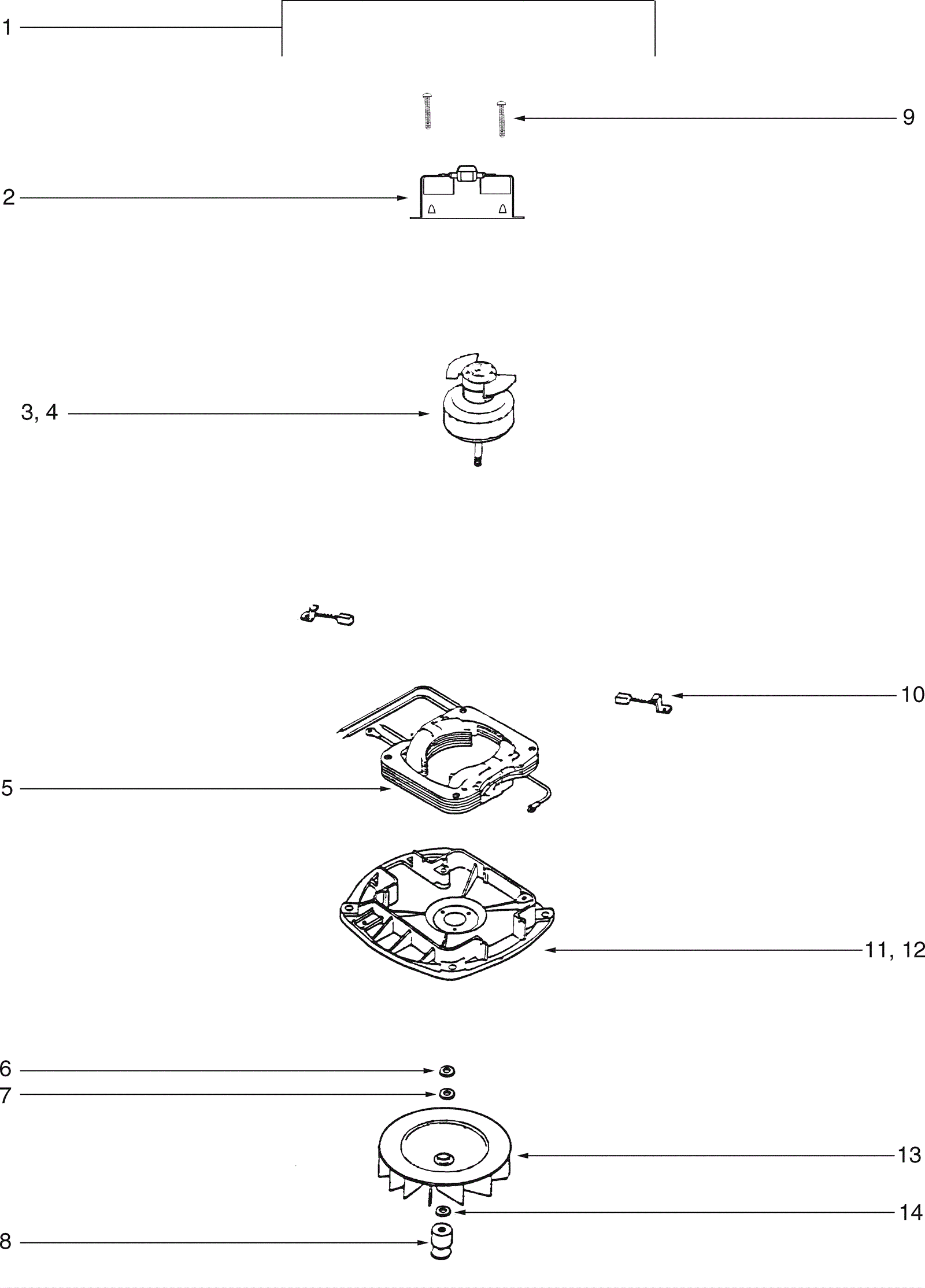

SANITAIRE SC689A Brush Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1 182-0185 Motor assembly $58.04 ships same day
2 182-0758 Fan end housing $6.16 usually ships 1-5 days
3 182-0186 Armature & fan assembly (OBSOLETE) $31.01 (includes 4) usually ships 12-20 days
4 182-0759 Fan $3.95 usually ships 1-5 days
5 182-0760 Field assembly $29.03 usually ships 1-5 days
6 182-0761 Washer $2.71 usually ships 1-5 days
7 182-0070 Washer 5/16 x 5/8 x 15/16 fiber flat (pkg of 10) $4.09 ships same day
8 182-0072 Motor pulley $6.03 usually ships 12-20 days
9 182-0762 Screw - package of 10 $5.53 usually ships 1-5 days
10a 182-0200 Carbon brush assembly (OBSOLETE) $3.32 usually ships 1-5 days
10b 991-5102 Carbon brush assembly (sold each) (OBSOLETE) $2.80 (NON-OEM) usually ships 1-5 days
11 182-0187 Motor base assembly (OBSOLETE) $18.62 (includes 12) usually ships 12-20 days
12 182-0065 Bearing $11.54 usually ships 12-20 days
13a 182-0071 Fan $8.97 ships same day
13b 272-9477 Pulley and fan kit (green) $12.88 (lifetime warranty) ships same day
14 182-0070 Washer 5/16 x 5/8 x 15/16 fiber flat (pkg of 10) $4.09 ships same day
