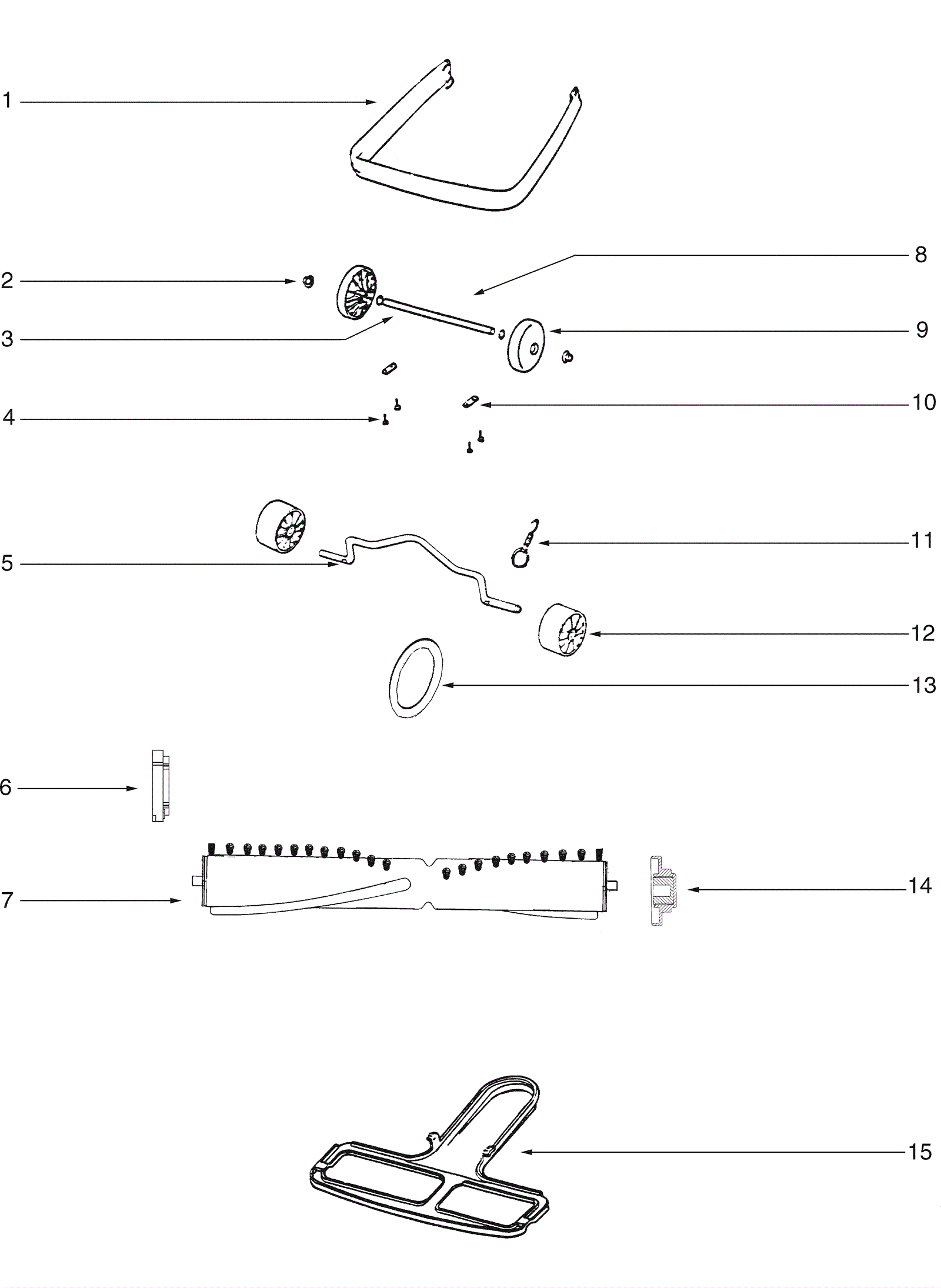

SANITAIRE SC689A Brush and Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 182-0141 12 inch bumper $5.00 ships same day
2 182-0032 Push nut $2.58 ships same day
3 182-0043 Rear axle $4.54 usually ships 6-16 days
4 182-0034 Screw 10-14 x 1/2 pan head plastite $4.19 ships same day
5 182-0035 Front axle $5.38 usually ships 6-16 days
6 182-0052 Cap $1.50 usually ships 6-16 days
7a 182-0098 12 inch disturbulator assembly with cap covers $24.99 usually ships 6-16 days
7b 991-8599 12 inch disturbulator assembly with cap covers (OBSOLETE) $12.24 usually ships 8-20 days
8 182-0142 Wheel and axle assembly w/ hardware $7.23 (includes 2, 3 and 9) usually ships 6-16 days
9 182-0045 Rear wheel $2.99 usually ships 6-16 days
10 182-0033 Axle clamp $4.18 usually ships 6-16 days
11 182-0046 Axle spring $5.00 ships same day
12 182-0047 Front wheel $1.89 usually ships 6-16 days
13 991-0026 Brush roll belt rubber (black) $0.60 ships same day
14 182-0220 Cap and bearing assembly $6.58 usually ships 6-16 days
15 182-0041 12 inch bottom plate assembly $17.57 ships same day
