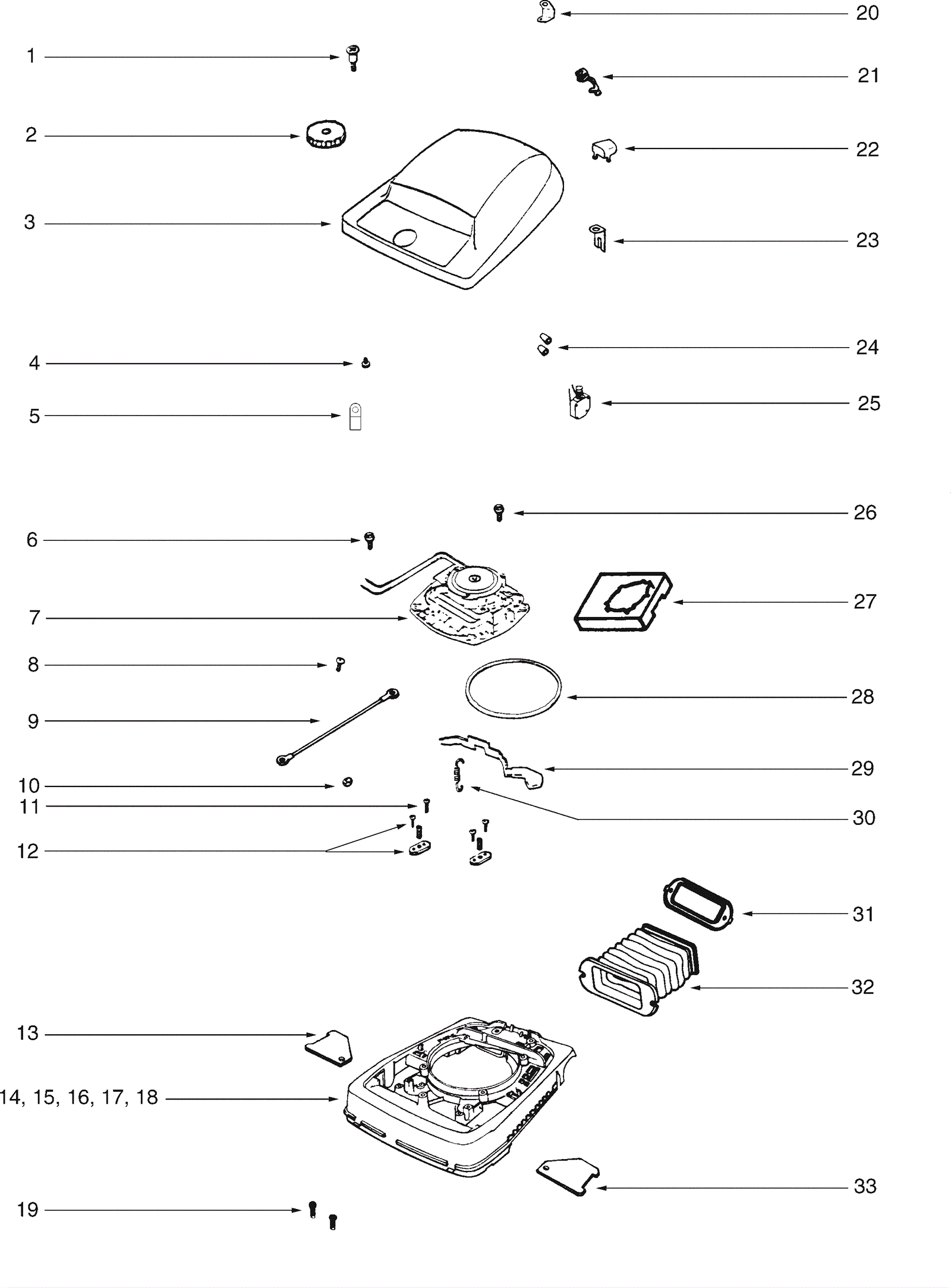

SANITAIRE SC689A Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 182-0003 Shoulder screw $14.01 ships same day
2 182-0004 Knob $4.61 usually ships 12-20 days
3 182-0181 Hood assembly $35.46 usually ships 12-20 days
4 182-0034 Screw 10-14 x 1/2 pan head plastite $4.61 ships same day
5 182-0755 Cable clamp $3.95 usually ships 1-5 days
6 182-0012 Screw 10-14 x .88 phillips pan plastite $1.05 ships same day
7 182-0185 Motor assembly $58.04 ships same day
8 999-0269 Screw 10-24 x 5/8 pan head phillips zinc plated $0.99 ships same day
9 182-0129 Wire and terminal assembly $3.29 usually ships 12-20 days
10 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 ships same day
11 182-0008 Motor mounting screw $4.61 ships same day
12 182-0013 Screw and clamp assembly $3.45 ships same day
13 182-0014 Wheel cover $3.37 usually ships 12-20 days
14 182-0015 Base assembly $34.09 (includes 15-18) usually ships 12-20 days
15 182-0115 Right side cam $4.61 usually ships 12-20 days
16 182-0116 Left side cam $2.72 ships same day
17 182-0029 Cam rivet $1.05 ships same day
18 N/A Not available Call for price (washer) usually ships 3-26 days
19 182-0016 Screw $0.90 usually ships 12-20 days
20 182-0018 Bracket $3.29 usually ships 1-5 days
21 182-0017 Strain relief bushing $5.71 usually ships 12-20 days
22 182-0183 Switch button $3.29 usually ships 12-20 days
23 182-0020 Switch clip $4.03 usually ships 12-20 days
24 998-0062 Wire nut (blue) $0.99 ships same day
25 182-0019 Push switch $8.25 ships same day
26 182-0012 Screw 10-14 x .88 phillips pan plastite $1.05 ships same day
27 182-0757 Separator assembly $9.23 usually ships 1-5 days
28 182-0010 Motor seal gasket $0.99 ships same day
29 182-0023 Foot pedal $4.71 usually ships 12-20 days
30 182-0011 Foot pedal spring $4.09 ships same day
31 182-0025 Bellows clamp $7.81 ships same day
32 182-0026 Bellows $23.84 usually ships 12-20 days
33 182-0014 Wheel cover $3.37 usually ships 12-20 days
