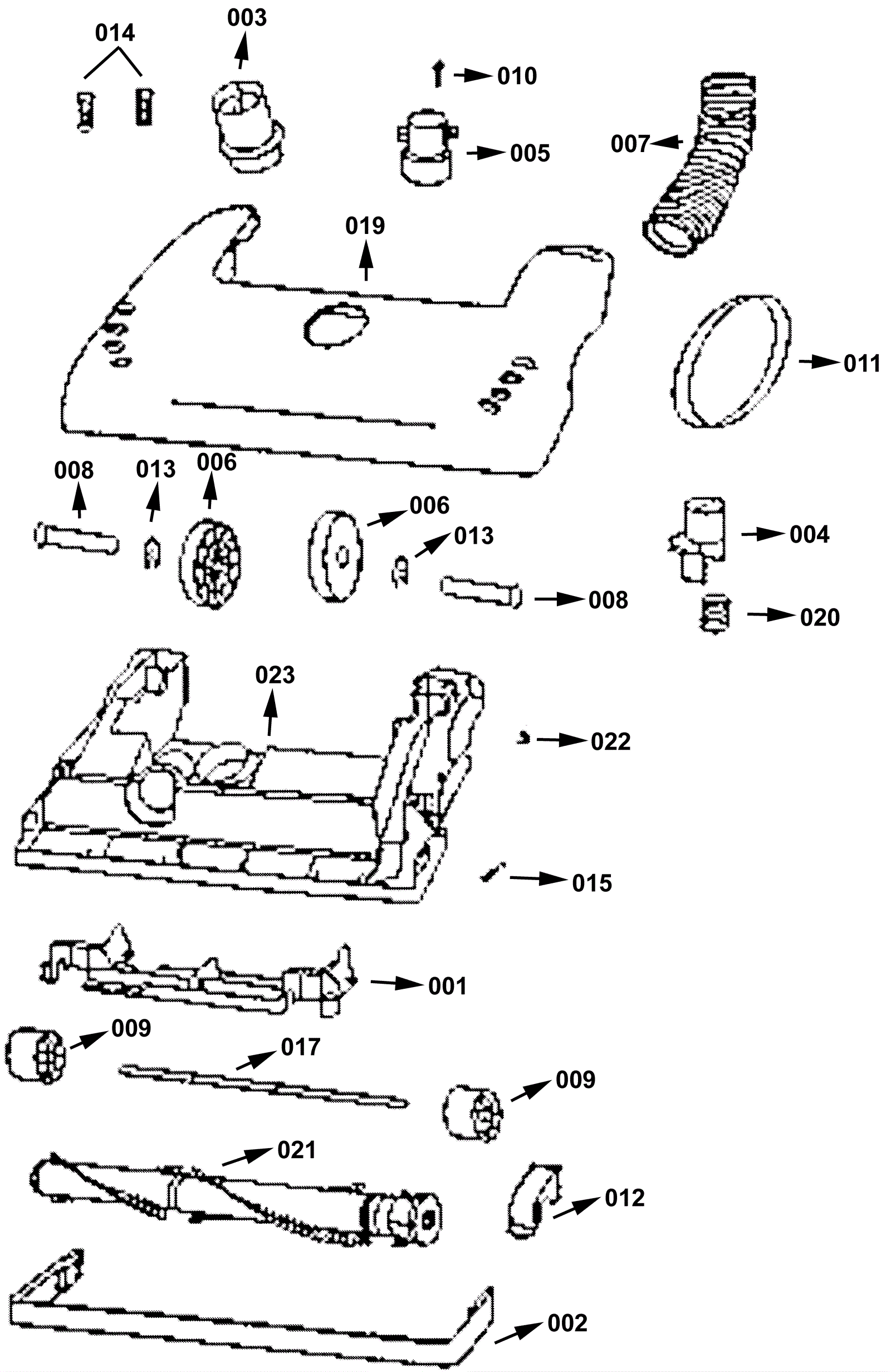

VICTRY WHRLWND 4481 Base Assembly

#PartDescriptionPriceReqNotesAvailability
001 182-0654 Wheel carriage $7.25 usually ships 1-5 days
002 182-0576 Furniture guard $6.60 usually ships 1-5 days
003 182-0655 Operator height adjustment $1.57 usually ships 1-5 days
004 182-0190 Handle release (OBSOLETE) $1.98 usually ships 6-16 days
005 182-1049 Handle and hose assembly - Cart $122.75 usually ships 1-5 days
006 182-0683 Rear wheel $1.57 usually ships 1-5 days
007 182-0579 Compression hose (purch) (OBSOLETE) $3.16 usually ships 6-16 days
008 182-0580 Rear axle $5.50 usually ships 6-16 days
009 182-0657 Front wheel $3.66 usually ships 6-16 days
010 182-0583 Screw (OBSOLETE) $3.95 usually ships 6-16 days
011 182-0363 Belt (Style U) (OBSOLETE) $3.95 usually ships 6-16 days
012 182-0584 Belt cap and gasket package $7.25 usually ships 1-5 days
013 182-0585 Retaining ring $3.29 usually ships 6-16 days
014 182-0016 Screw $0.99 usually ships 6-16 days
015 182-0586 Spring package $7.81 ships same day
017 182-0660 Wheel axle $1.57 usually ships 1-5 days
019 182-7958 Hood packaged assembly $17.81 usually ships 1-5 days
020 182-0589 Compression spring $3.95 usually ships 1-5 days
021 182-7959 Cart brushroll assembly $17.15 usually ships 1-5 days
022 182-0613 Push on nut $1.89 usually ships 1-5 days
023 182-7960 Base packaged assembly $37.61 usually ships 1-5 days
N/S 182-0587 Felt gasket $3.95 usually ships 1-5 days
N/S 182-7957 Gasket $3.95 usually ships 1-5 days
