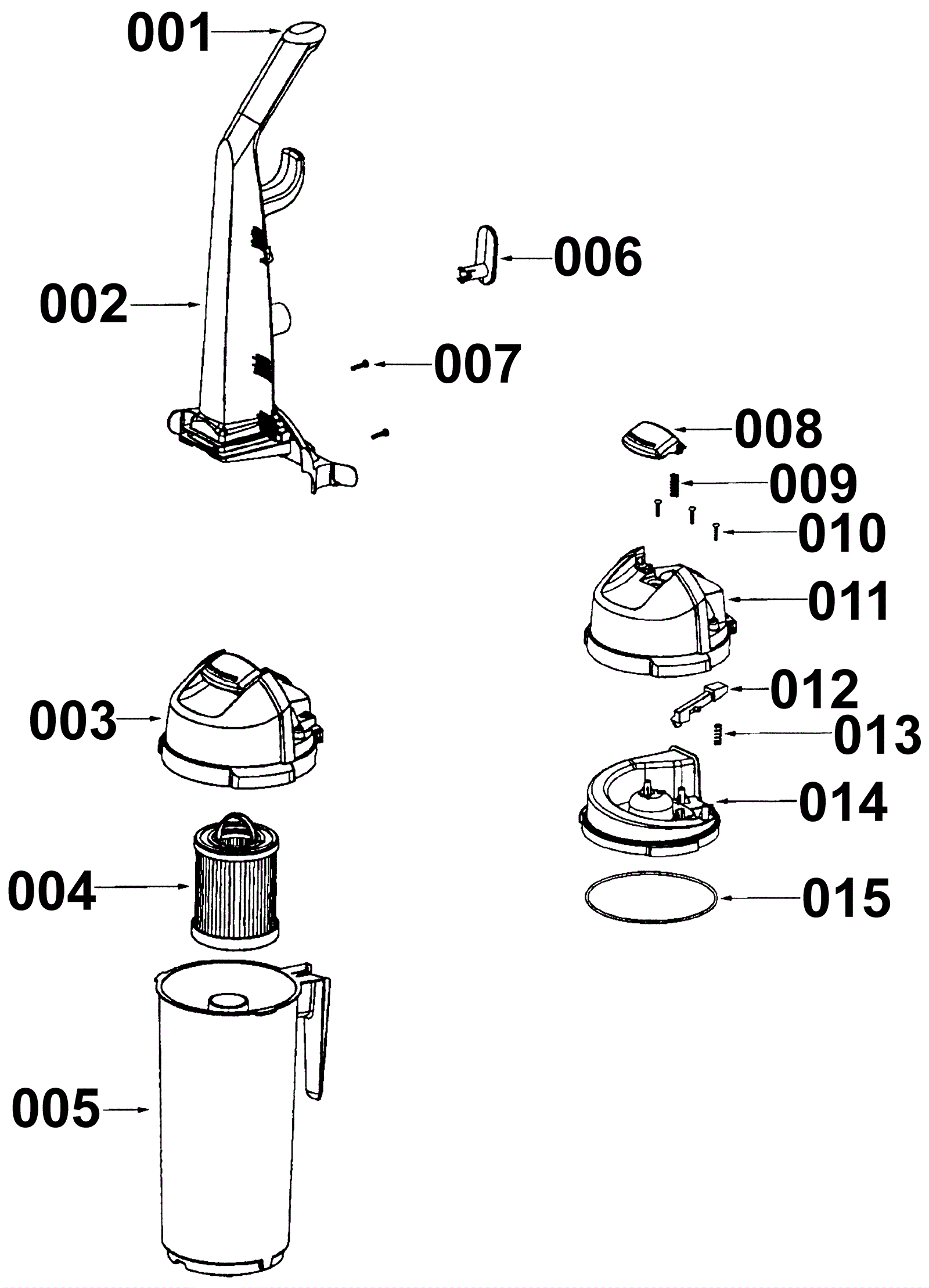

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
182-0879
|
Motor hub gasket |
|
|
|
002 |
182-0880
|
Handle assembly |
|
|
|
003a |
182-0881
|
Cyclone assembly complete |
|
|
|
003b |
182-0882
|
Cyclone assembly complete |
|
For 5843AV model |
|
003c |
182-0883
|
Bag cover latch |
|
For 5810A model (N/S) |
|
003d |
182-0884
|
Cyclone assembly complete |
|
For 5844AV model |
|
004 |
182-0875
|
Sound foam |
|
|
|
006 |
182-0885
|
Cord hook |
|
|
|
007 |
182-0838
|
Screw 10 pack |
|
10 pack |
|
008 |
182-0886
|
Latch |
|
|
|
009 |
182-0887
|
Latch spring (OBSOLETE) |
|
5 pack |
|
010 |
182-0836
|
Screw 10 pack (OBSOLETE) |
|
10 pack |
|
011a |
182-0881
|
Cyclone assembly complete |
|
Top cover (Only available in assembly) |
|
011b |
182-0882
|
Cyclone assembly complete |
|
Top cover (Only available in assembly) |
|
011c |
182-0888
|
Top cover |
|
For 5844AV model |
|
012 |
182-0889
|
Catch |
|
|
|
013 |
182-0890
|
Spring |
|
5 pack |
|
014 |
182-0891
|
Cyclone |
|
|
|
015 |
182-0892
|
Gasket |
|
|
|
N/S |
182-0893
|
Torsion spring |
|
For 5810A model |
|
N/S |
182-0894
|
Bag cover assembly |
|
For 5810A model |
|
N/S |
182-0543
|
Paper bag (pkg of 18) (OBSOLETE) |
|
|
|
N/S |
182-0895
|
Bag cover gasket |
|
For 5810A model |
|
N/S |
182-0733
|
Paper bag style LS (pkg of 10) (OBSOLETE) |
|
(OEM) |
|
N/S |
991-8542
|
Eureka LS style vacuum bag (pkg of 3) |
|
(NON-OEM) |
|
