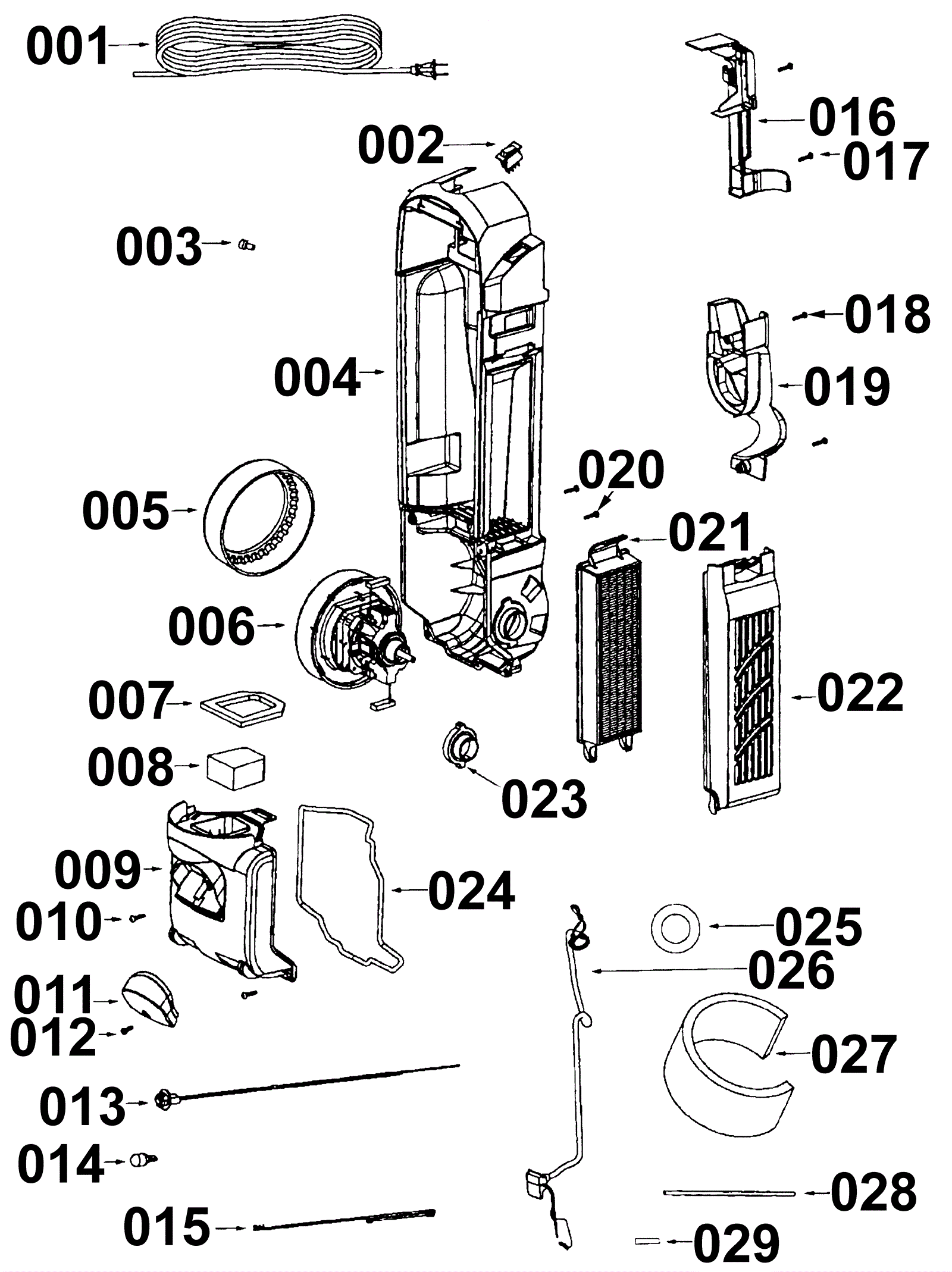

Main Body Assembly

#PartDescription ReqNotesAvailability
001 182-0896 Supply cord and terminal assembly
002 182-0622 Rocker switch
003 998-0062 Wire nut (blue)
004 182-0897 Rear housing assembly
005 182-0843 Clamp
006 182-0806 Motor assembly (OBSOLETE)
007 182-0898 Motor screen
008 182-0856 Pre-motor filter
009 182-0899 Motor cover assembly
010 182-0836 Screw 10 pack (OBSOLETE)
011 182-0900 Headlamp lens
012 182-0838 Screw 10 pack
013 182-0862 Headlight socket and terminal
014 182-0901 Headlight lamp
015 182-0864 Thermostat
016 182-0902 Switch cover assembly
017 182-0836 Screw 10 pack (OBSOLETE)
018 182-0836 Screw 10 pack (OBSOLETE)
019 182-0903 Lower tool pack
020 182-0904 Screw package
021 182-0746 Washable hepa filter
022 N/A Not available (Filter)
023 182-0871 Motor support bushing
024 182-0872 Motor cover gasket (OBSOLETE)
025 182-0879 Motor hub gasket
026 182-0874 Jumper cord (OBSOLETE)
027 182-0876 Sound foam
028 182-0877 Tube
029 182-0787 Belt
N/S 182-7953 Brush roll assembly
N/S 182-0733 Paper bag style LS (pkg of 10) (OBSOLETE) (OEM)
N/S 991-8542 Eureka LS style vacuum bag (pkg of 3) (NON-OEM)
N/S 182-0543 Paper bag (pkg of 18) (OBSOLETE) (OEM)
N/S 991-9063 Paper vacuum bags (pkg of 3) (NON-OEM)
N/S 182-7953 Brush roll assembly
